Important screen displays
The receiver functions are controlled by a microprocessor and extensive software.
The following explanations are intended to improve understanding of all proce-
dures and to minimise the risk of mistakes.

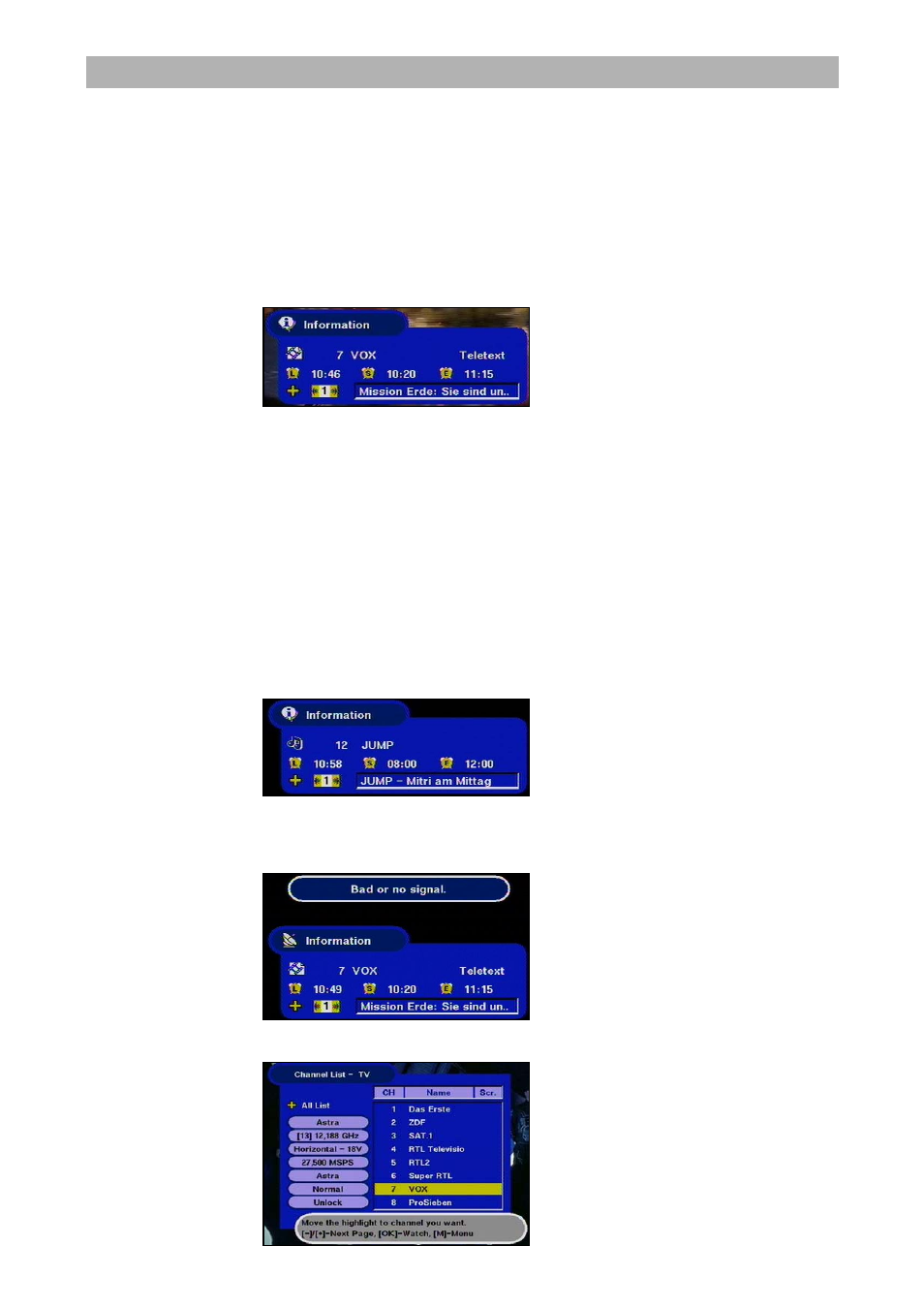

TV channel identifier
The channel identifier is displayed for several seconds every time the channel is
changed or by pressing the
O
button.
The
I
indicates that a channel is received
even if no picture can be seen (e.g. radio).
The film symbol indicates a TV channel
with the selected programme shown next
to it and whether teletext is received. The current time, start time and end time of
the current programme are shown on the next line provided these data are trans-
mitted. The + in the third line stands for the programme selection from the main
programme list. If the favourite list is selected, you will see the "apple" symbol at
this point. This is followed by the set sound reproduction mode (depending on the
direction of the symbolised sound waves, mono left, mono right or stereo can be
set, the digit indicates the number of sound channels). The programme title is
shown in the box on the right.
Teletext
Transmitted teletext is processed from the receiver - also for encrypted signals - for
the television set.
Radio channel indicator
The identifier for the set radio channel has
the same configuration. A music note
appears in the upper right-hand corner
indicating a radio channel. Programme
times and text are displayed only if the
corresponding data are transmitted with
the signal.
Error message
"Bad or no signal" indicates that there is a
fault in the reception system or in the re-
ceiver settings or the transponder is not
transmitting. Instead of the
I
the channel
identifier shows a satellite antenna to-
gether with the message "bad or no
signal". Check the SAT-IF connection and
the LNB configuration. As an aid, refer to
the list of service settings provided at the end of this User's Guide.
TV programme list
Press the
i
button to show the pro-
gramme list. A + for the main programme
list or the "apple" symbol is indicated at
the top left. The list can be changed by
pressing the button again. Information
relating to the received satellites, the
polarisation, the symbol rate, scrambling,
