7
Assembly

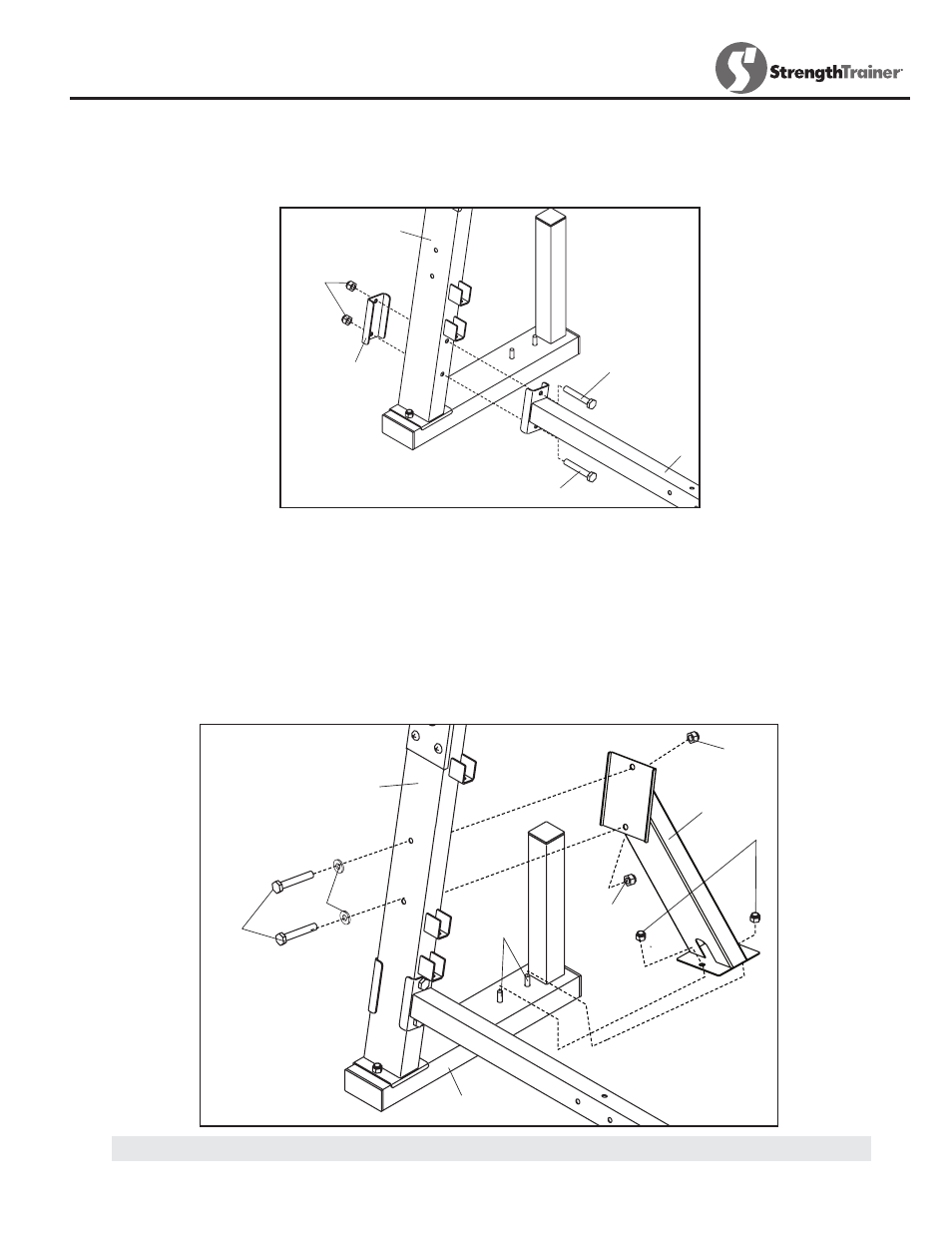

Step 2
Attach the crossbar (5) to the right upright (4) using two M10X120mm bolts (14), an upright
plate (15), and two M10 nylon locknuts (58).
Repeat to complete the assembly for the left upright (not shown).
4
58
1 4
14
15
5
Step 3
Attach the right rear support (7) to the right stabilizer (2) using the indicated M10X60mm car-
riage bolts (29), two washers (43), and two M10 nylon locknuts (58).
Secure the right rear support (7) to the right upright (4) using two M10X65mm bolts (30), two
M10 washers (43), and two M10 nylon locknuts (58).
Repeat to complete the assembly for the left side (not shown).
4
29
2
30
43
58
58
58
7
Figure 2
Figure 3
NOTE : Hand tighten bolts and nylon nuts until machine is fully assembled.
