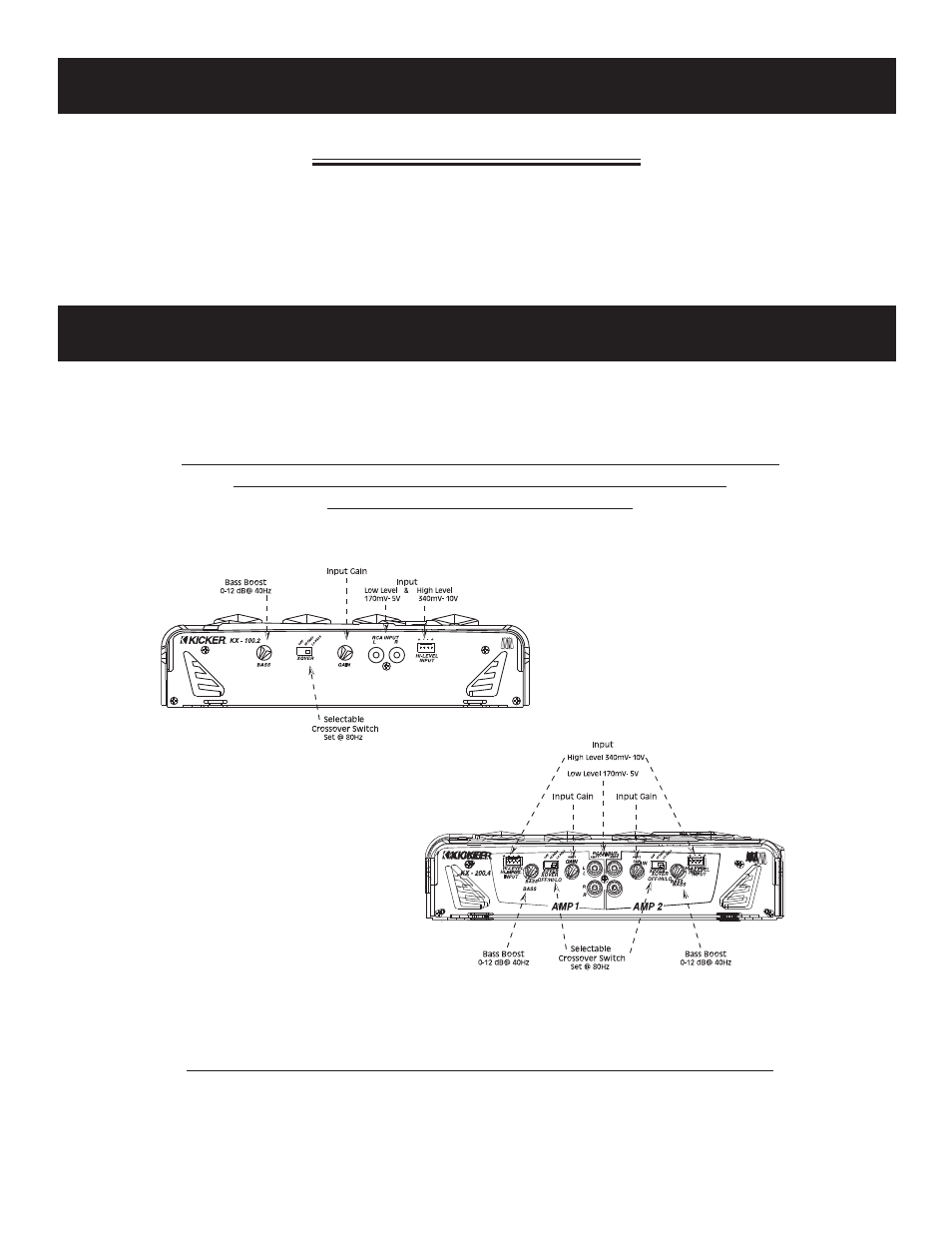

Adjusting Amplifier Controls

On your Kicker amplifier there are rotary controls and switches on the end panel. These controls ensure the relia-

bility and performance of the amplifier, so they need to be set correctly. If you are using a KX150.4 you will have
two sets of rotary controls and switches. One set controls AMP1 and one set controls AMP2.

BEFORE TURNING ON THE SYSTEM FOR THE FIRST TIME, MAKE SURE THAT

THE ROTARY CONTROLS ON THE SIDE OF THE AMPLIFIER ARE

TURNED FULLY COUNTER-CLOCKWISE!

CROSSOVER SWITCHES

NEVER CHANGE THE CROSSOVER SWITCH SETTING WITH THE SYSTEM ON!

The switches located on the end panel next to the RCA jacks are for setting the internal crossover. In the OFF

position the amplifier passes a full range signal to the speakers. Use the LO PASS position when connected to a
subwoofer. The HI PASS position should be selected when connected to any speakers which you do not want to
receive sub-bass information.

KX100.2 & KX200.4 Technical Manual

Version 2.0

Page 9

KX 200.4

KX 100.2

Model

Fuse Size

Wire Size

KX75.2

15A

8 GA

KX150.4

30A

8 GA

Specifications subject to change without prior notice.

Fuse Ratings
