GND
#
^
CENTER UNIT
(CD receiver, etc.)
Left input Right input
RCA cable ground terminal
8 English
RCA cable*
Connection
Power control wire
(Blue/ White)

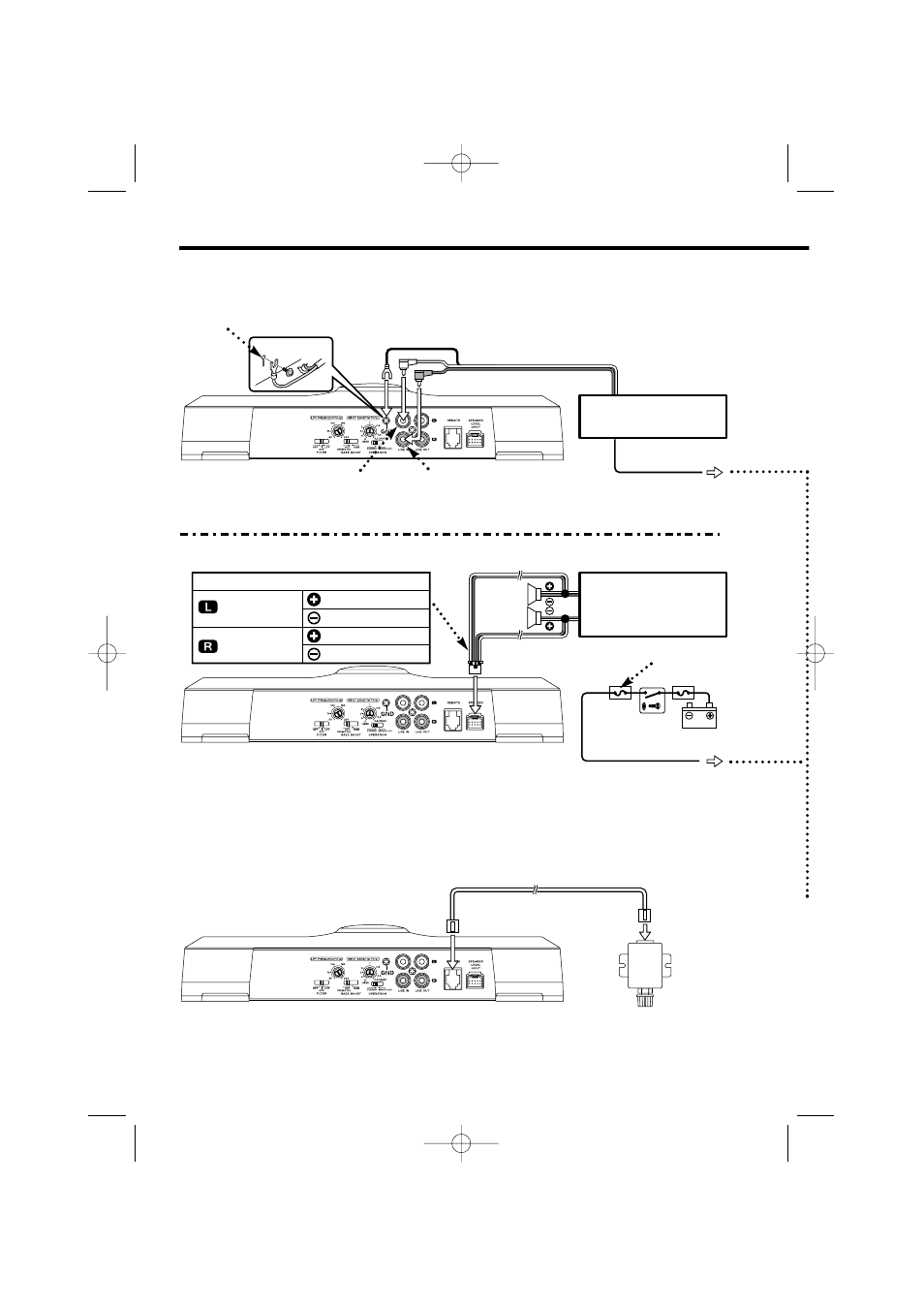

■ RCA cable or Speaker level input connection
Genuine-accessory car
stereo (No line output
center unit etc.)
ACC
Battery
Car fuse box
White
White/Black
Gray
Gray/Black
Left
Right
Cable Color of the connector
(RCA cable Connections)
(Speaker level input Connections)
■ Remote cable connection (KAC-7251 only)
Remote cable
Remote controler
