Keys Fitness Health Trainer HT440EL - Manual (Page 9)

9
72
69
3
Assembly

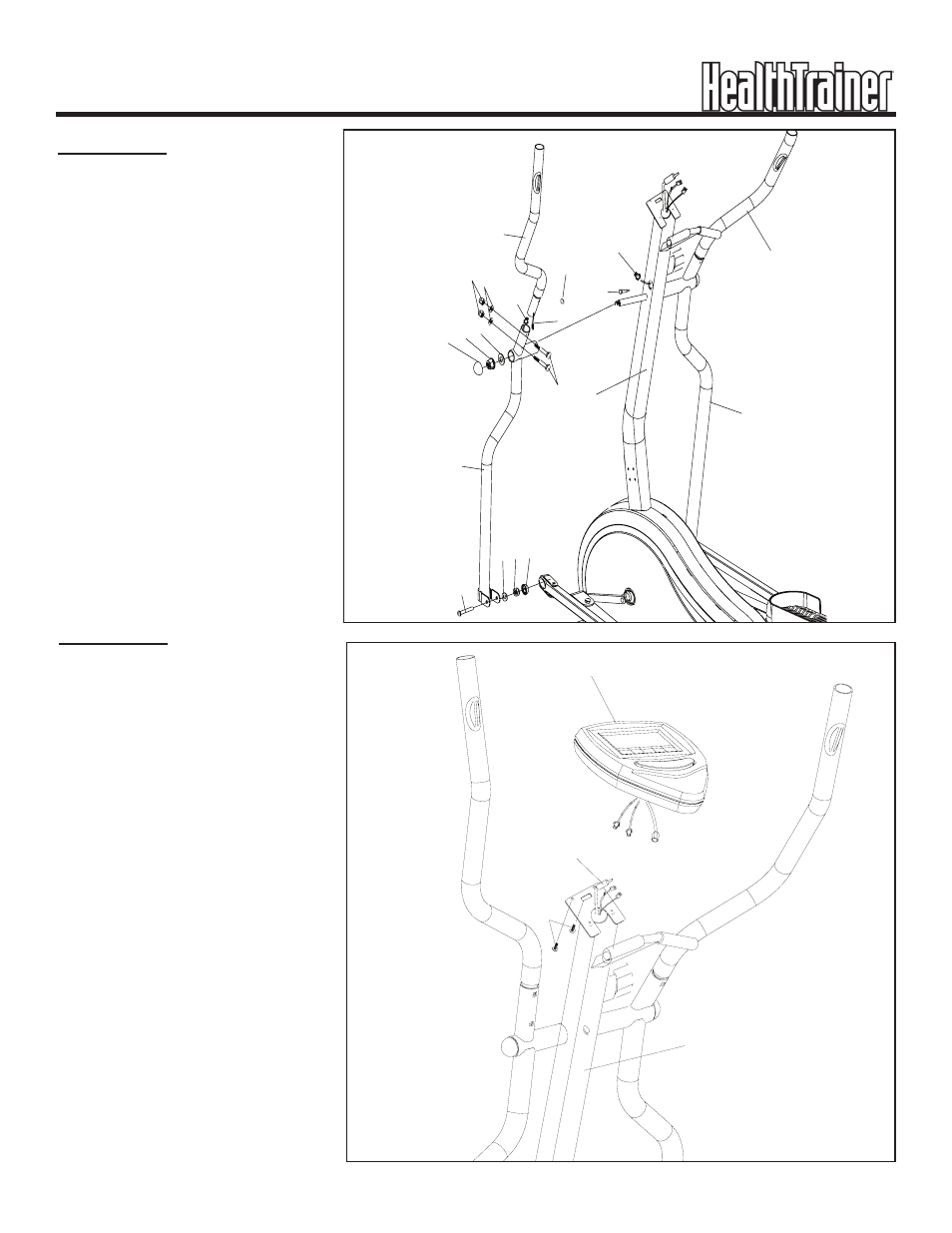

FIGURE 5
Step 1:
Install the left sleeve (6a) to
the axle on the upright tube
(3) and secure with washer
(46), nut (45), and nut cap
(44). Connect the pulse wire
(42) with the pulse wire (87).
Connect pulse wire (88) to
the second connector on the
pulse wire (87). Connect
the upper handlebar (7a)
to the lower left handlebar
(6a) with carriage bolts (62),
washers (63) and cap nuts
(64). Attach the pedal tube
to the lower left handlebar
(6a) with nut caps (67).
Finally, insert plastic cap (85)
into the opening as shown.
Repeat on right side.
40
27 36 71
6a
7a
63
46
62
64
45
44
6b
7b
87
42
3
67
85
88
Figure 5
Figure 6
FIGURE 6
Step 1:
Connect the sensor wire (72)
and the pulse wires to the con-
sole (9). Attach the console
(9) to the top of the upright
tube (3) and secure it using
screws (69) attached to the
console.
