Assembly
8

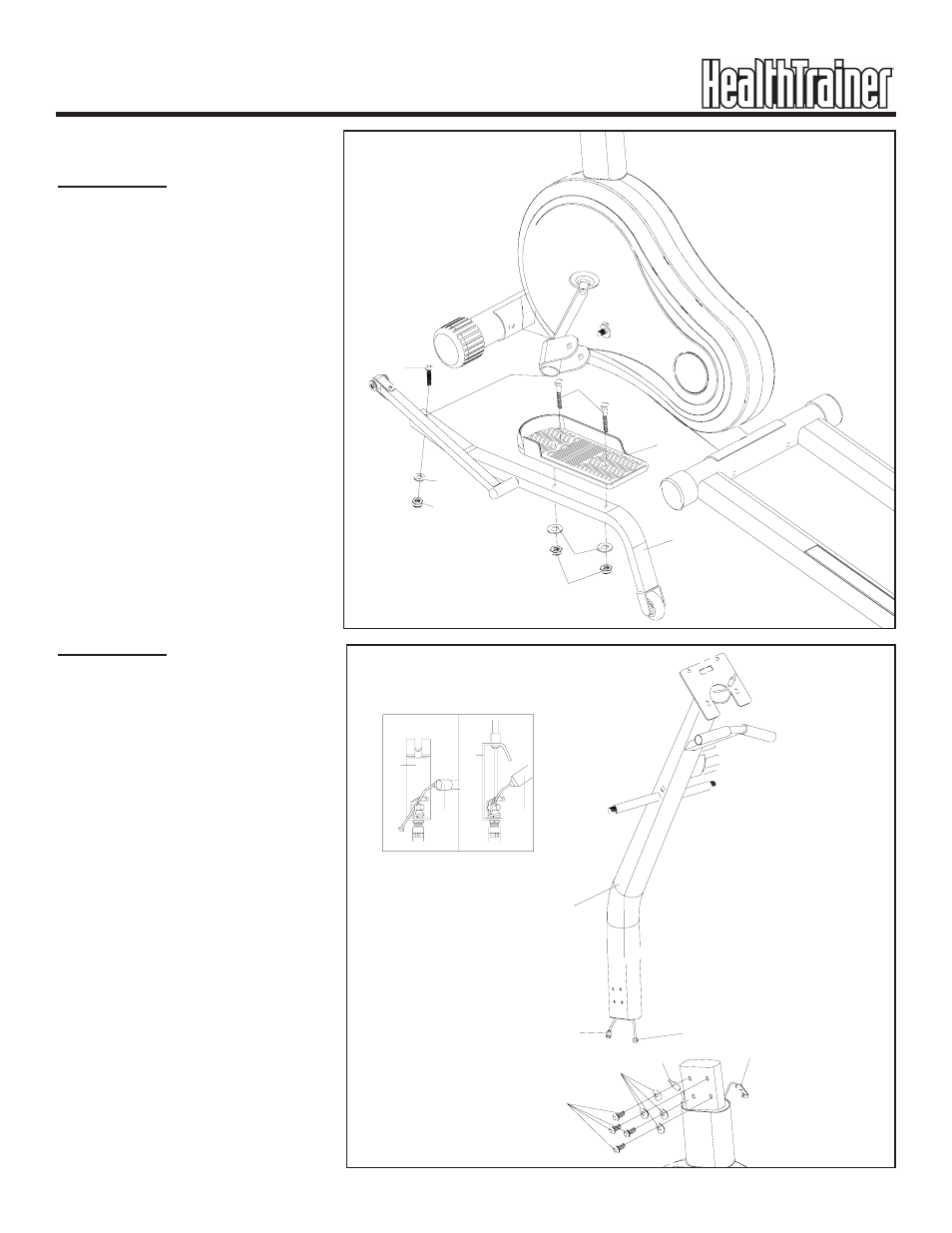

FIGURE 3
Step 1:
Secure left pedal (5a) to left
pedal tube (4a) with screws
(47), nylock nuts (49) and
washers (48). Then secure left
pedal tube (4a) to unit by lin-
ing up the pedal tube to the
axle with screws (50), nylock
nuts (49) and washer (48).
Repeat on right side.
FIGURE 4
Step 1:
Connect the extension wires
(72) to the sensor Wires (73);
Connect the tension cable (68)
to the tension controller (66) as
following steps 2-3:
Step 2:
Put the cable end (66) into the
spring hook (68) (figure 4A).
Step 3:
Pull the knob and insert the
short cable (66) into the gap of
the bracket (68) (pic 4B).
Tension is increased by turning
the knob clockwise.
Step 4:
Secure the upright post (3)
onto Main Frame (1) with
Washers (34) and Screws (65).
48
49
48
49
50
4a
5a
47
72 66
3
73
34
68
65
Figure 3
Figure 4
66
68
4A
68
4B
66
