530 recumbent parts list – Keys Fitness CM530R User Manual
Page 7
10
11
NO.
PART
QTY
1
MAIN FRAME
1
2
FRONT STABILIZER
1
3
WHEEL CAP
2
4
CARRIAGE BOLT M8*70
2
5
NUT CAP M8
4
6
ARC WASHER
4
7
REAR STABILIZER
1
8
END CAP
2
9
CARRIAGE BOLT M8*85
2
10
ADJUSTMENT BOLT M8
2
11
BEARING HOUSING
2
12
BEARING
2
13
OUTSIDE BEARING COLLAR
1
14
WASHER
1
15
PULLEY
1
16
MAGNET
1
17
BELT
1
18
CRANK
1
19
RIGHT PEDAL
1
20
INSIDE BEARING COLLAR
1
21
SNAP WASHER
1
22
HEX NUT
2
23
LEFT PEDAL
1
24
NUT 3/8"
1
25
WASHER
1
26
BC NUT 3/8"
1
27
FLYWHEEL SPACER
1
28
BEARING 6000ZZ
2
29
FLYWHEEL
1
30
FLYWHEEL AXLE
1
31
BALL BEARING
1
32
WASHER
5
33
NYLOCK NUT M8
2
34
MAGNETIC PLATE
1
35
SPRING
1
36
HEX SCREW M8*60
2
37
SPACER
2
38
IDLER ARM
1
NO.
PART
QTY
39
HEX SCREW 3/8"*26
1
40
WASHER
2
41
NYLOCK NUT 3/8"
1
42
IDLER WHEEL SPRING
1
43
IDLER WHEEL SPACER
1
44
IDLER WHEEL
1
45
BEARING 6000ZZ NBM
1
46
WASHER
1
47
NYLOCK NUT M10
1
48
PULSE WIRE
2
49
SENSOR WIRE
1
50
ROUND HEAD BOLT M3*8
2
51
HANDLEBAR POST
1
52
NUT M8*15
4
53
RESISTANCE KNOB
1
54
SCREW M5*18
1
55
TENSION WIRE
1
56
EXTENSION WIRE
1
57
CONSOLE
1
58
SCREW M5*8
2
59
UPPER FOAM GRIP
2
60
PULSE COVER
2
61
SQUARE PLUG
1
62
ROUND HEAD BOLT 3/16*5/8"1
63
SEAT FRAME
1
64
BUSHING
2
65
SEAT
1
66
HEX HEAD BOLT M6*20
4
67
WASHER
8
68
SEAT KNOB
1
69
LOW FOAM GRIP
2
70
LOW HANDLEBAR CAP
2
71
BACKREST
1
72
HEX HEAD BOLT M6*40
4
73
RIGHT COVER
1
74
LEFT COVER
1
75
BOLT 5/32"*3"
7
76
BOLT M4*11
4

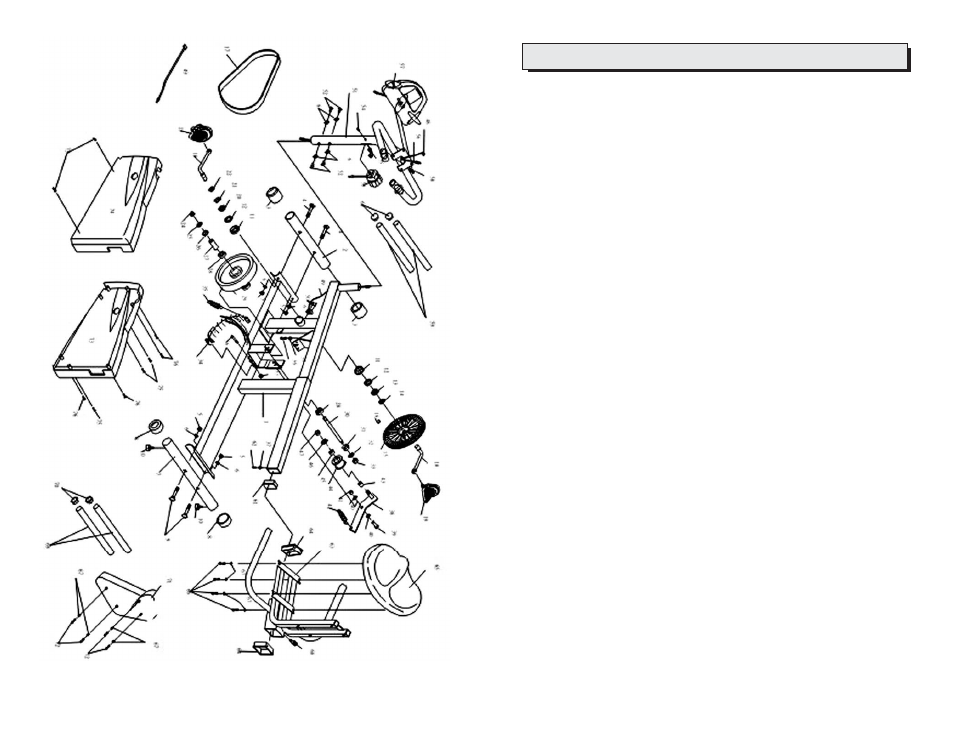

530 Recumbent Parts List
