Keys Fitness CM530R - Manual (Page 5)

6 7

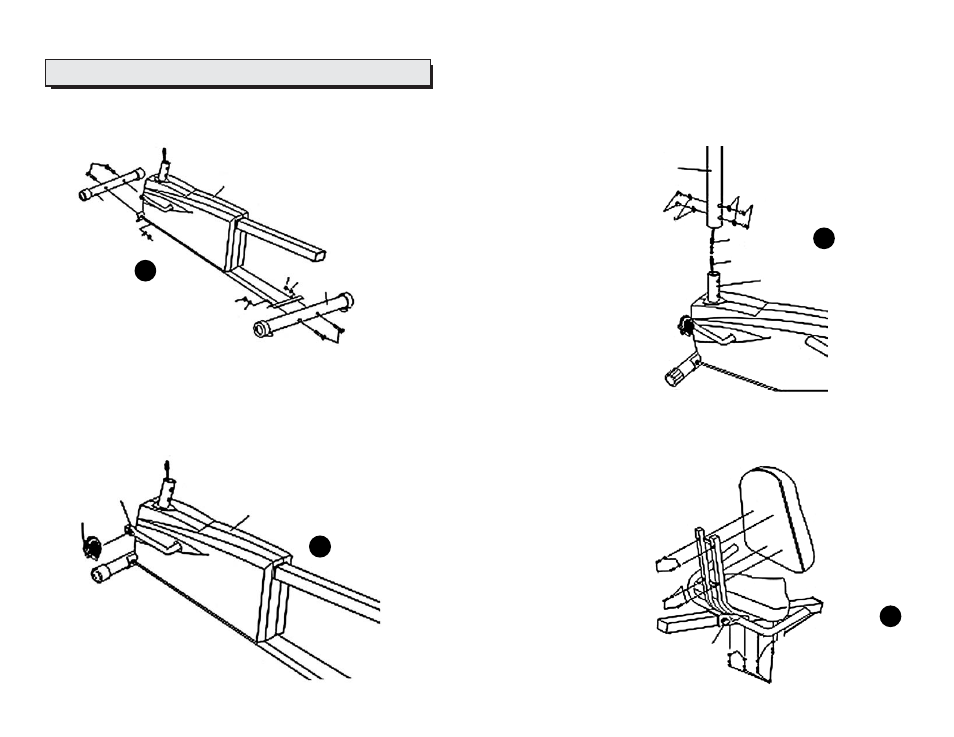

1. Attach the front and rear stablilizer (2,7) to the main frame (1)
with the carriage bolts, nuts. (4, 5, 6, 9).
51
52
6
6
56
49
1
52
1
2
3
4
5
6
6 7
9
5
6
23
18
1
1
2
5
Assembly of CardioMax Exercise Bike
2. Tighten the pedals (19, 23) into the crank. Tighten each pedal
by turning the bolt towards the front of the bike. NOTE: Each
pedal is labeled with a “R” for right or “L” for left. (Tighten
the left pedal by turning counter-clockwise and the right pedal
by turning clockwise.)
4. Attach seat bottom and seat back support onto the seat locking
system with screws (72, 66) and washers (67), and then slide
the seat locking system onto the seat post.
67
72
72
68 67
67
66
4
3. Hold the handlebar post (51) to the frame and connect the sen-
sor wires. Feed the tension cable up through the handlebar
post. Insert the post into the frame and attach it with screws
and washers. (52, 6).
