Connection
40
7 8 9 0 !
% # $ @
7 Fuse (40 A)
NOTE
If you can’t find the specified capacity fuse at your
store etc., consult your Kenwood dealer.
8 Battery terminal
9 Ground terminal
0 Power control terminal
Controls the unit ON/OFF.
NOTE
Controls the unit power. Be sure to connect it
with all the systems.
! Speaker output terminals
As this unit accepts speakers with a minimum
impedance of 1 ohm, connect speakers with 1-
ohm or higher impedance to these terminals.
2CAUTION
The rated input of the speakers should be no
less than the maximum output of the amplifier.
Otherwise malfunction may result.
@ RCA cable ground lead terminal
When using an RCA cable with a ground lead
attached, connect the ground lead to this
terminal.
# LINE IN terminal
$ LINE OUT terminal
The signal that’s input from the line input
terminal is output.
% Speaker level input terminals
NOTE
• The genuine-accessory car stereo shall have a
maximum power output of no more than 40 W.
• Do not connect the speaker output leads from
a power amplifier (Optional) to the speaker
level input terminals of this unit, for this may
cause malfunction or damage.
• Do not connect cables and leads to both RCA
cable input jacks and the speaker level input
terminals simultaneously, for this may cause
malfunction or damage.
• Connect the power control lead to a power
supply which can be turned ON/OFF by
the ignition key switch (ACC line). With this
connection, shock noise may be generated
when the power of the genuine-accessory car
stereo is switched ON/OFF.

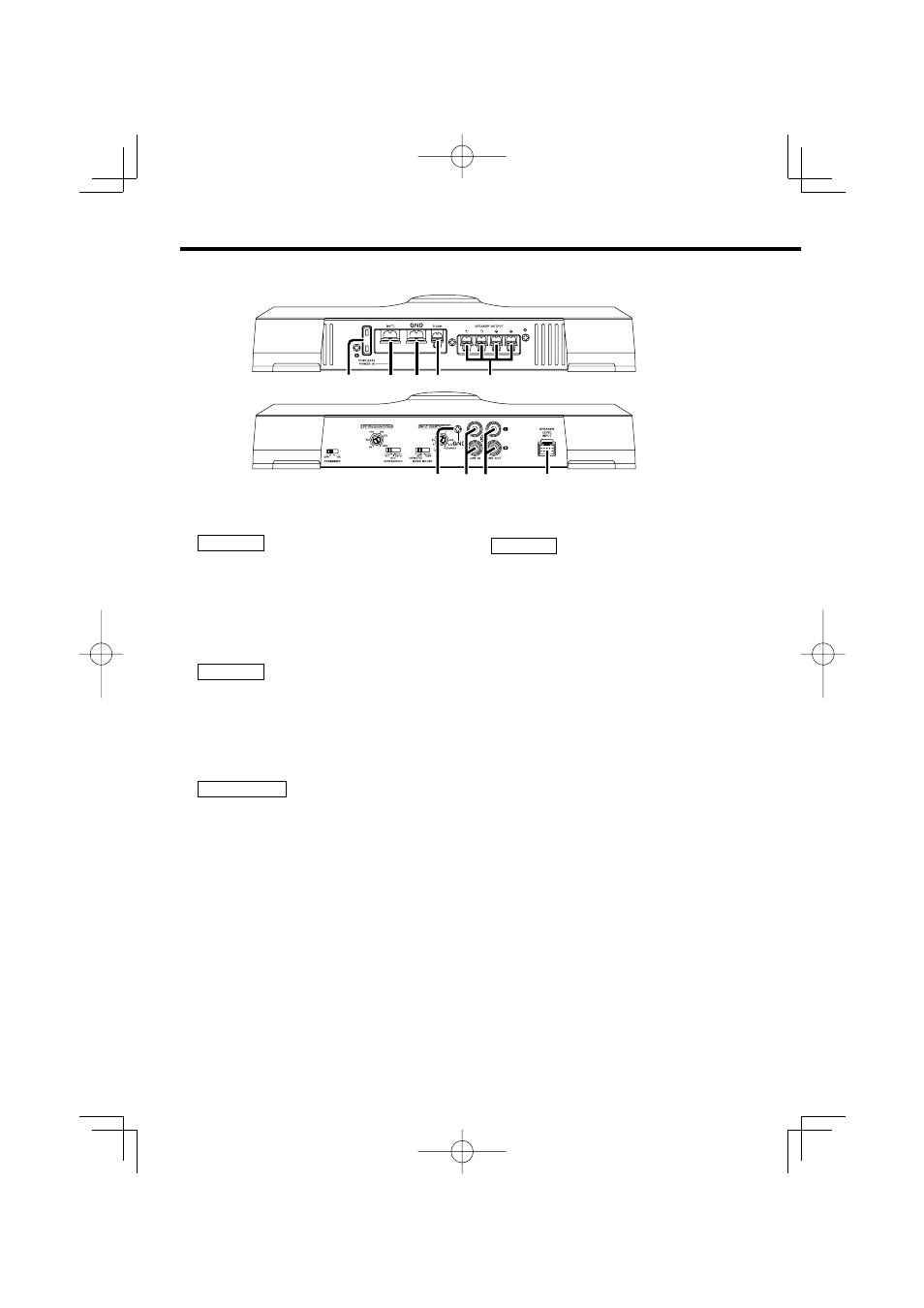

■ Terminal names
