560 SMR 2006

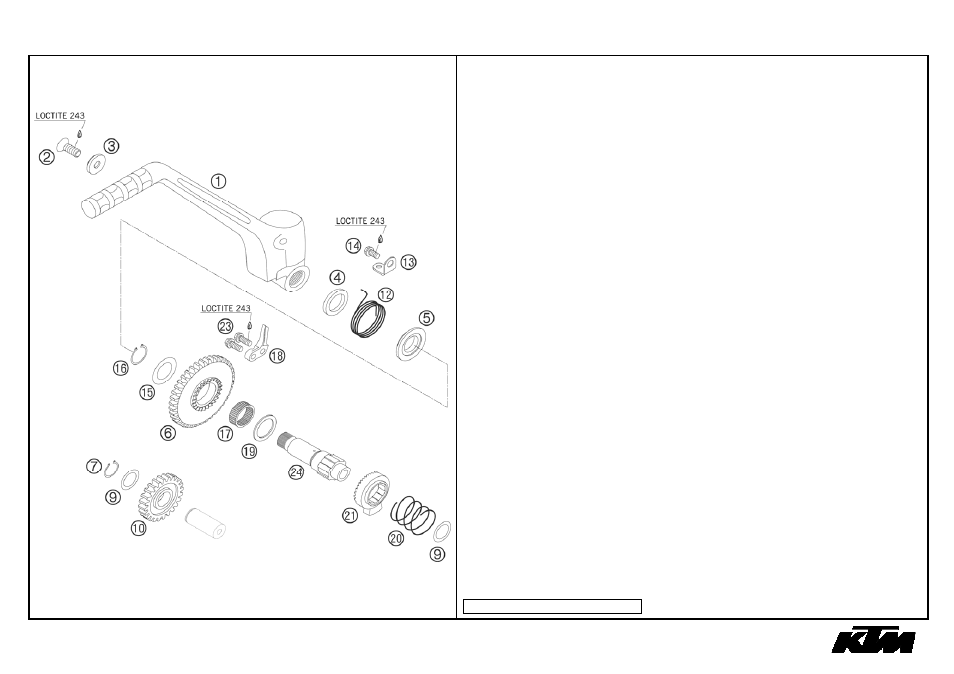

FIG PART

NUMBER

DESCRIPTION

QTY

1 54833070044

KICKSTARTER CPL. '03

1

2 54610052000

SPROCKET SCREW-AH M8X20 WS=6

1

3 54633037000

WASHER 8MM GALVANIZED

1

4 0760193070

SHAFT SEAL RING 19X30X7 B

1

5 59033055000

DRIVING HUB

1

6 59033051039

KICKSTARTER GEAR 39-T

1

7 0471170010

CIRCLIP DIN0471-17X1

1

9 0988172405

SHIM WASHER DIN0988-17X24X0,5

2

10 59033053000

INTERMEDIATE GEAR 24-T

1

12 59033054000

KICKSTARTER SPRING

1

13 59033074000

SPRING HANGER

1

14 0015060123

HH COLLAR SCREW M 6X12 WS=8

1

15 59033080000

SHIM 20X32X1

1

16 0471190120

CIRCLIP DIN0471-19X1,2

1

17 0405222610

NEEDLE BEARING K 22X26X10 A

1

18 59033069000

BUMP PART

1

19 58033031000

STOP DISK 22,2 X 30 X 1,5

1

20 58033028000

RATCHET GEAR SPRING 1,2 MM

1

21 59033052000

RATCHET GEAR KICKSTARTER

1

23 0015060203

HH COLLAR SCREW M 6X20 WS=8

2

24 59033050000

KICKSTARTER SHAFT RACING 2000

1

05590330 / C065903300

* NEW PART

X AS REQUIRED

12

KICKSTARTER
