Cylinder – KTM 560 SMR 2006 User Manual
Page 10
560 SMR 2006

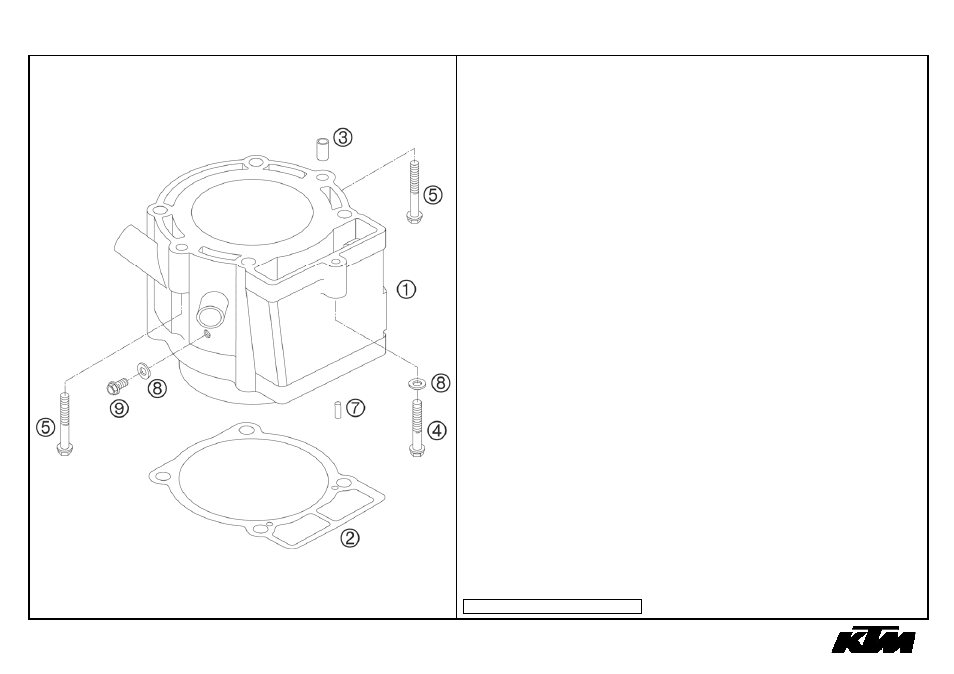

FIG PART
NUMBER
DESCRIPTION
QTY
1 SXS03530010
CYLINDER D=100MM, L=76MM
1
2 59030035150
CYLINDER BASE GASKET 0,8MM
1
3 59030023000
DOWEL 6X8X11,5
2
4 0015060403
HH COLLAR SCREW M 6X40 WS=8
1
5 0015060453
HH COLLAR SCREW M 6X45 WS=8
2
7 0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
2
8 0603061001
CU-SEAL RING DIN7603-6X10X1
2
9 0015060103
HH COLLAR SCREW M 6X10 WS=8
1
05590306 / C065933002
* NEW PART
X AS REQUIRED
8
CYLINDER
