12

Preparations

DV-605/DVF-R5060 (EN/K,P,E,T,X,Y)

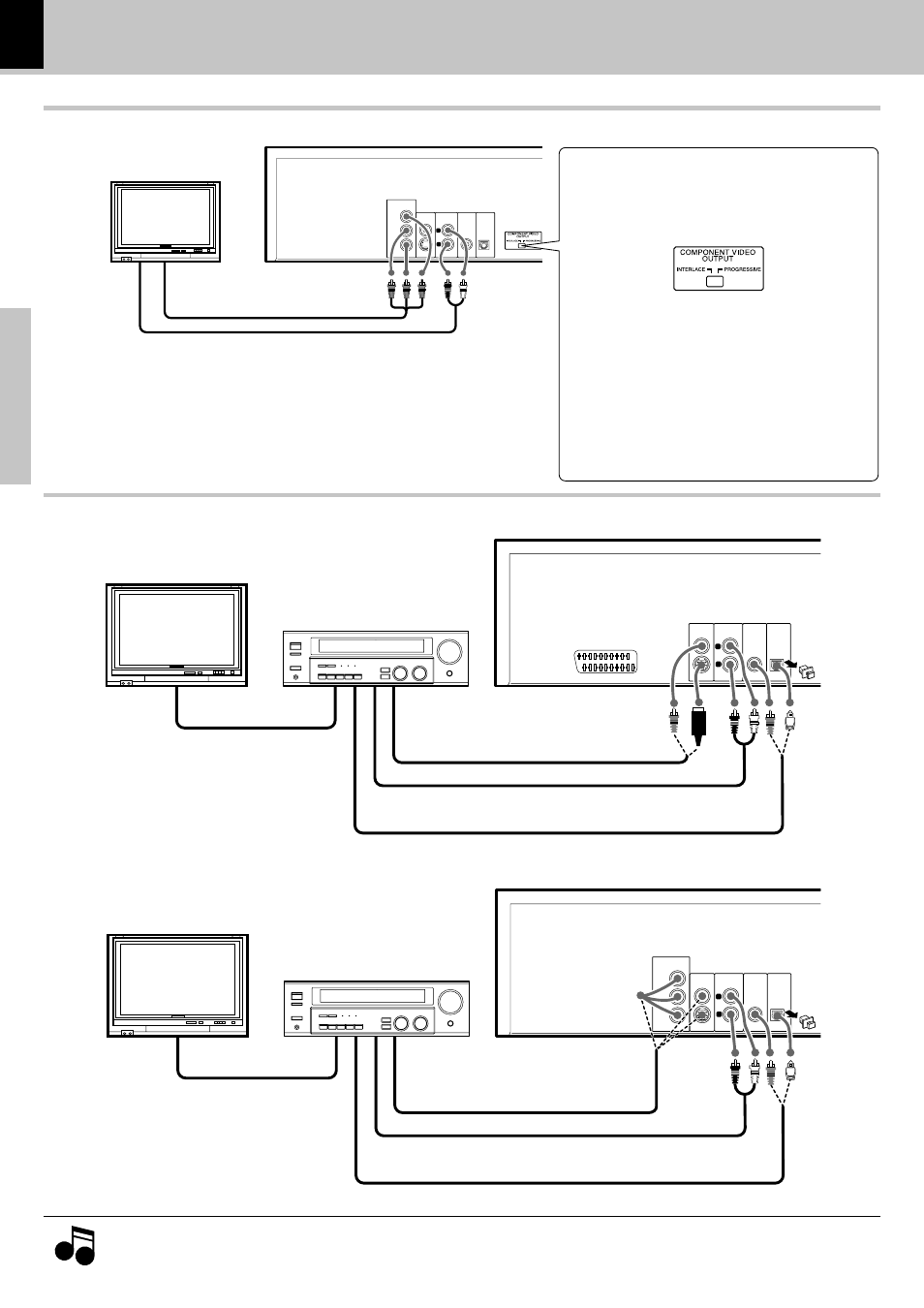

Connecting to an Audio component

AUDIO

OUTPUT

VIDEO

OUTPUT

S-VIDEO

AV

OPTICAL

COAXIAL

L

R

AV receiver or Amplifier

Video cord or S-video cord

Audio cord

Coaxial or Optical cable

(For Europe and U.K.)

TV

AUDIO

OUTPUT

VIDEO

OUTPUT

S-VIDEO

OPTICAL

COAXIAL

L

R

COMPONENT

VIDEO OUTPUT

Cr

Cb

Y

TV

AV receiver or Amplifier

Video cord, S-video cord or
Component cords

Audio cord

Coaxial or Optical cable

(For other countries)

1. In case an associated system component is connected, also read the instruction manual of the component.
2. Insert the optical-fiber cable straight into the connector until it clicks.
3. Never bend or bundle the optical-fiber cable.

Notes

Notes

Connecting to a TV with Component input terminals

(For other countries)

TV

AUDIO

OUTPUT

VIDEO

OUTPUT

S-VIDEO

OPTICAL

COAXIAL

L

R

COMPONENT

VIDEO OUTPUT

Cr

Cb

Y

Component cords

Audio cord

System Connections

Select the scanning method of the Component
Video output using the COMPONENT VIDEO
OUTPUT switch on the rear panel.

INTERLACE: Scanning method is fixed at in-

terlaced scanning.

PROGRESSIVE: When progressive scanning

is unavailable with certain discs, the scan-
ning method is switched automatically to in-
terlaced scanning. When the scanning
method is changed, the scanning status will
be displayed for a few seconds.

[ For U.S.A. and Canada ]
