Kicker L5 - Manual (Page 25)

Kicker Solo-Baric L5-Series Subwoofers
Recommended Applications
Page 25
POWER HANDLING:
600W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 420W
1.75 cf, Fb=40Hz
.43 cf = Port Vol.

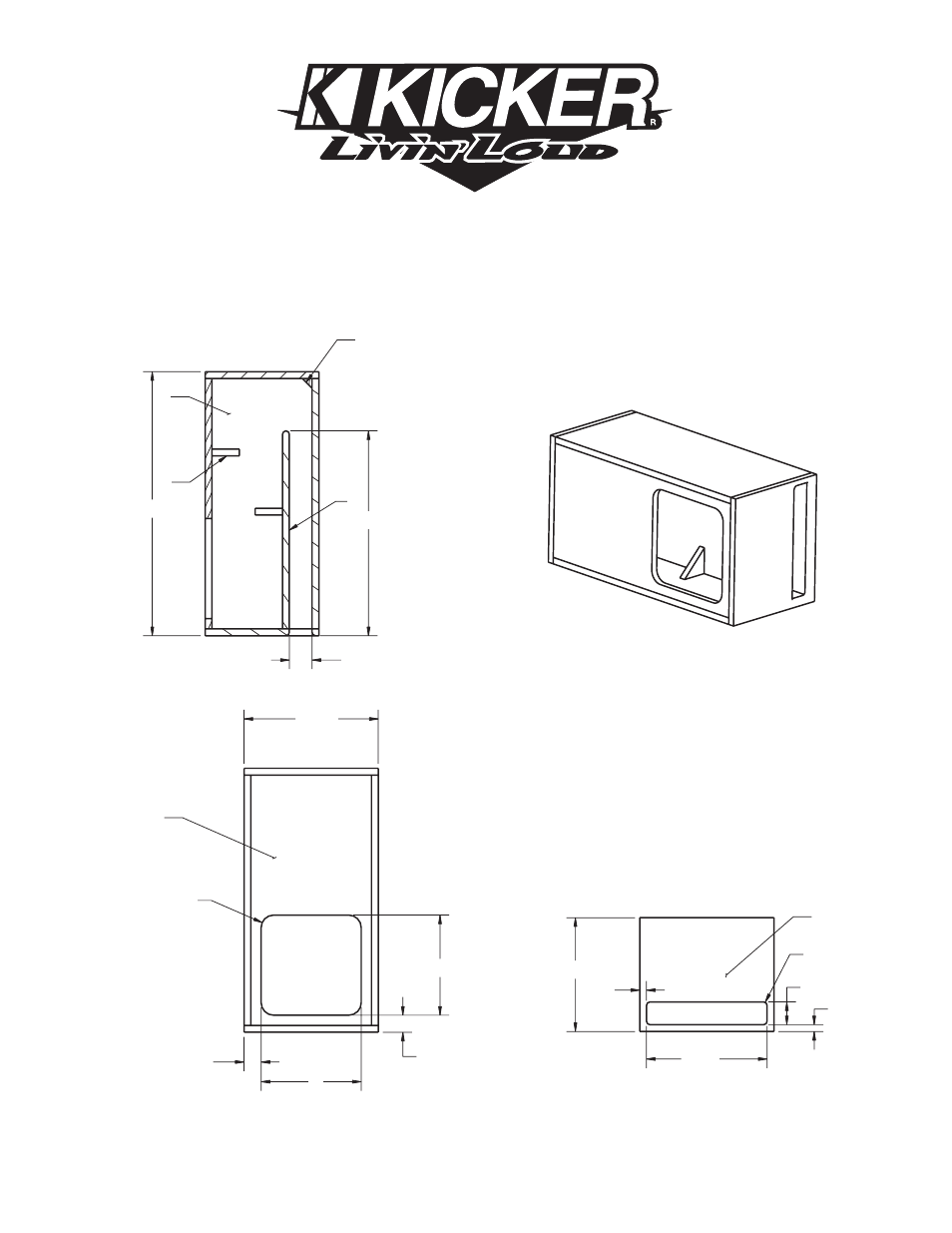

S12L5-BOX-VENTED-175
Side View
E
B
F
D
29
22-1/2
2-1/2
Front View
14-3/4
C
R 1-1/2
11
1-7/8
11
1-7/8
A
12-1/2
3/4
R3/8
2-1/2
3/4
13-1/4
Cut List: 3/4" MDF
(2) 14 3/4" x 12 1/2" Top & Bottom(A)
(2) 27 1/2" x 12 1/2" Sides(B)
(2) 27 1/2" x 13 1/4" Front & Back(C)
(1) 21 3/4" x 13 1/4" Port(D)
(1) 1 1/2" x 13 1/4" Corner Fillet(E)
(4) 3" x 3" Gusset(F)
1.5
