POWER HANDLING:

300W with 25Hz Subsonic Filter
set at 24db/Octave.
Without subsonic filter 210W

.66 cf, Fb=48Hz

.16 cf = Port Vol.

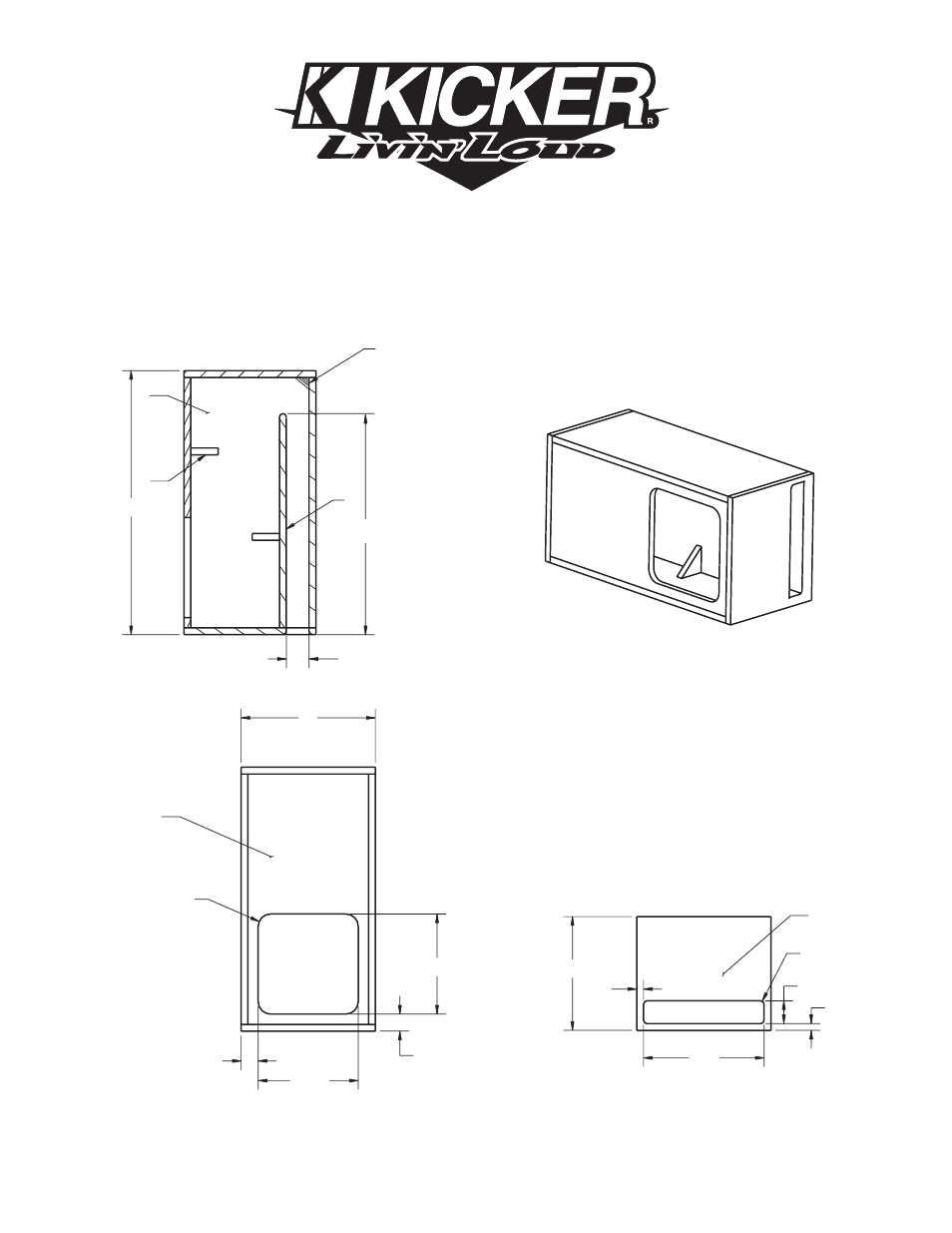

S8L5-BOX-VENTED-066

Side View

B

F

D

22

19-1/4

1-1/2

Front View

11

C

R 1-5/16

7-1/4

1-7/8

7-1/4

1-7/8

A

9-5/8

3/4

R3/8

1-1/2

3/4

9-1/2

Cut List: 3/4" MDF
(2) 11" x 9 5/8" Top & Bottom(A)
(2) 20 1/2" x 9 5/8" Sides(B)
(2) 20-1/2" x 9 1/2" Front & Back(C)
(1) 18 1/2" x 9 1/2" Port(D)
(1) 1 1/2" x 9 1/2" Corner Fillet(E)
(4) 2" x 2" Gusset(F)

E

1.31

Kicker Solo-Baric L5-Series Subwoofers
