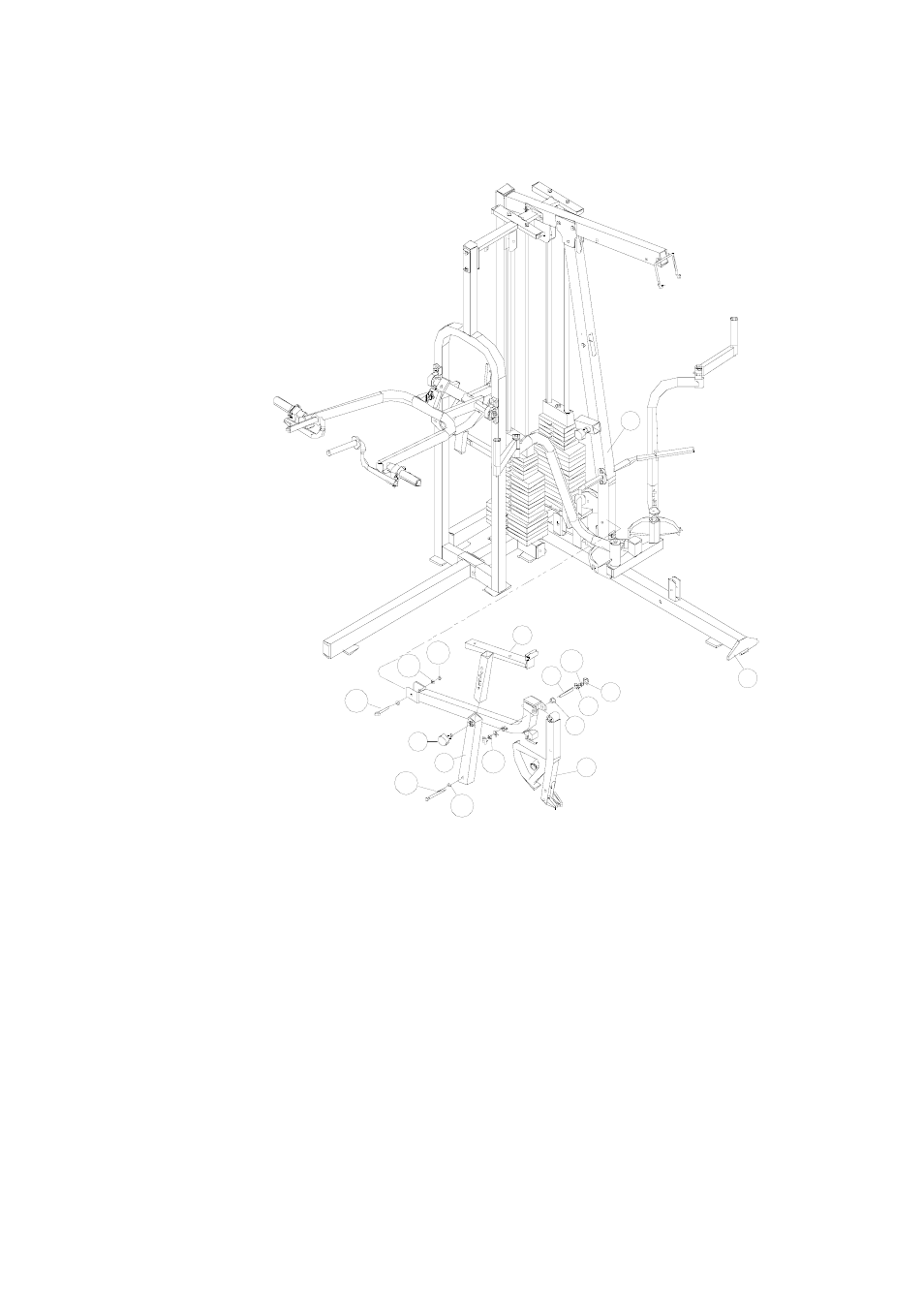

STEP 6
Connect Seat Pad Support Receptacle (8) to Main Upright (3) and Base
Frame (1) using:
1 x (122) Bolt 4 x (125) Washer
2 x (126) Nylon Lock Nut 1 x (118) Bolt
Connect Leg Extension Lever (10) to Seat Pad Support Receptacle (8) using:
2 x (94) Semi-Ball End Cap 2 x (117) Nylon Lock Nut
1 x (47) Shaft for Leg Extension 2 x (91) Concave Washer
2 x (55) Bushing for Leg Ext.
Insert Seat Pad Support (9) into Seat Pad Support Receptacle (8).
ASSEMBLY
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
