ASSEMBLY
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
28
34
35
63
63
15
36
90
127
131
112
13
115
117
116
58
134
125

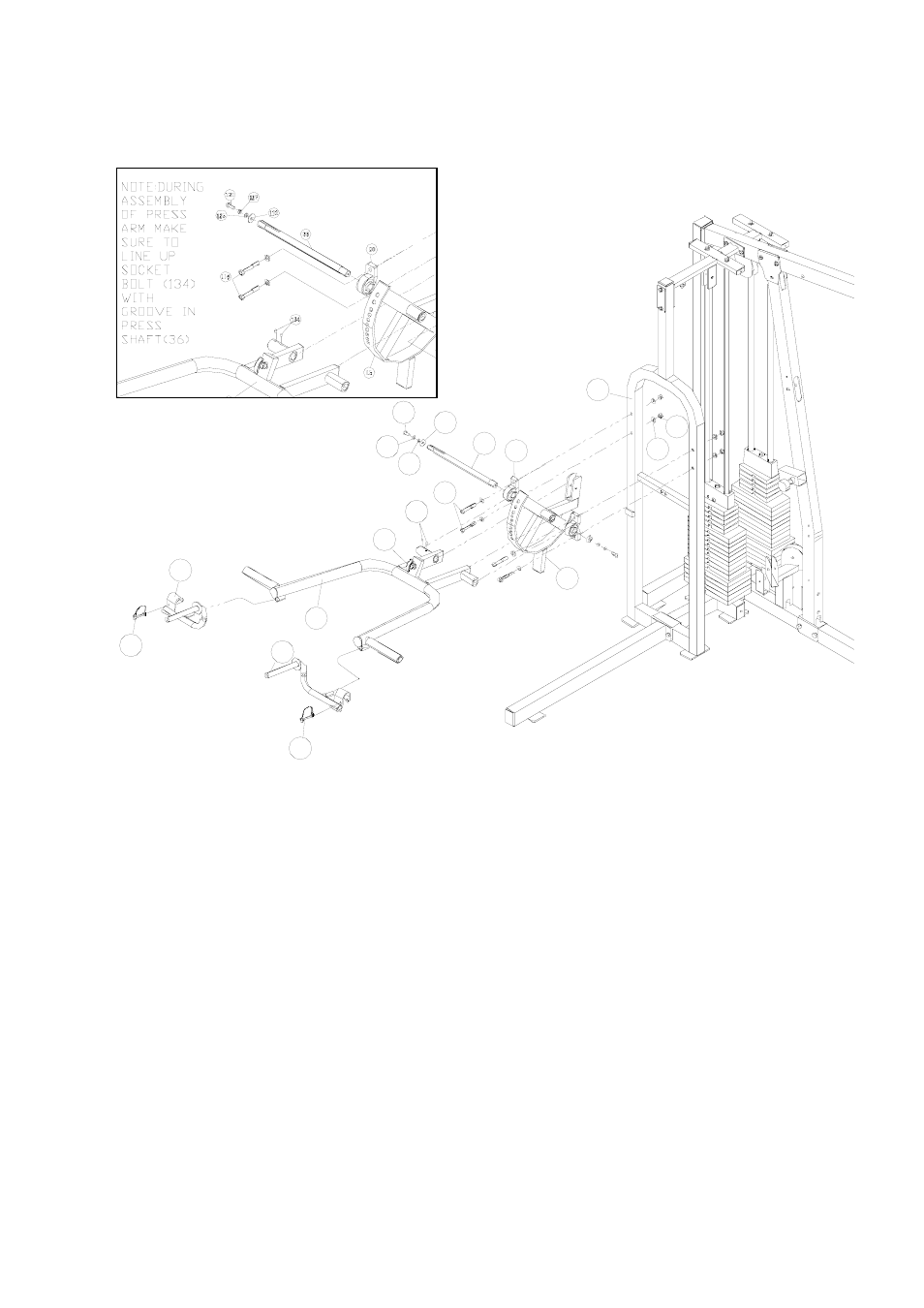

STEP 4
Using Press Station Shaft (36) to connect the following:
2 x (90) Pillowblock Bearing 1 x (15) Chest Press Cam
1 x (28) Press Arm
Attach Pillowblock Bearing(90) to Press Arm Support(13) using:
4 x (115) Bolt 8 x (116) Washer
4 x (1117) Nylon Lock Nut
Secure Press Station Shaft (36) using:
2 x (131) Bolt 2 x (127) Spring Washer 2 x (125) Washer
2 x (134) Socket Bolt 2 x (112)Small Metal Plate
Insert Left and Right Squat Arm (34,35) into Press Arm (28) and then put
Safety Pin (63) into Left and Right Squat Arm (34,35)
