Zone Inches Millimetres
A 0.07 0.09 1.78 2.29
B 0.15 0.17 3.81 4.32
C 0.35 0.37 8.89 9.40
D 0.43 0.45 10.92 11.43
E 0.63 0.65 16.00 16.51
F 0.71 0.73 18.03 18.54
G 0.79 0.81 20.07 20.57
Low
Range
High
Range
Low
Range
High
Range

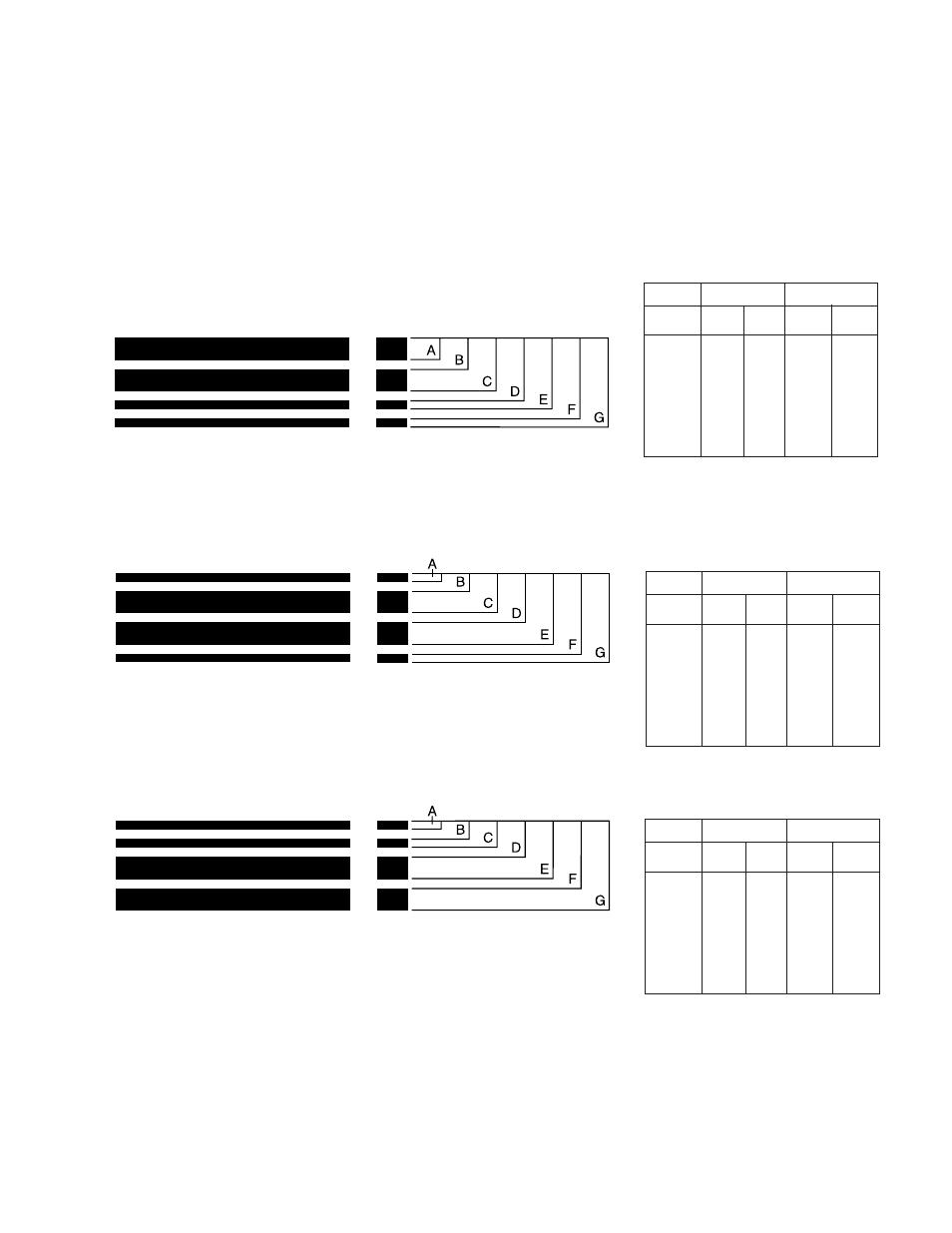

Patch Codes Patch code specifications
Patch 4/Toggle Patch
Patch 6
Zone Inches Millimetres
A 0.07 0.09 1.78 2.29
B 0.15 0.17 3.81 4.32
C 0.23 0.25 5.84 6.35
D 0.31 0.33 7.87 8.38
E 0.51 0.53 12.95 13.46
F 0.59 0.61 14.99 15.49
G 0.79 0.81 20.07 20.57
Low
Range
High
Range
Low
Range
High
Range
Zone Millimetres
A 0.19 0.21 4.83 5.33
B 0.27 0.29 6.86 7.37
C 0.47 0.49 11.94 12.45
D 0.55 0.57 13.97 14.48
E 0.63 0.65 16.00 16.51
F 0.71 0.73 18.03 18.54
G 0.79 0.81 20.07 20.57
Inches
Low
Range
High
Range
Low
Range
High
Range
Patch Types 1, 4 and 6 can be used by the host for post-scan image control for the i800/i1800 (with image
addressing) Series Scanners (they are not used for image addressing).
The Toggle Patch may be used to switch back and forth from bi-tonal and color/grayscale scanning for the
i280, 3590C, i600, i800 and i1800 (without image addressing) Series Scanners. This provides
Color on the
Fly during capture, with no need for post-scan processing by the host application.
NOTE: The patch codes illustrated below are not to spec. Use the patch sheets included in this packet for
specifications.
Patch 1 Patch 1
Patch 4/Toggle Patch
Patch 6
