Circuit Breaker:

Power Cord

Speaker Outputs

Ground Lift Switch

Direct Output Jack

Pre EQ / Post EQ Switch:

Tuner Out Jack:

Effects Send Jack

Effects Return Jack

Footswitch Jack:

:

:

Use

:

:

:

:

This circuit breaker will trip when too much

current is applied to the amplifier. To reset: Turn
off

, press circuit breaker button,

and turn the

on. Note: If the

Circuit Breaker trips repeatedly when AC power
is applied, take the amplifier to an authorized
service center for repair.

This supplies AC power to the amplifier. If the

cord becomes damaged, take the amplifier to an
authorized service center for repair.

these jacks to connect the amplifier to

speaker cabinets using heavy duty Speakon
speaker cables. These jacks are connected
together internally. See

(Page 8) for speaker cabinet loading

information.

To prevent overheating and

possible loss of signal, do not connect a load
lower than 2 ohms. (To connect a cable: Align tab
on speaker cable connector slot. Insert and twist
one quarter turn clockwise to lock. To remove a
cable: Pull back release button on cable connector,
twist connecter counter clockwise one quarter
turn, and pull out connecter.)

Activating this switch removes the ground

connection on the

.

Removing the ground connection will eliminate
related signal hum.

This is a line level output used to connect the

amplifier to another device, such as a mixer or
recorder.

When set to Pre EQ, the

signal

will be unaltered by the EQ sections of the preamp.
When set to Post EQ, the
signal will reflect the entire sound (including EQ
settings) of the preamp.

The

and

have no effect on

the

signal.

Use this jack to connect to a tuner or other line level

device. This jack is always active and is a pre-gain
output.

Use this jack to connect to the input of an external

effects processor. This jack can also be used as a
preamp out.

Use this jack to connect to the output of an external

effects processor. This jack can also be used as a
power amp in.

This 3-conductor 1/4” jack may be used for
connecting a footswitch to the amplifier
(Footswitch model KAC-GFS100 is included with
the amplifier). The footswitch will then control the
Mute and Solo features.

Power Switch

Power Switch

Amplifier Loading

Chart

Note:

Direct Output Jack

Direct Output Jack

Direct Output Jack

Note:

Master Volume

Control

Solo On/Off Button

Direct Output Jack

d

7

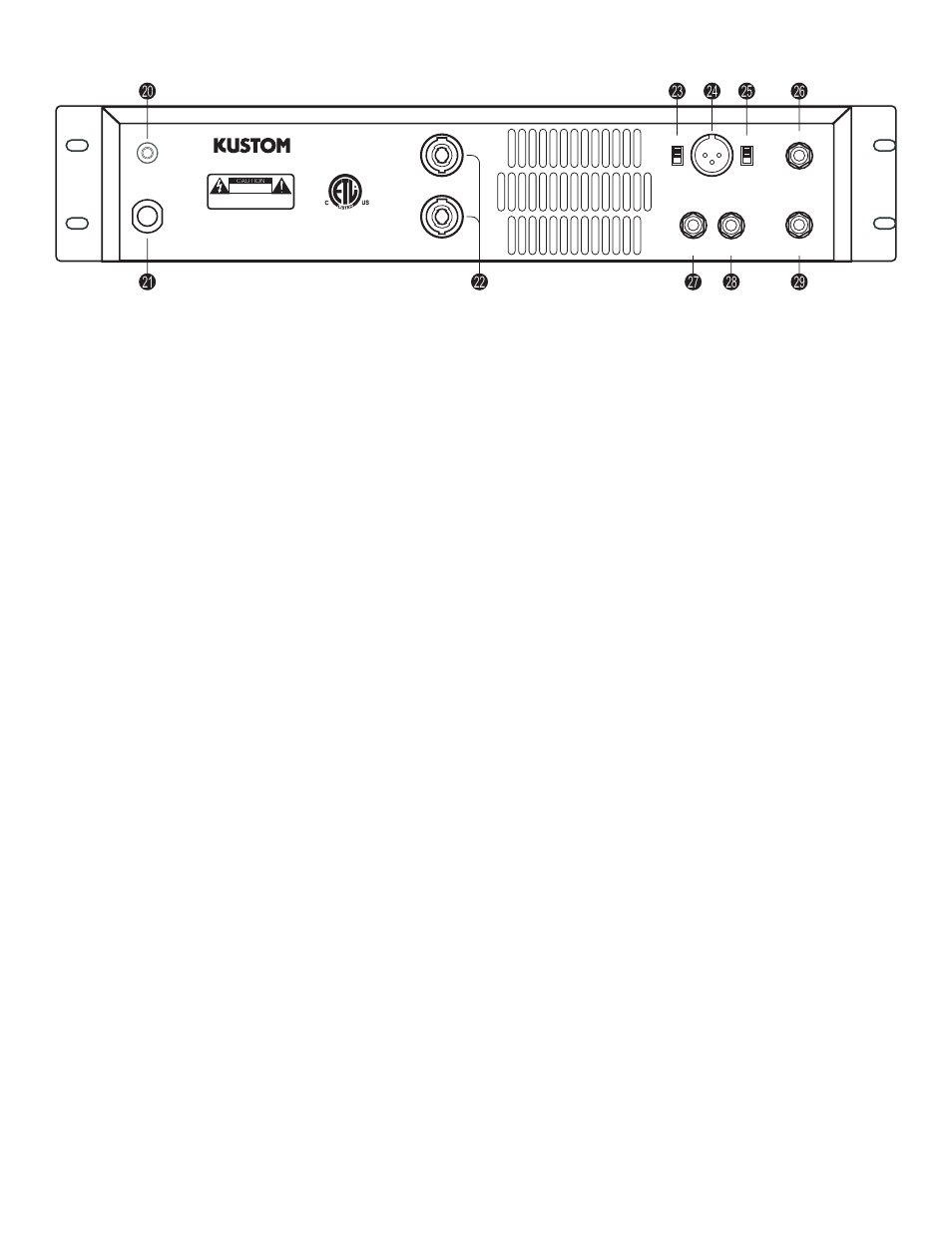

Rear Panel

25

DIRECT OUTPUT

SPEAKER OUTPUT

EFFECTS LOOP

SEND

RETURN

FOOTSWITCH

TUNER OUT

GROUND

LIFT

POST EQ

PRE EQ

DESIGNED IN USA

MADE IN CHINA

SERIAL NUMBER

MODEL: GROOVE 1200

2001124
