9
Assembly
CONGRATULATIONS!
You have completed assembly of your CG2 Elliptical

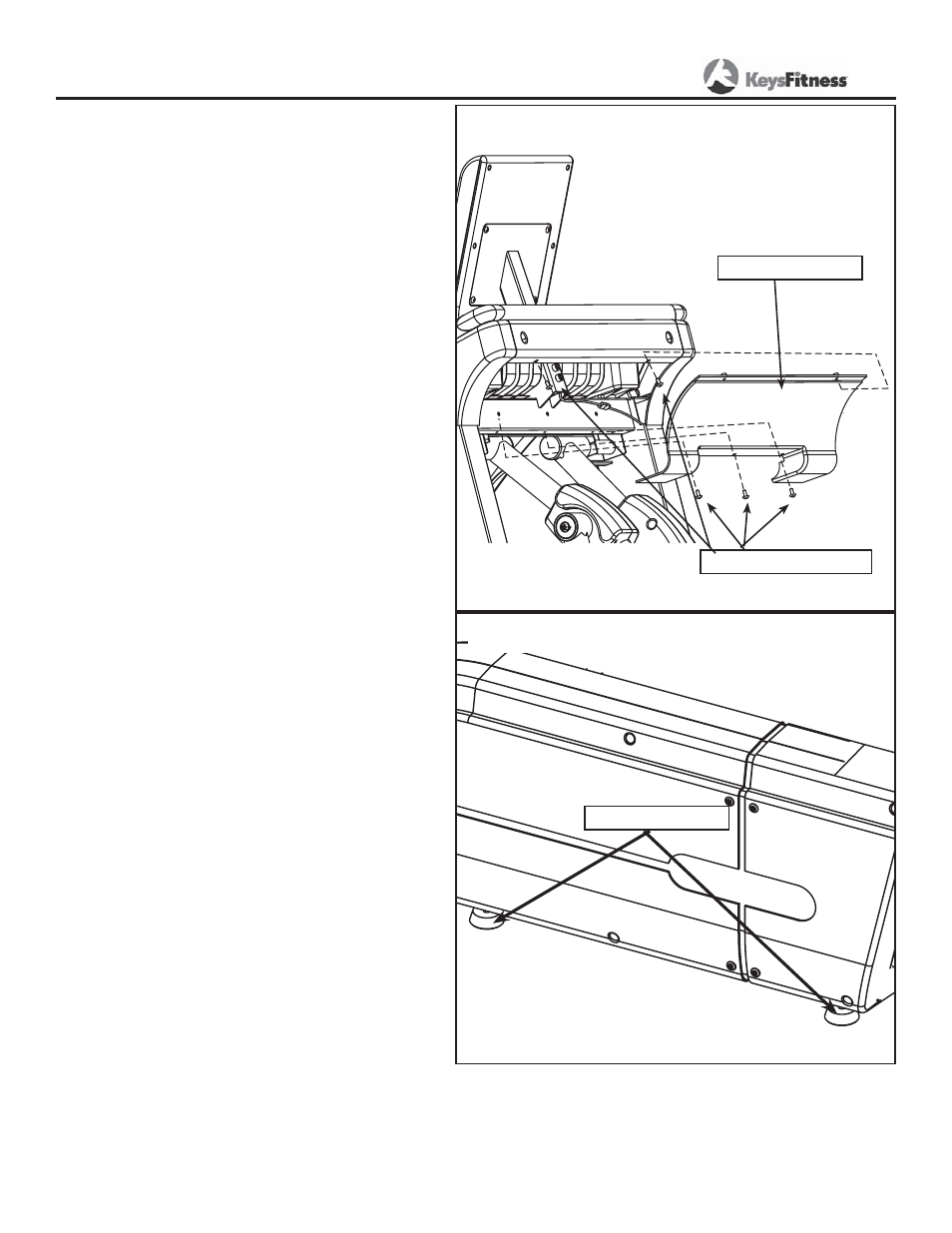

Figure 6
Attach Rear Cover to Main Frame using five
M5*12mm Philip Head Screws removed in
figure 3.
Note: Do not force Rear Cover back into
place, this will damage Rear Cover.
Figure 6
REAR COVER
M5*12MM SCREW
Figure 7
Level machine so that no wobble is pres-
ent. Leveler feet screw in and out to level
machine. After machine is level, tighten
leveler nut to secure levelers in place.
Figure 7
LEVELER
