8

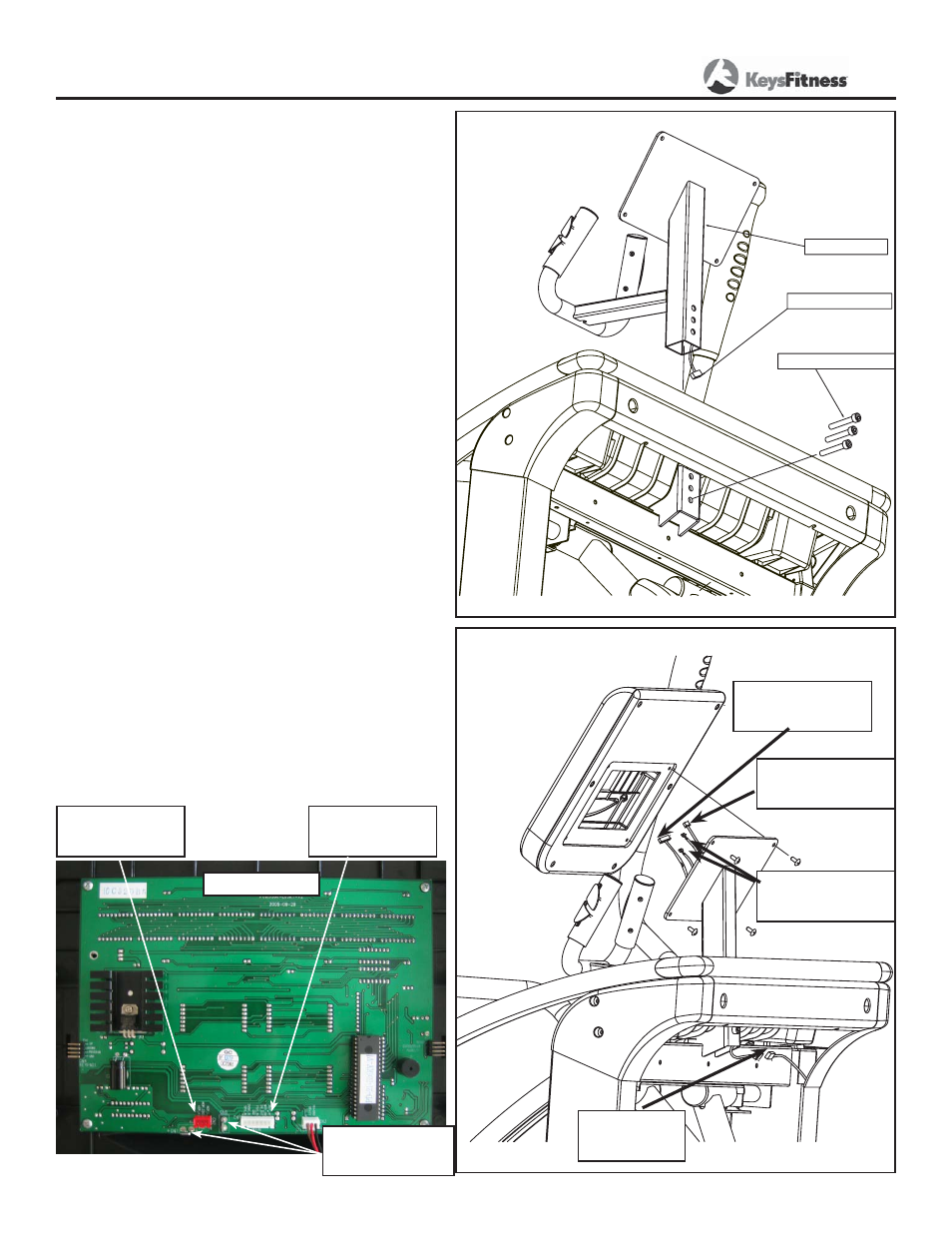

Assembly
Figure 5
Connect 7 Pin, 3 Pin and Grounding cables..
Refer To Figure 5 and 5a.
Attach Console to Console tube using four
M5*12mm Philip Head Screws.
Note: Ensure that all wires are secure
inside console. Be careful not to pinch wires.
7 PIN
CONNECTOR
M8*50mm Hex Bolt
7PIN CONNECTOR
Console Mast
Figure 4
Attach Console Tube to Main Frame. Slide
Tube down into Main Frame. Secure using
three M8*50mm Hex Head Bolts. Cable
should extend thru bottom and top of
Console Tube.
Figure 4
3 PIN
CONNECTOR
CONSOLE
CABLES
7 PIN
CONNECTOR
3 PIN
CONNECTOR
2 GROUND
CONNECTORS
Figure 5a
Figure 5
GROUNDING
TERMINALS
