Model W1802 2 QT. Professional Spray Gun
-7-
6. Attach the compressed air line to the
air inlet, as shown in Figure 7. For
easier operation and maintenance,
install a 1 /
4
" NPT quick disconnect set-
up on the air line (not included).
Note: For the best results, use a fil-
ter that will extract water and oil
contaminants and a hose that will be
dedicated for spray use only. Do not
use a hose that has been used with
an in-line oiler or other possible con-
taminant.
If you need additional help with this
assembly, call our Technical Support at:
(360) 734-3482.
Controls
1. Fluid Control: Controls the volume
of material that travels through the
fluid tip.
2. Pattern Control: Adjusts the spray
pattern from a round pattern to a
wide fan.
3. Atomizing Cap: Controls the spray
pattern from vertical to horizontal.
4. Trigger: Two stage trigger. Stage
one only releases compressed air for
blowing off the work piece. Stage two
sprays material.
5. Pressure Control Knob: Controls the
fluid pressure inside the spray gun.
6. Safety Valve: Releases unsafe pres-
sure build-up from pressure cup.

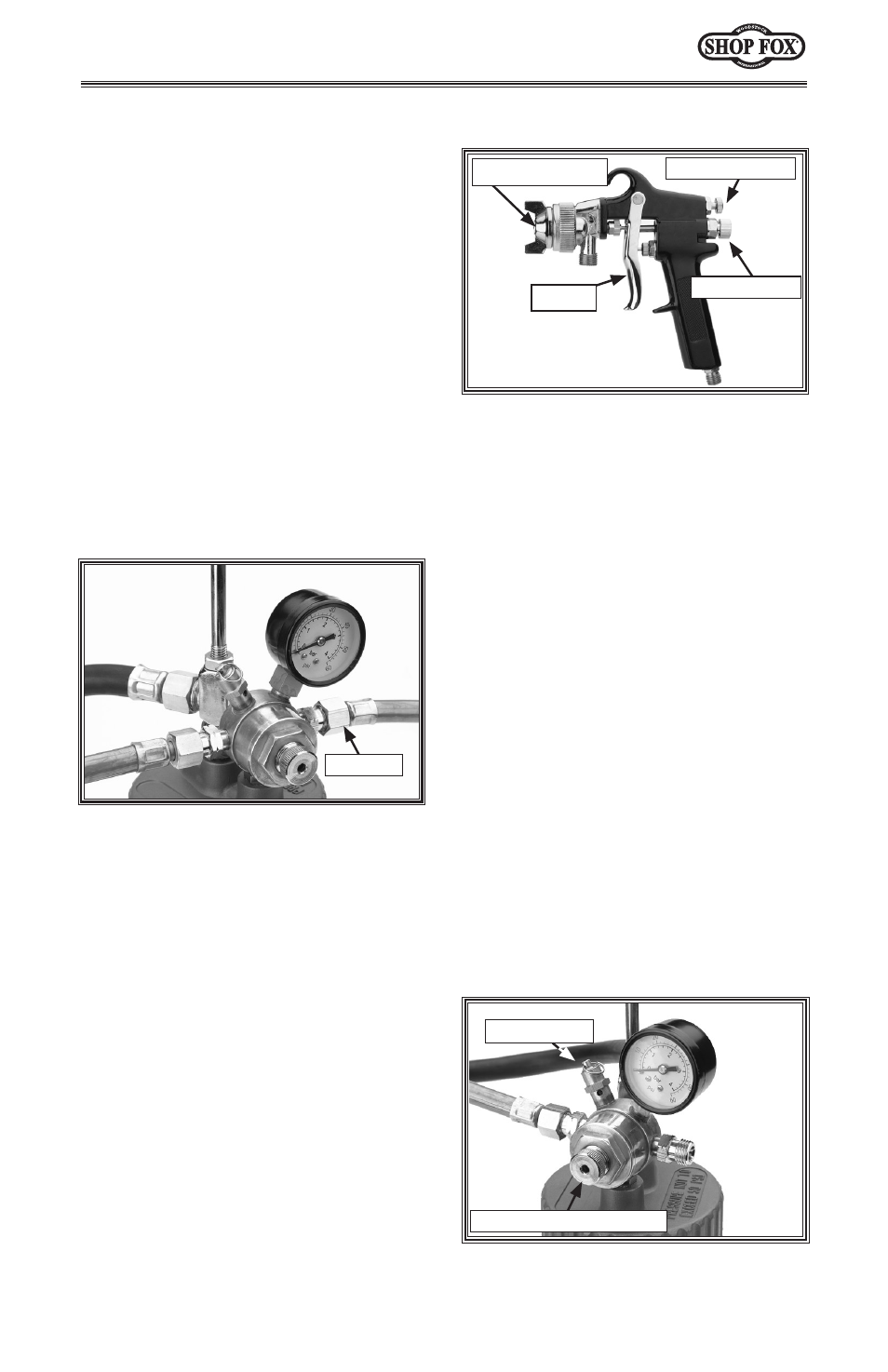

Figure 8. Controls.
Figure 9. Pressure cup controls.
Fluid Control
Pattern Control
Atomizing Cap
Trigger
Figure 7. Compressed air inlet location.
Air Inlet
Safety Valve
Pressure Control Knob
