Model W1802 2 QT. Professional Spray Gun
-13-
Lubrication
Lubricate the following areas in Figures
18-20 with a non-silicon spray gun
lubricant after each cleaning.
A. Atomizing Cap Threads
B. Air Valve Packing
C. Trigger Pin
D. Fluid Control Knob
E. Pattern Control Knob
F. Pressure Control Knob
Allow the lubricant to coat threads, and
run into gun body to lubricate all moving
parts and seals.

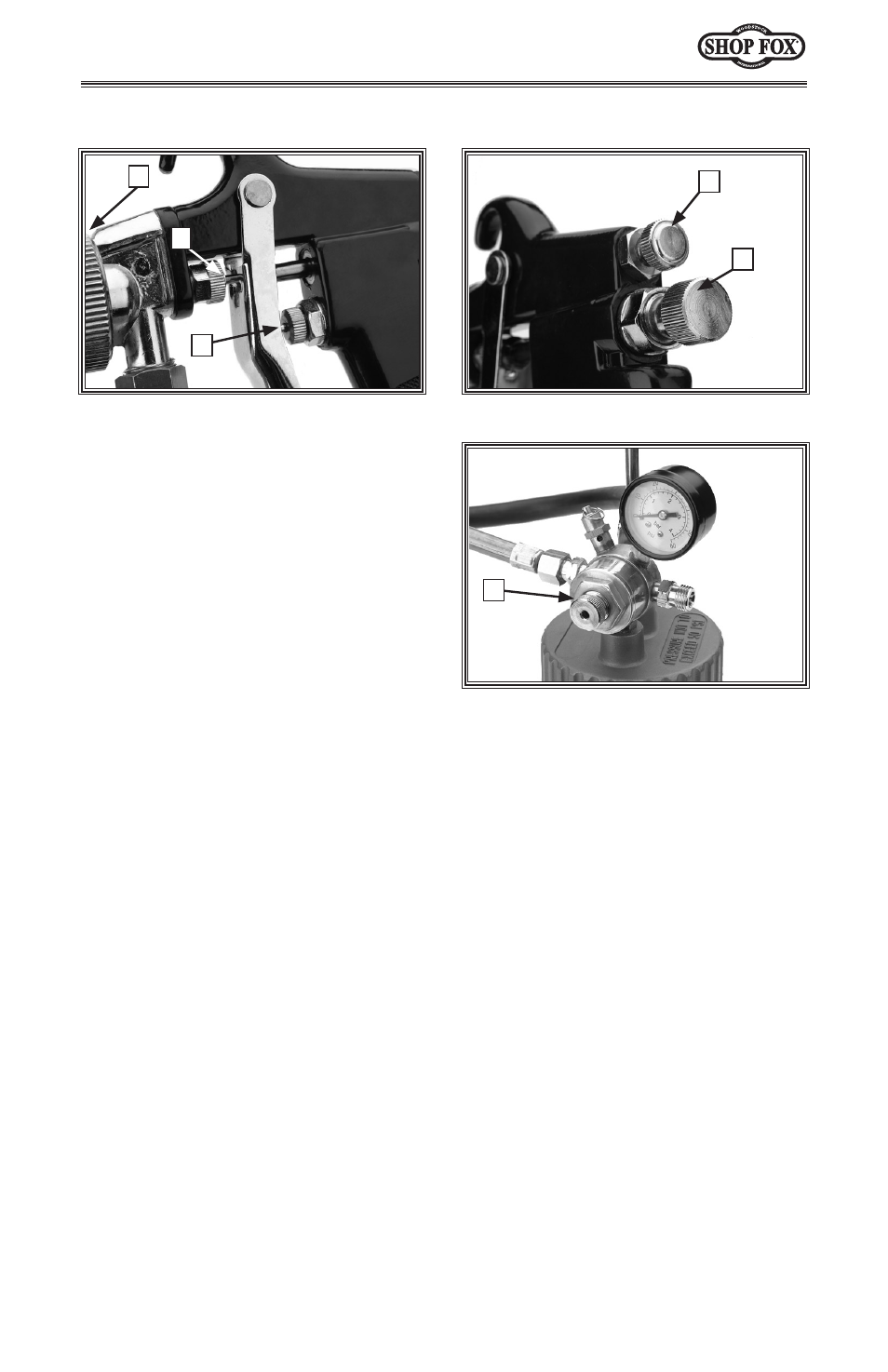

Figure 18. Lubrication points.
A
B
C
Figure 20. Pressure control threads.
F
Figure 19. Control knob lubrication.
D
E
