Operation
10 24/96 AD-DA Converter 2053

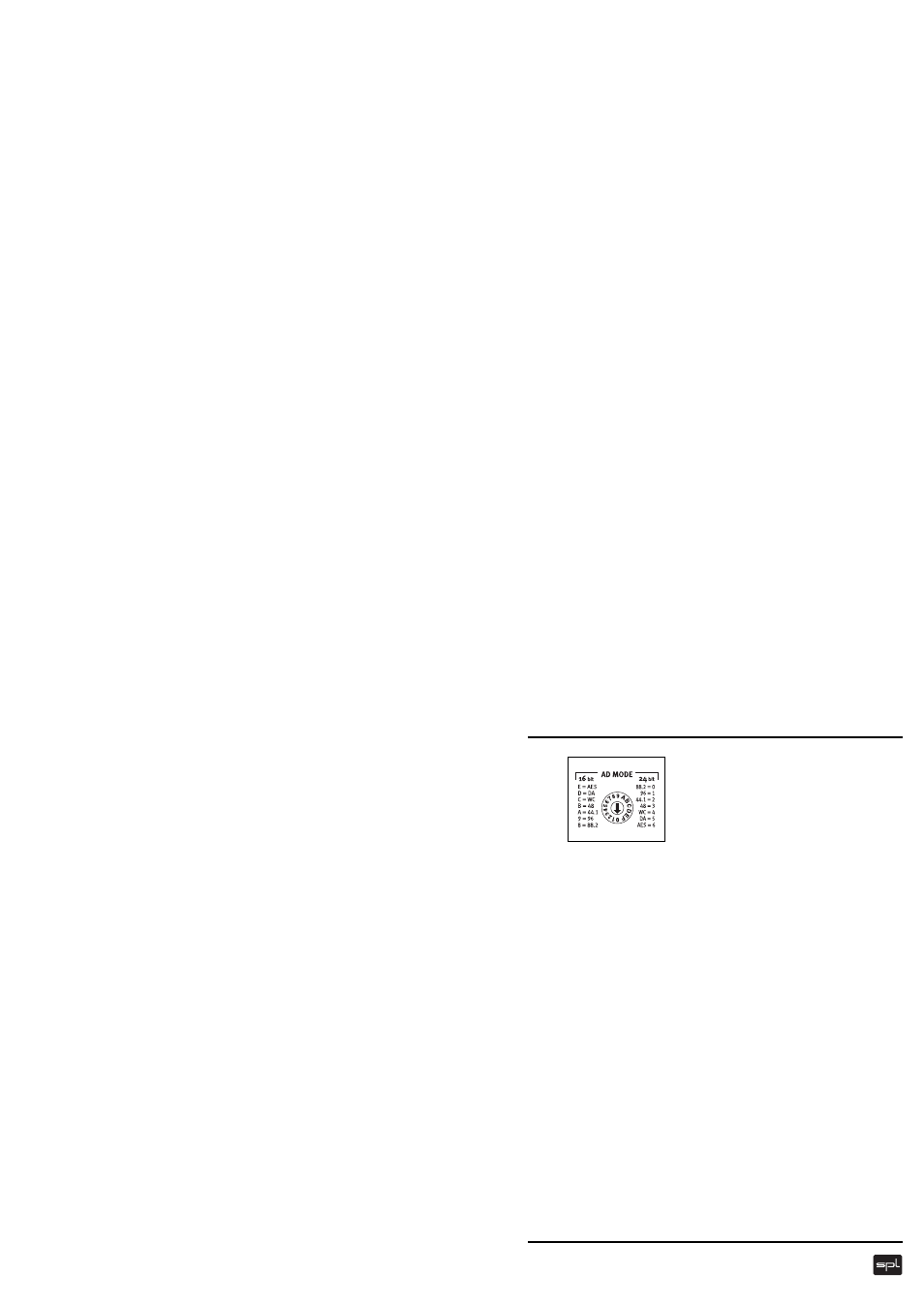

AD MODE Switch
The AD MODE switch is used to set the
desired bit mode and sample rate.The follo-
wing list explains the respective switch
positions:
16 Bit Mode
E = AES Ext. Synchronization to AES clock
D = DA
Synchronization zum D/A converter
C = WC Ext. Synchronization to word clock
B = 48
Int. Synchronization to 48 kHz
A = 44,1 Int. Synchronization to 44,1 kHz
9 = 96
Int. Synchronization to 96 kHz
8 = 88,2 Int. Synchronization to 88,2 kHz
24 Bit Mode
0 = 88,2 Int. Synchronization to 88,2 kHz
1 = 96
Int. Synchronization to 96 kHz
2 = 44,1 Int. Synchronization to 44,1 kHz
3 = 48
Int. Synchronization to 48 kHz
4 = WC Ext. Synchronization to word clock
5 = DA Synchronization to D/A converter
6 = AES Ext. Synchronization to AES clock
Error LEDs
The Error-LEDs indicate faulty audio signals at the S/P-
DIF input or faulty sync signals at the WC/AES SYNC
INPUT (=S/P-DIF output). In this case the respective
signal is muted.
