23
H
ook
up
s

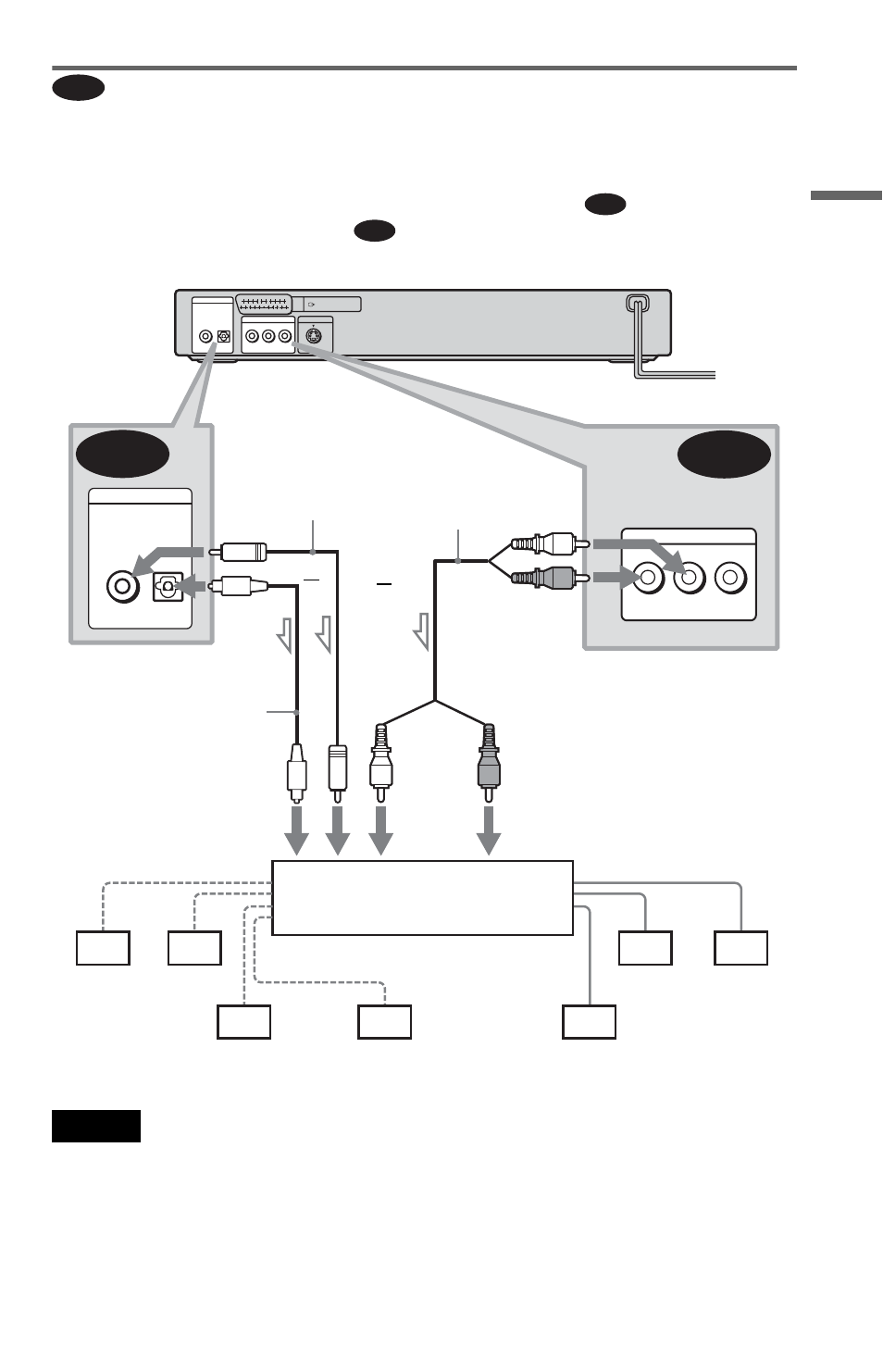

Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro
Logic) decoder and 3 to 6 speakers
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-
channel audio (Dolby Digital) discs.
If your amplifier (receiver) has L and R audio input jacks only, use
. If your amplifier
(receiver) has a digital input jack, use .
Note
When connecting 6 speakers, replace the monaural
rear speaker with a centre speaker, 2 rear speakers
and a subwoofer.
C
C-1
C-2
LINE (RGB) - TV
DOLBY DIGITAL PCM/DTS/MPEG/
COAXIAL OPTICAL S VIDEO OUT LINE OUT
DIGITAL OUT
R -AUDIO- L VIDEO
LINE OUT
R -AUDIO- L VIDEO
DOLBY DIGITAL
PCM/DTS/MPEG/
COAXIAL OPTICAL
DIGITAL OUT
C-2 C-1
CD/DVD player
or
Front (R) Front (L) Rear (R)
Subwoofer
l : Signal flow
Rear (L)
Amplifier (receiver) with Dolby
Surround decoder
Centre Rear (mono)
Stereo
audio cord (not
supplied)
[Speakers]
Coaxial digital cord
(not supplied)
(red) (white)
to coaxial or optical digital
input
Optical digital cord
(not supplied)
Remove jack cap before
connecting (DVP-NS405/
NS410 only)
[Speakers]
or
to audio input
(white)
(red)
to LINE OUT L/R (AUDIO) to DIGITAL OUT
(COAXIAL or OPTICAL)
, continued
