61
R
e
co
rd
in
g/
Pl
ay
bac
k
: Signal flow, ( ): Reference pages

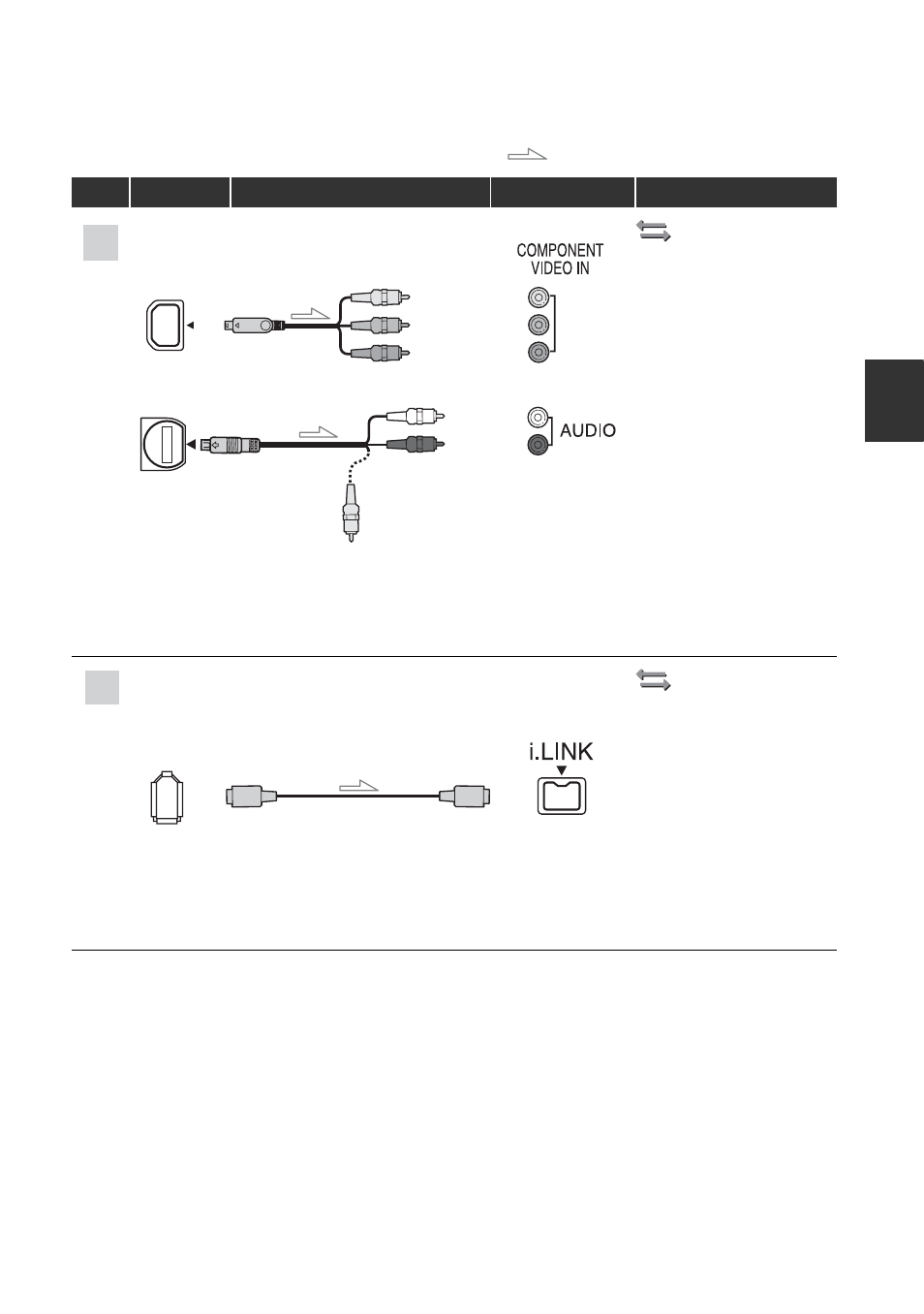

Type Camcorder Cable TV Menu Setting
(IN/OUT REC)
[VCR HDV/DV]
t[AUTO] (82)
[VIDEO OUT]
t[COMPONENT]
t[1080i/480i] (84)
[VIDEO OUT]
t[DOWN CONVERT]
t[SQUEEZE]/
[LETTER BOX]/[EDGE
CROP]* (84)
b Notes
• When you only connect a component video cable, audio signals are not outputted. An A/V connecting
cable is also needed to output audio signals. Connect the white and red plugs of the A/V connecting cable
to the audio input jack of your TV.
(IN/OUT REC)
[VCR HDV/DV] t
[AUTO] (82)
[i.LINK SET]
t [HDV
t DV CONV] t [ON]
(85)
b Notes
• The TV needs to be set so that it recognizes that the camcorder is connected. Refer to the instruction
manuals supplied with your TV.
• This camcorder has a 6-pin i.LINK terminal. Select a cable that fits the terminal on the TV to be attached.
* Change the settings according to the TV connected.
3
D
4
Component video cable
(supplied)
A/V connecting cable
(supplied)
(Green) Y
(Blue) P B /C B
(Red) P R /C R
(Red)
(White)
(Yellow)
2
E
i.LINK cable (optional)
Continued ,
