5

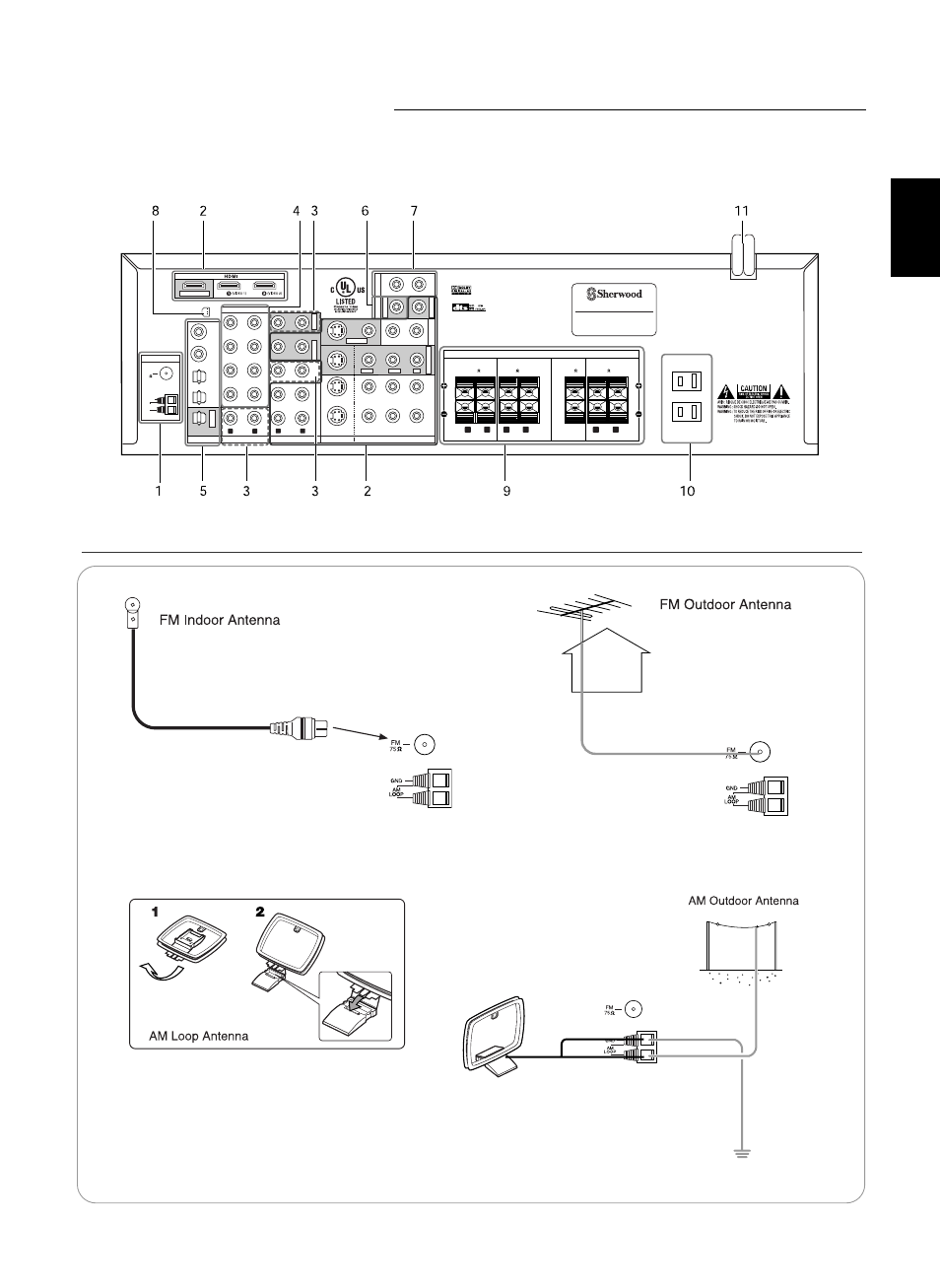

System Connections
• Do not plug the AC input cord into the wall AC outlet until all connections are completed.
• Be sure to observe the color coding when connecting audio, video and speaker cords.
• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.
R L R L R L
FRONT
(6 )
SURROUND
(6 )
CENTER
(6 )
SURROUND BACK
(6 )
SPEAKERS
AC INPUT
120V~60Hz
3.8A
SN.
MADE IN CHINA
DESIGNED IN USA
MODEL NO. RD-7502
AUDIO/ VIDEO RECEIVER
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,and
(2)This device must accept any interference received,
including interference that may cause undesired opera-
tion. AC OUTLET
120V~60Hz
SWITCHED
TOTAL 120W(1A) MAX.
Manufactured under license from Digital
Theater Systems, Inc. U.S. Pat. No's.
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 and other
U.S. and world-wide patents issued and pending.
"DTS", "DTS-ES", "DTS 96/24" and "Neo:6" are trademarks of
Digital Theater Systems, Inc. Copyright 1996, 2003-2005 Digital
Theater Systems, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic", and the double-D symbol are
trademarks of Dolby Laboratories.
CD
T APE
SURR
OUND
CENTER
FR
ONT
DIGI-LINK
PRE OUT
VIDEO
CO
AX 1
OPT 1
OPT 2
VIDEO 1
VIDEO 2
VIDEO 1
VIDEO 2
CO
AX 2
FM
75
R L R L
AUDIO S-VIDEO COMPONENT VIDEO DIGITAL
EXTERNAL IN
Y P R / C R P B / C B
XM
ANTENNA
MONIT
OR OUT
OPT OUT
VIDEO 1 OUT
SUBW
OOFER
P B / C B Y P R / C R
P B / C B Y P R / C R
VIDEO 1 VIDEO 2 VIDEO 1 OUT
MONIT
OR OUT
SUBW
OOFER
SUR.BA
CK
TA PE OUT
AM LOOP
GND
MONITOR OUT
1.
CONNECTING ANTENNAS
• Change the position of the FM indoor antenna until you
get the best reception of your favorite FM stations.
• Place the AM loop antenna as far as possible from
the receiver, TV set, speaker cords and the AC
input cord and set it to a direction for the best
reception.
• If the reception is poor with the AM loop antenna,
an AM outdoor antenna can be used in place of
the AM loop antenna.
• A 75 Ω outdoor FM antenna may be used to further
improve the reception. Disconnect the indoor
antenna before replacing it with the outdoor one.
