Page 39: Input
INPUT
VID 1 CFG
VID 2 CFG
VID 3 CFG
CD CFG
TAPE CFG
AUX
CFG
TUNE CFG
RETURN
D. IN
: OPT 1 / OPT 2 / COX 1 / COX 2 / ANL
V. MODE : AT / CPS / SVD / CPN
AUTO
: OFF / ON
REMST : OFF / ON
SYNC
: 0 / 0~200
RETURN
39
SETTING THE INPUT
Note :
• Depending on the input source, some items other than
“AUTO” (AUTO SURROUND) cannot be selected.
• D.IN (DIGITAL IN) : To assign the connected DIGITAL INs to the desired input.
• V.MODE (VIDEO MODE) : To output the video input signal to be output from the MONITOR OUTs other than the HDMI MONITOR OUT.
• AUTO (AUTO SURROUND) : To select the auto surround mode or the manual surround mode.
• REMST (REMASTER) : To process the input digital signal and to convert its digital sampling frequency to 88.2/96 kHz for a more
detailed sound reproduction.
• SYNC (AV SYNC) : To adjust the time delay of audio signals to synchronize the sound with the picture.
• RETURN : To return to the previous menu.
Digital input default settings (*)
“OPT 1” (OPTICAL IN 1) : VIDEO 1, “OPT 2” : “VIDEO 2”, “COX 1” (COAXIAL IN 1) : CD, “COX 2” : AUX

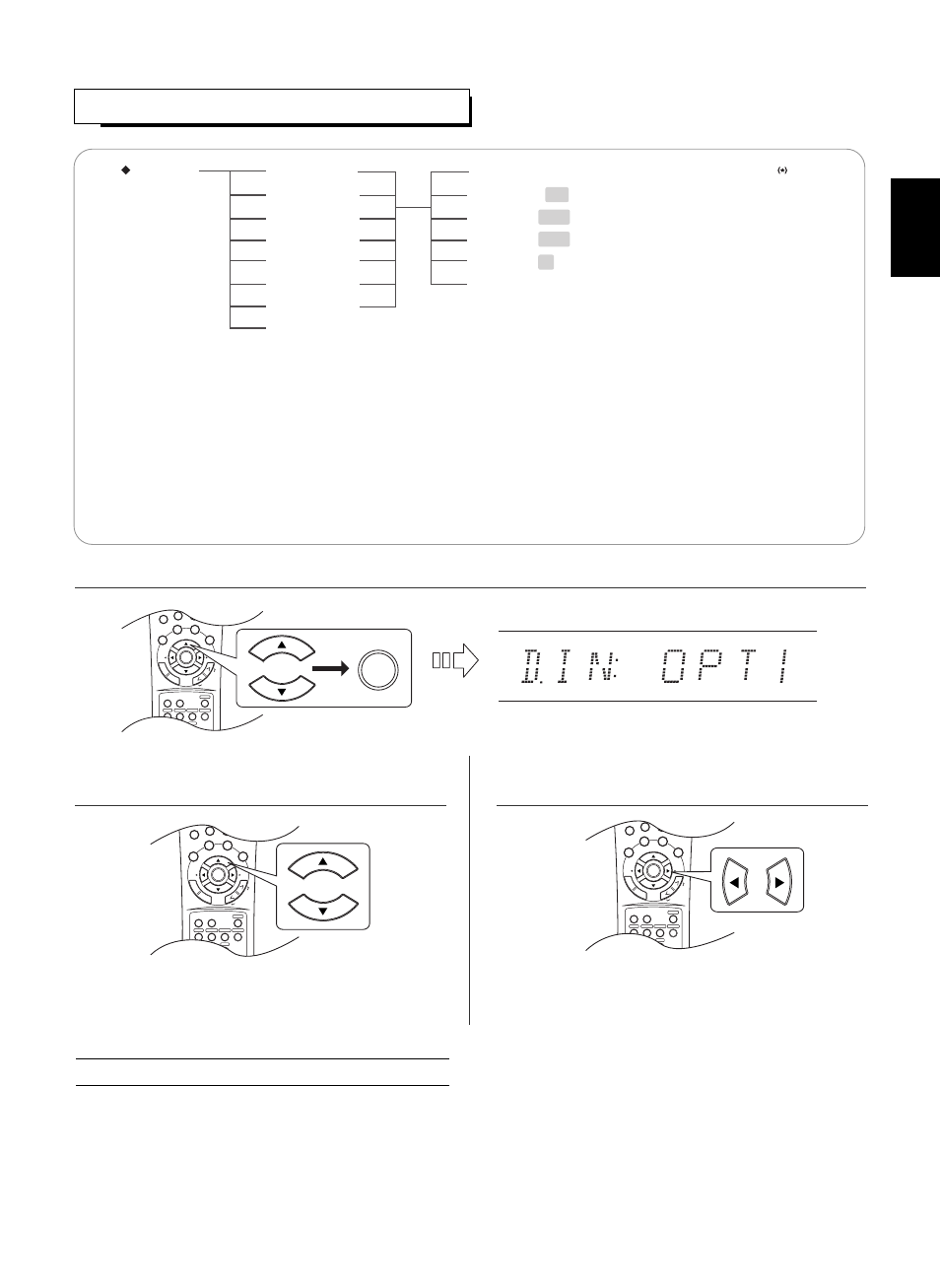

2.
Press the CURSOR UP(
)/DOWN(
) buttons to
select the desired item.
1.
Press the CURSOR UP(
)/DOWN(
) buttons to select the desired input source, then press the ENTER button.
3.
Press the CURSOR LEFT(
)/RIGHT(
) buttons to
set the selected item as desired.
Example: When selecting the VIDEO 1
• You should assign the connected DIGITAL INs to the desired of CD, AUX and VIDEO 1 ~ VIDEO 2.
(For details, refer to "CONNECTING DIGITAL INS and OUT" on page 8.)
• You can select the desired of OPT 1 (optical 1), OPT 2 (optical 2), COX 1 (coaxial 1), COX 2 (coaxial 2) and ANL (analog).
Note :
• In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are selected, the digital
audio signals can be heard from the same DIGITAL IN.
When selecting the DIGITAL IN
