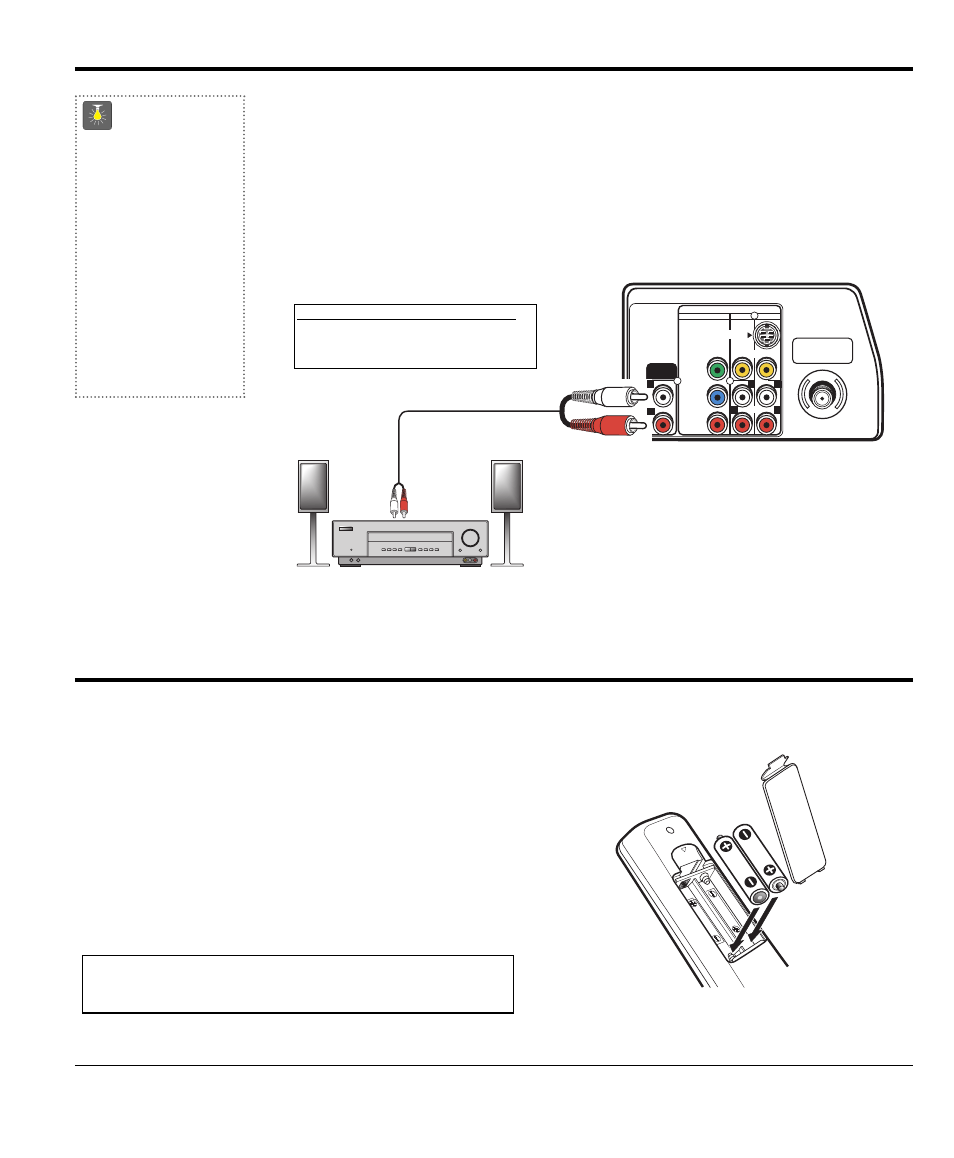

CONNECTING AUDIO OUT JACKS TO A STEREO AMPLIFIER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Connect the TV Audio Out (R/L) to the Stereo Amplifier In (R/L).

Press POWER to turn on the TV. Turn on external equipment also.

Note: DO NOT connect external speakers directly to the TV.

What you will need for connections:

Audio Cable – 1

Using the Audio Output Jacks

QuickTips

Position your TV at
least 2 feet from
stereo speakers. The
magnets in the speak-
ers may affect the
picture quality.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

8

Connect Stereo Amplifier to Audio Out / Remote Control

Operates your TV, VCR, and DVD Player, or Cable converter box. To program the remote
control, see pages 10 ~ 12.

INSTALL BATTERIES AS SHOWN (2 AA, not included)

Notes:

Do not mix old batteries with new ones or mix different types of
batteries together.

Remove the batteries if the remote control will not be used for a
month or more. Weak batteries may leak and cause damage.
(Normal battery life is roughly six months.)

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed
of properly in compliance with all applicable laws. For detailed information,
contact your local County Solid Waste Authority.

Using the Multimedia Remote Control
