Schumacher 200.71230 User Manual
Page 13
•
11
•

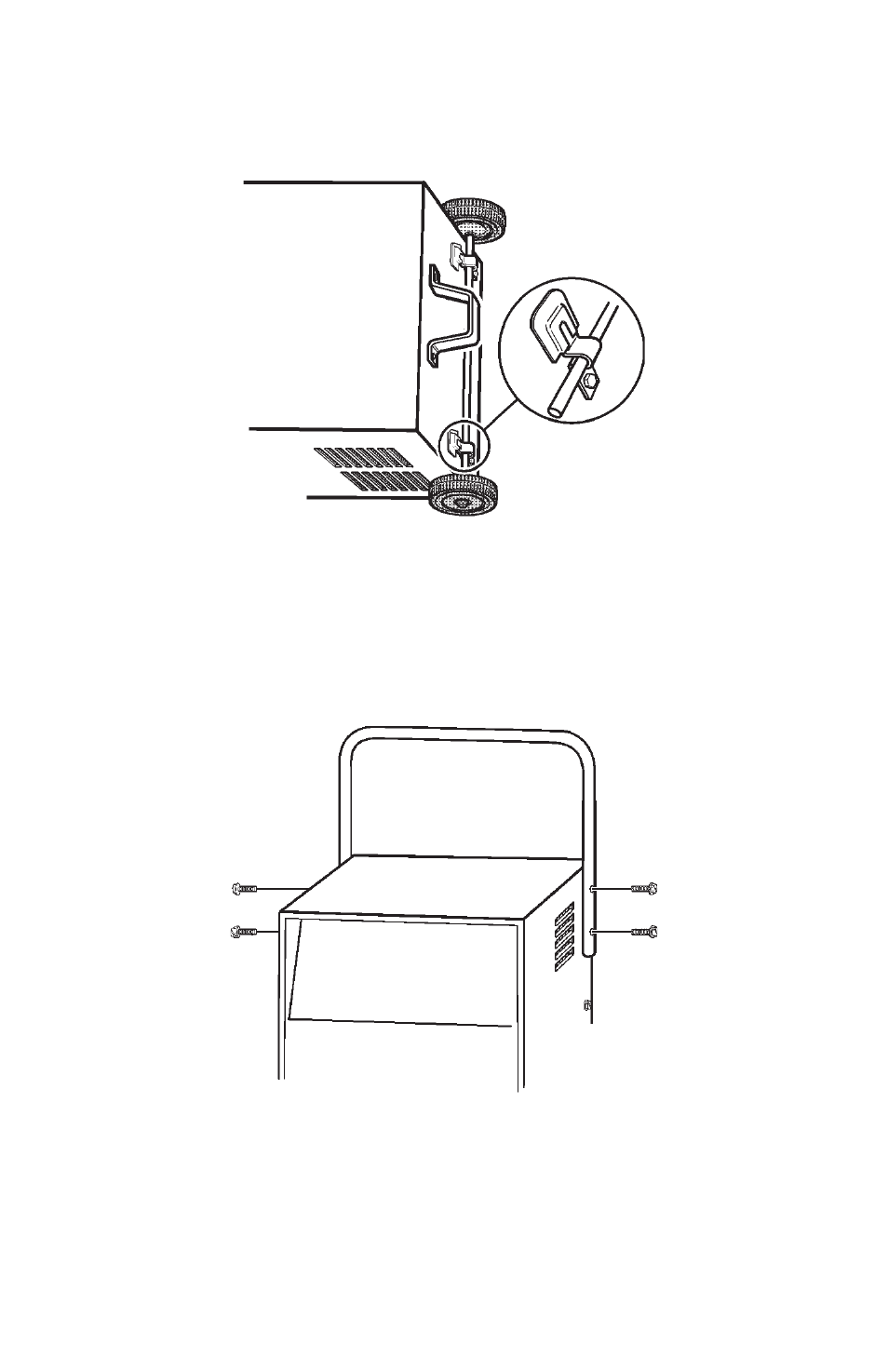

Place the charger on its side. Place one end of each bracket into slot, then
11.3
place the axle assembly under each bracket. Fasten the other side of the
brackets using the two, 10-32 screws provided.
To Attach Handle:
11.4
Turn the charger right side up onto its foot and wheels. Remove the two
top screws from each side of the charger. Align the handle so the screw
holes are aligned with the screw holes on each side of the wheel charger.
Attach the handle using the same screws.
