Schumacher 200.71230 User Manual
Page 12
•
10
•

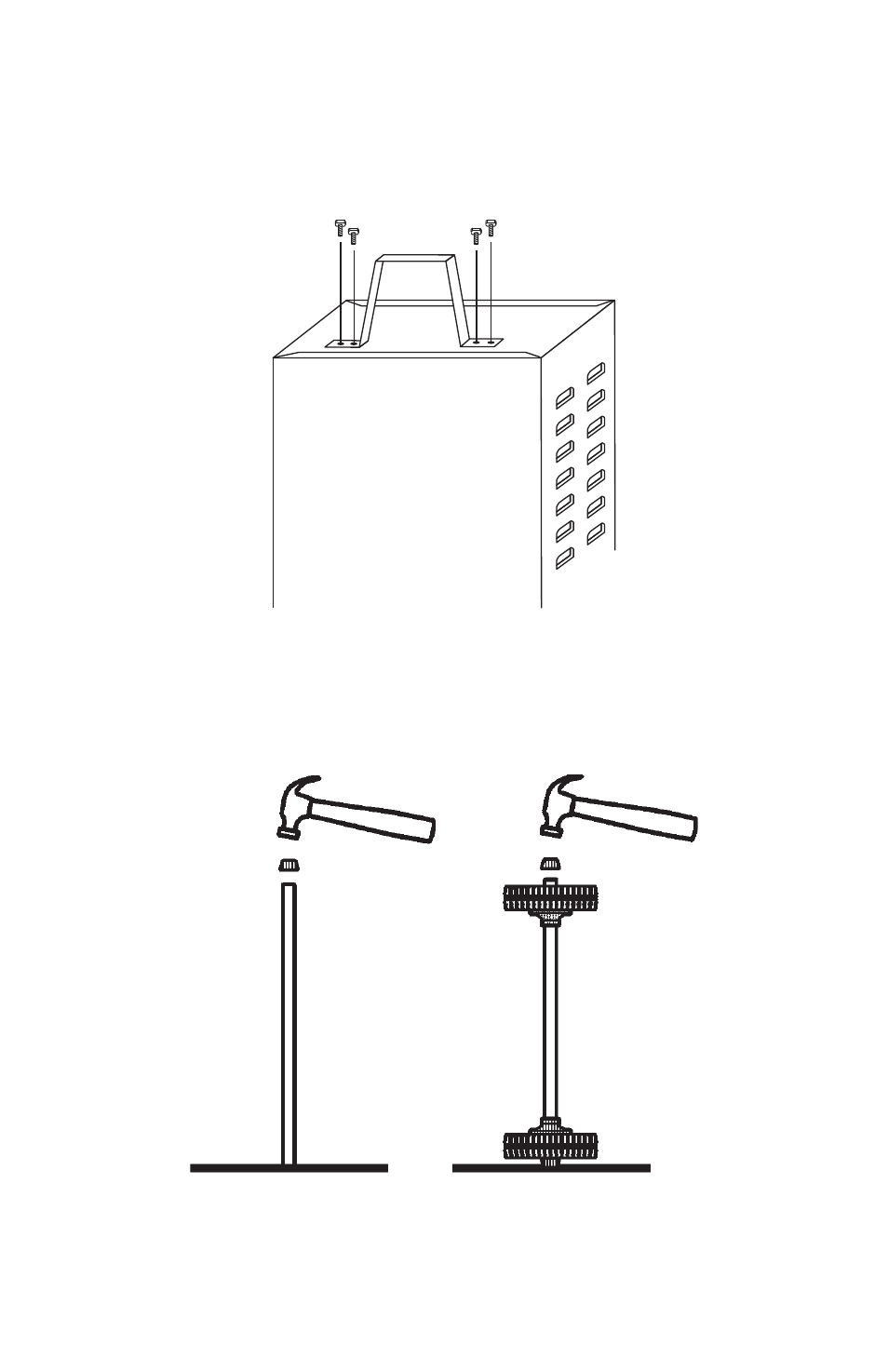

To attach the axle assembly:
11.1
Remove charger from packing materials and place upside down on a flat
surface. Attach mounting foot and secure with the four, 1/4-20 thread cut-
ting screws.
Hold axle upright on floor or work surface. Then, using a hammer, tap one
11.2
of the plastic axle caps onto the top end of the axle. Be sure to tap the
axle cap on straight. Slide both wheels onto the axle with the recessed
hubs facing out as shown. Install the second axle cap.
