6
Pic.
1

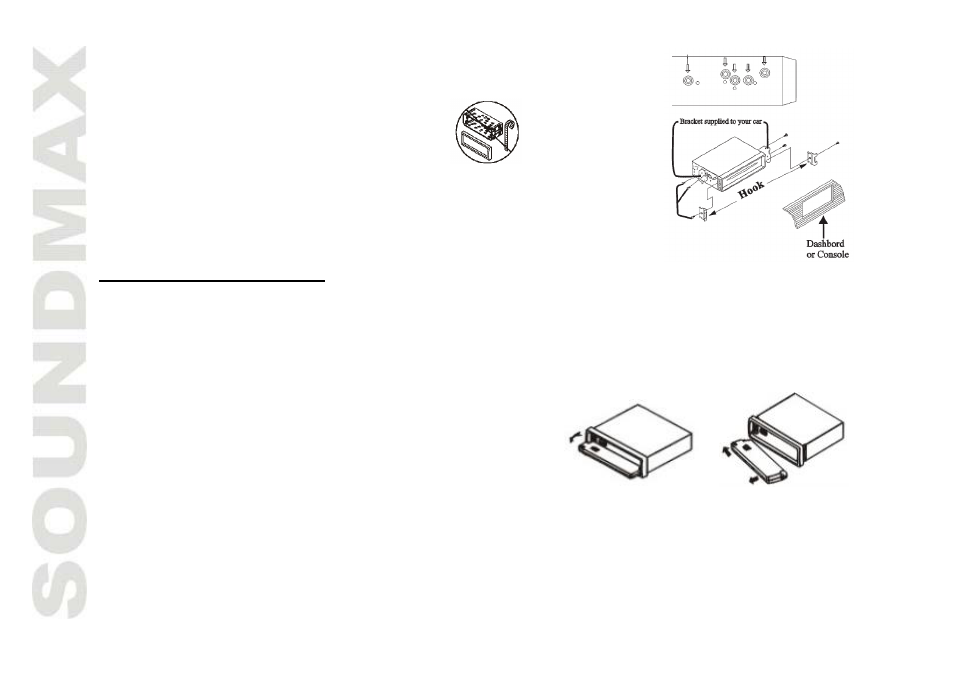

Use either truss screws (5 x 8mm) or flush surface screws (4 x
8mm), depending on the shape of the screw holes in the
bracket.
2. Screw.
3. Factory radio mounting bracket.
4. Dashboard or Console.
5. Hook (Remove this part).
Note: The mounting box, outer trim ring, and the Half-sleeve are
not used for this method of installation.
Detachable control panel
Detaching the control panel
1.
Press the OPEN button on the front panel. The
panel will go down (pic. 1).
2.
Push the panel to the left and then pull it towards
you (pic. 2).
Attaching the control panel
1.
Insert the left side of the control
panel into the main unit (pic. 3).
Note: the control panel must be attached
into the T-Joint.
2.
Press the right side of the control
panel until a “click” sound is heard.
3.
Close the panel.
Pic.
2
