5

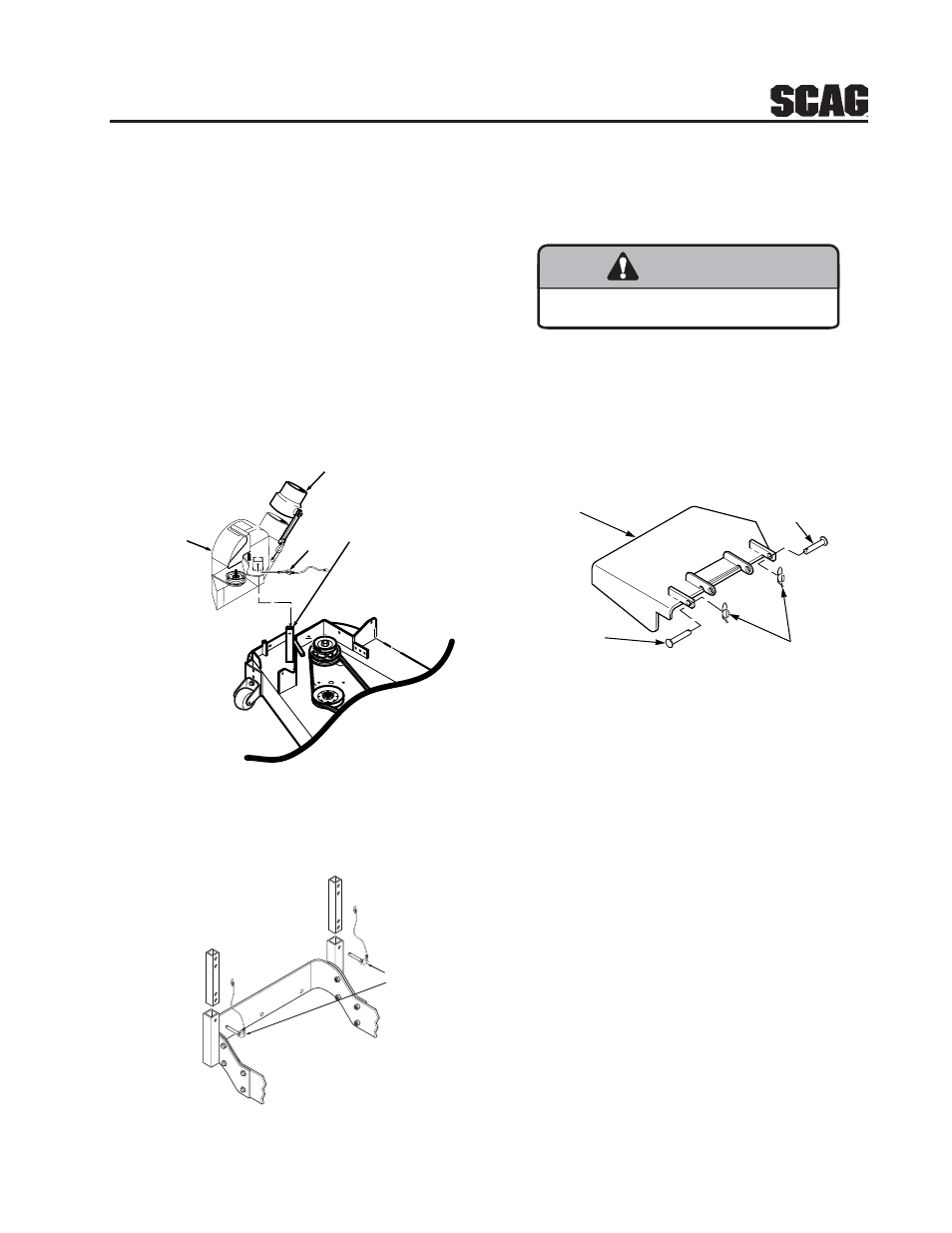

1. Prepare the work area making sure that it is a

clean, safe environment.

2. Remove the bag assemblies from the grass

catcher.

3. Remove the rubber strap holding the adapter to

the blower assembly. See Figure 6.

4. Remove the pin holding the blower assembly to

the mounting bracket on the cutter deck and

remove the blower assembly. See Figure 6.

Figure 6

5. Remove the two (2) pins holding the hood

assembly to the mounting posts on the rear of the

machine. See Figure 7.

Figure 7

4.1 GRASS CATCHER REMOVAL
INSTRUCTIONS

6. Remove the hood assembly.

7. Re-install the side discharge chute to the opening

on the cutter deck. Replace the two outside

mounting bolts on the discharge chute with the

clevis pins (p/n 04064-15) and rue cotter pins

(p/n 04069-03). See Figure 8.

Figure 8

BLOWER
ASSEMBLY

MOUNTING
BRACKET

PIN

ADAPTER

RIGHT SIDE OF

CUTTER DECK SHOWN

(Note: Some parts not shown for viewing purposes.)

GC-STC removal art 1

GC-STC removal art 2-A

REMOVE
MOUNTING
PINS

CLEVIS PIN
P/N 04064-15

CLEVIS PIN
P/N 04064-15

RUE COTTER PIN
P/N 04069-03

DISCHARGE
CHUTE

GC-STC removal art 3

WARNING

WARNING

DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
