13
triggered during schedule “A” period.

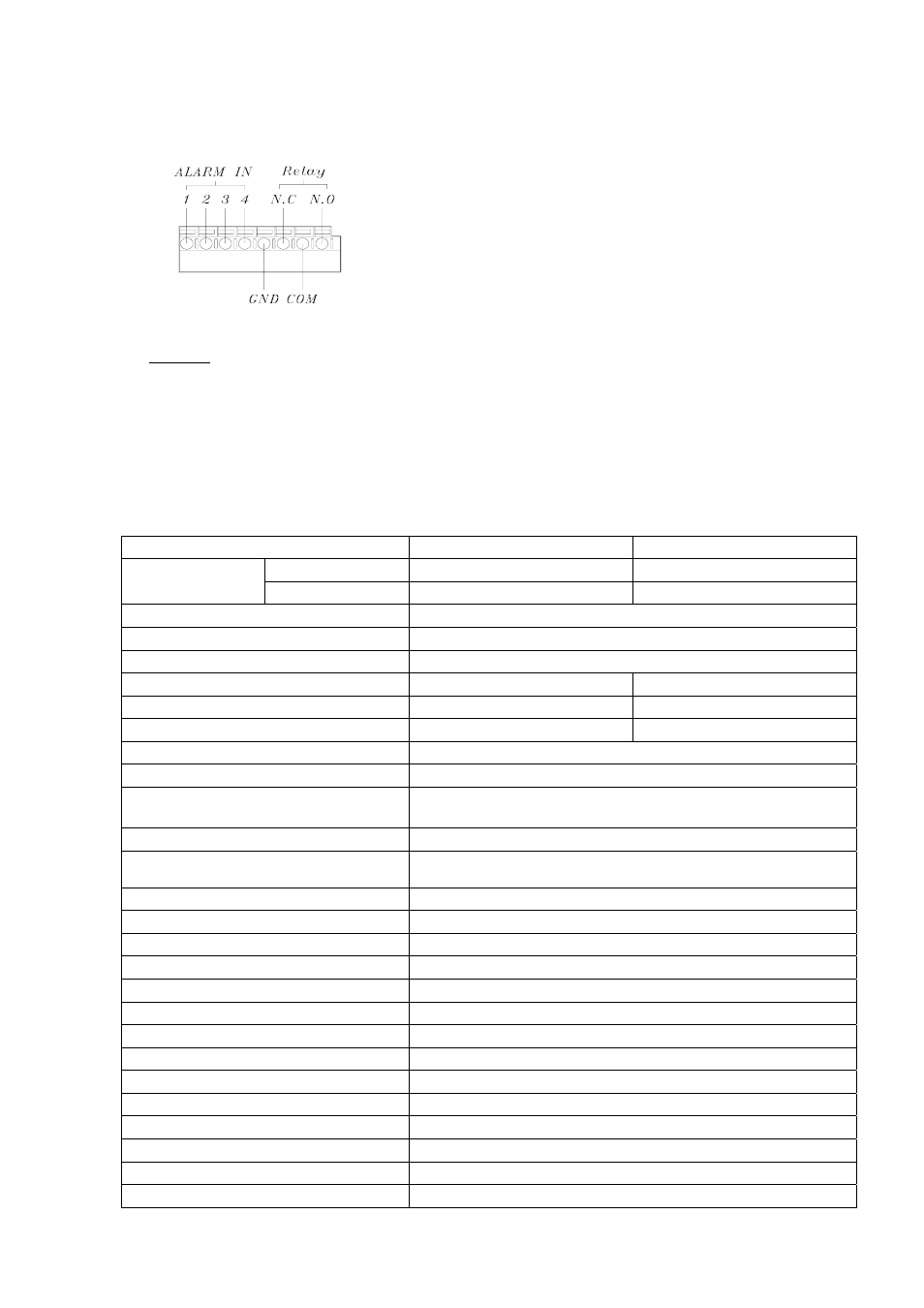

Terminal connector
Pin 1-4 ----- ALARM1-ALARM4 Camera alarm input.
GND ----- GND
N.C ----- Relay N.C Alarm output N.C
COM ----- Relay COM
N.O ----- Relay N.O Alarm output N.O
8 Network
Network function is optional, please ensure that you have proper DVR model for network installation.
Network setup in this DVR can be done only by TCP/IP network remote computer. With network
function the DVR will support remote recording and remote surveillance. Please refer to network
setup manual for instructions.
SPCIFICATIONS
Image System NTSC PAL
Display 720Ч480 720Ч576
Resolution
Record 640Ч224 640Ч272
Video Input BNC × 4
Video Looping output BNC × 4
Video Output BNC × 2
Display Frame 4 × 30 fields/sec 4 × 25 fields/sec
Recording Frame Rate (QUAD) Max 30 fps Max 25 fps
Recording Frame Rate (MUX) Max 30 / 4 fps Max 25 / 4 fps
Storage Media Max 2 IDE Hard Disks
Image Format M-JPEG
Compress Rate
Low 8K bytes/field Medium 10K bytes/field
High 15K bytes/field Best 20K bytes/field
Recording Mode Manual / Alarm / Schedule
Playback Speed
Fast Forward Ч2 Ч4 Ч6 / Fast Reverse ×6
Frame by Frame Forward Playback
On Screen Display & Setup Time/Date/Setup Menu
Alarm Input ×4
Relay Output NO or NC Programmable Contact ×1
Password Control One for HDD format
Event List Max. 63 records/H.D.D
Motion Detection Yes
Buzzer Yes
Video loss
Yes
Key Lock Yes
Network Function Optional
Backup CF Card
Power Input AC 90-260 V Input ( 60/50 Hz )
Dimensions 55mm (H) × 432mm (W) × 321mm (D)
Weight kg 4.5kg (w/o H.D)
