Speco Technologies LPRB922 User Manual
Page 10
4.

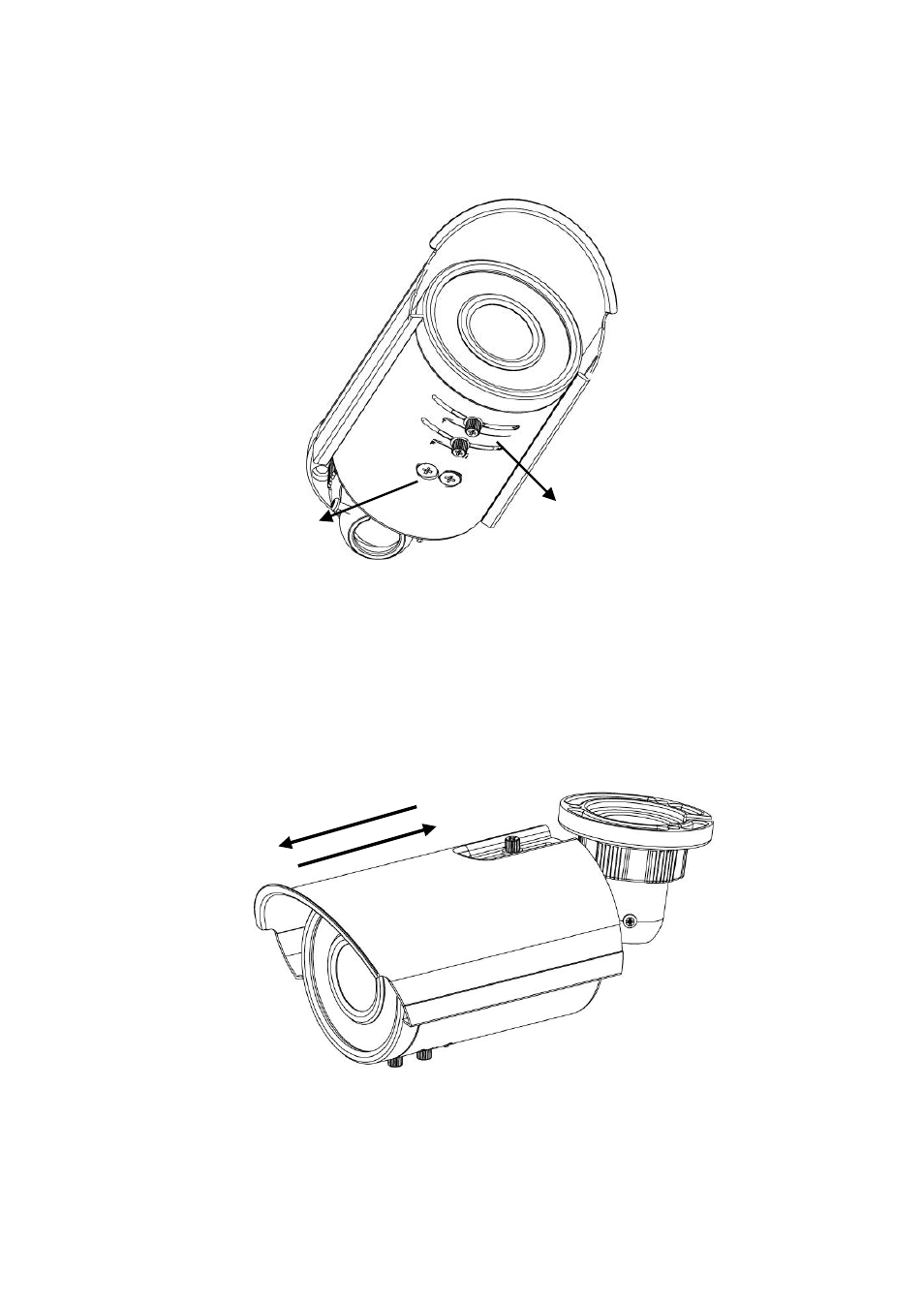

Adjust the lens: loosen the Tele/Wide or Far/Near screw counterclockwise and then
adjust it according to your needs. After adjustment, be sure to lock it tightly to prevent
water leaking into the body of the camera.
5.
Adjust the sunshield: loosen the screw counterclockwise, move the sunshield
forward or backward and then turn the screw clockwise to fix the position of the
sunshield. Be sure to adjust the sunshield in coordination with the lens to avoid
reflection problem
s.
move forward/backward
Warning! To avoid water
leaking, do not loosen
these 2 screws.
Warning! To avoid damage to
the lens, do not adjust the Tele/Wide
or Far/Near screw beyond the
marked lines.
Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516
www.specotech.com
Speco Technologies is constantly developing product improvements
We reserve the right to modify product design and specifications without notice and without incurring any obligation
Rev. 3/15/10
