User's Manual
17
CHAPTER 2
DVD IN
SAT IN
HDMI OUT MANUFACTURED U NDER LICENSE FR OM DIGITAL THE ATER SYSTEMS, INC. US P AT. NO. 5,451,942, 5,956,674, 5,974,3 80, 5,978,762 AND OTHE R WORLD-WIDE P ATENTS ISSUED A ND PENDING. "DTS", "D TS-ES EXTENDED SURR OUND" AND "NEO:6" ARE TRADEMARKS OF DIGITAL THEATER SYSTEMS, IN C. COPYRIGHT 199 6, 2000, DIG ITAL THEATER SYSTEMS, IN C. ALL RIGHTS R ESERVED.
MANUFACTURED UND ER LICENSE FROM DOLBY LA BORATORIES. "DOLBY", "PRO -LOGIC" AND TH E DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES.

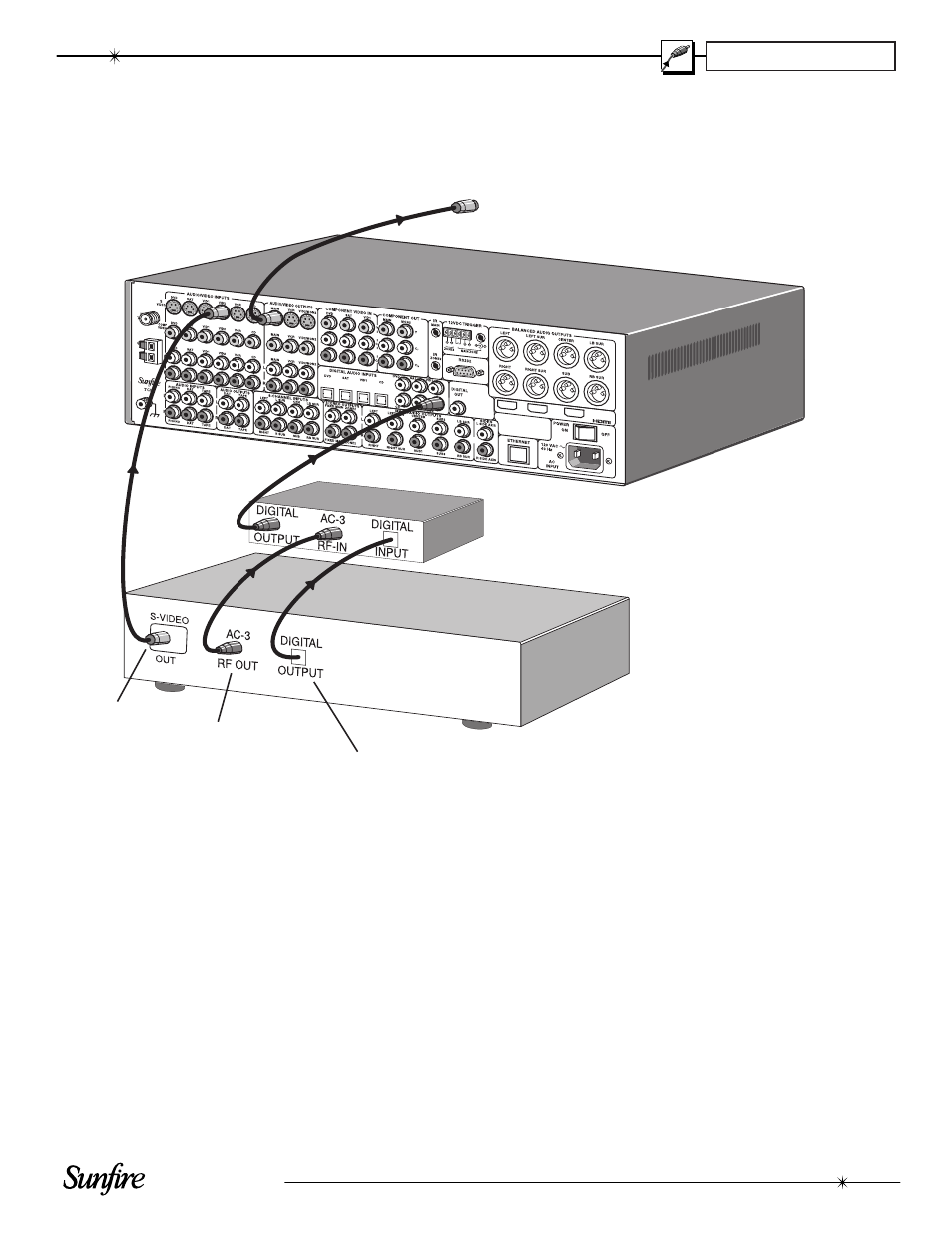

LD connections: external RF Demodulator and S-Video
A suitable external RF demodula-
tor must be used to convert the AC-3
RF output of LD players. Ideally, the
demodulator should also have a
digital bypass (pass-through) feature.
Lexicon and B&K are among several
com pa nies making excellent de mod u-
la tors with this feature.
If your LD and TV Monitor both have
S-video, they can be connected as
shown. This gives a better picture
than composite video.
Note: you must also connect the
player's two-channel audio outputs
if you want to play it in Zone 2 when
the Main Zone is playing a different
source.
LD player
RF demodulator
digital
audio
signal
RF
signal
S-video signals
from TGP-5 MAIN S-video output
to TV Monitor's S-video input
S-video signal
From: LD Player
S-video output
To: TGP-5 VID2
S-video input
RF signal
From: LD Player
RF output
To: Demodulator
RF input
Digital audio signal
From: LD Player
Digital output
To: Demodulator
Digital input
