5-21

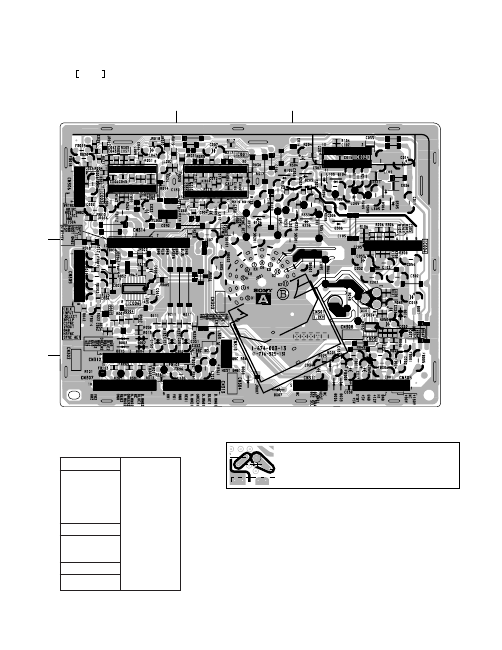

— A BOARD —
(a)
VIDEO
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
• A BOARD
SEMICONDUCTOR LOCATION
IC
IC001 A–2
IC002 A–3
IC003 A–1
IC004 B–3
IC005 B–3
IC006 B–1
TRANSISTOR
Q001 B-3 –
Q006 B-1 1
DIODE
D001 B-3 –
* : Refer to Terminal name of semiconductors
in silk screen printed circuit (see page 5-6)
D002 B-1 –
D003 B-1 –
D004 B-1 –
D005 C-3 –
D007 C-2 –
D008 C-2 –
D014 B-3 –
D015 B-1 –
D104 A-3 –
D105 A-2 –
D106 A-2 –
D111 B-1 6
D204 A-3 –
D205 A-3 –
D206 A-3 –
D211 B-1 6
D304 A-3 –
D305 A-3 –
D306 A-3 –
D311 B-2 6
*
*
1 2 3
A
B
C
