Sony STR-DG710 - Manual (Page 24)

24 GB

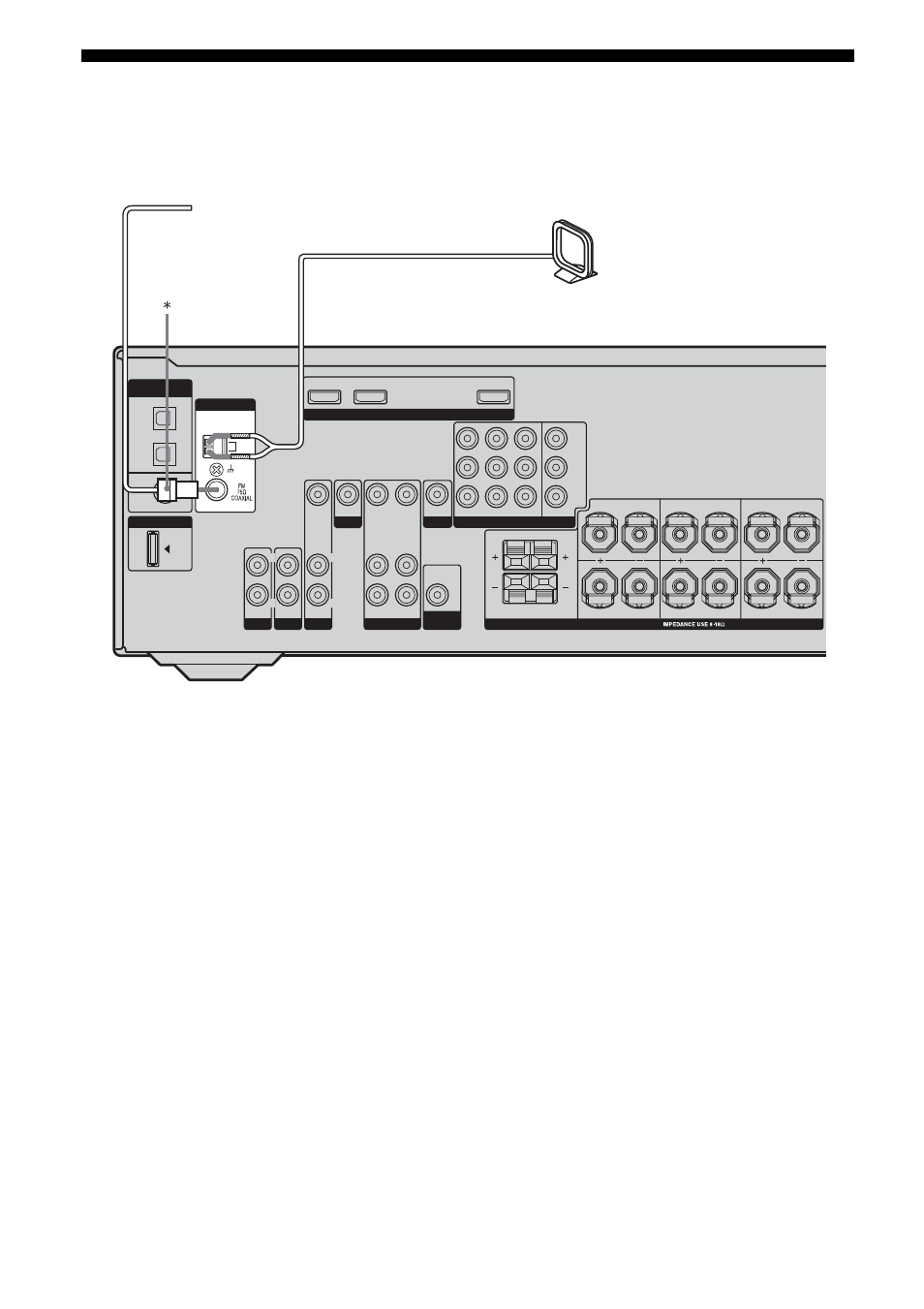

4: Connecting the antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
DIGITAL
DMPORT
OPTICAL
SAT
IN
DVD
IN
COAXIAL
VIDEO 1
IN
HDMI
DVD IN VIDEO 2/BD IN OUT
TV
IN
SA-CD/CD
IN
SAT
AUDIO IN
VIDEO IN
DVD
VIDEO IN
VIDEO 1
AUDIO OUT
VIDEO OUT VIDEO OUT
AUDIO IN
AUDIO OUT
VIDEO IN
L
R
L
R
L
R
SUB
WOOFER
MONITOR
SAT IN
COMPONENT VIDEO
DVD IN VIDEO 1 IN
Y
P B /C B
P R /C R
MONITOR OUT
SPEAKERS
FRONT B FRONT A
L
L
R
R
SURROUND
L
R
CENTER
SURROUND BACK
ANTENNA
AM
(ASSIGNABLE)
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial)
(supplied)
