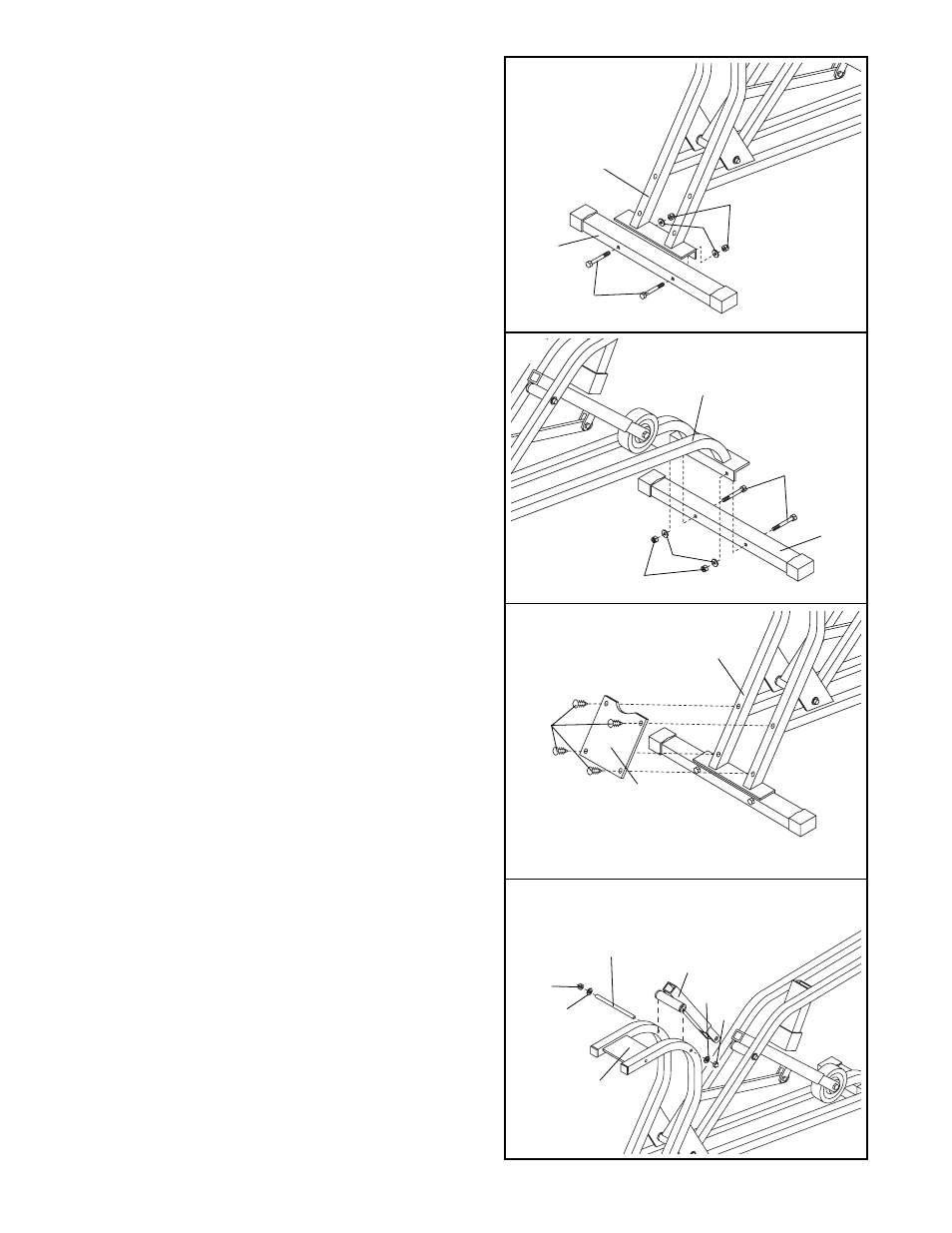

1. Before beginning assembly, make sure that you
have read and understand the information on
page 4.
Attach one of the Stabilizers (31) to the Main Frame
(1) with two M6 x 60mm Bolts (53), two M6 Flat
Washers (55), and two M6 Hex Nuts (54).
3
1
31
54
55
53
1
1
45
34
54
55
1
31
53
2. Attach the other Stabilizer (31) to the Main Frame
(1) with two M6 x 60mm Bolts (53), two M6 Flat
Washers (55), and two M6 Hex Nuts (54).
3. Attach the Front Cover Panel (34) to the Main
Frame (1) with four Tree Fasteners (45). If you can’t
push the Tree Fasteners in with your fingers, tap
them in with a rubber mallet.
4. Lubricate an M8 x 157mm Axle (13). Attach the
Handlebar Swing Arm (5) to the Main Frame (1)
with the M8 x 157mm Axle, two Rubber Washers
(51), and two M8 Acorn Nuts (56).
4
1
51
56
51 56
5
Lubricate—13
