Sanyo DC-TS750 User Manual
Page 6
5

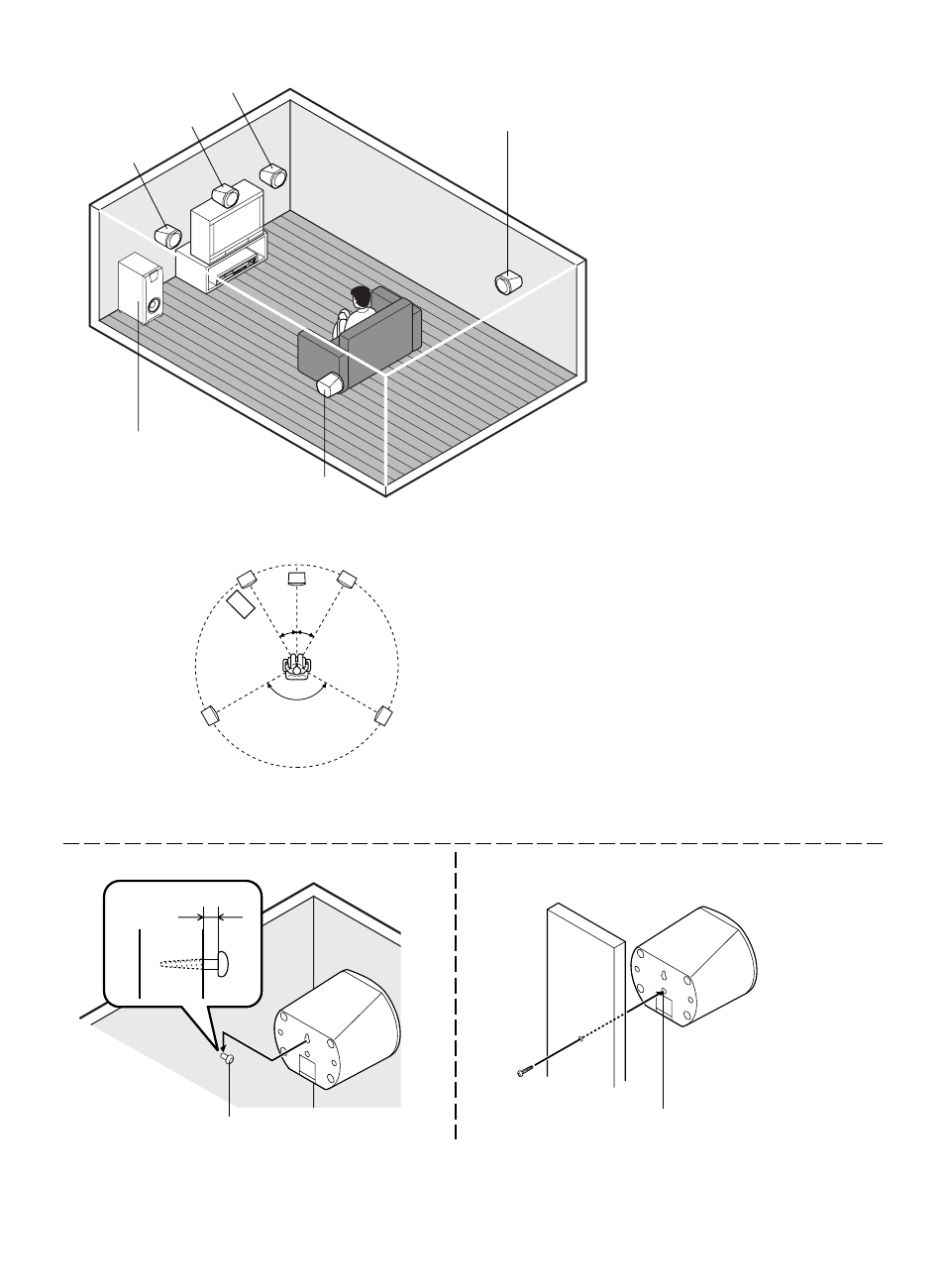

Speaker placement
Example: To hang the speaker on a wall
Example: To mount the speaker with a stand
Approx. 3 mm
Stand (not supplied)
Screw (supplied)
Built-in special nut, 3/16 inch diameter
Round head screw (not supplied)
Surround right speaker
Surround left speaker
Subwoofer
Front right speaker
Front left speaker
Centre speaker
The supplied speakers have built-in magnetic stray
field compensation. They may be placed close to a
TV without affecting the colour purity.
The five speakers are all the same and can be used
for front left, centre, front right, surround left and
surround right speakers.
Note: Take care when installing the speakers. They may cause damage or serious injury should they fall from their mountings.
Front left speaker
Front right speaker
Centre speaker
Surround left
speaker
Surround right
speaker
Subwoofer
120
°
30
°
30
°
The front, centre, and surround speakers should be placed at
approximately the same distance from the listening position.
Place the front left and right speakers either side of the TV.
Place the centre speaker directly above the TV.
Place the surround speakers either sides of the listening
position, or slightly to the rear, approximately 60 cm ~ 1 meter
higher than ear level.
The subwoofer can be placed near the front speaker and not
too far from the TV.
Note:
-
The angles in the diagramme are approximate.
-
Please refer to “Setting audio” on page 19.
