4
BASIC CONNECTIONS
After all connections have been made, connect the mains lead to an AC outlet .
Note:
-
Do not connect the mains lead to an AC outlet until all connections have been made.
- The system is not completely disconnected from the mains when the z /ON button is set to the z position.

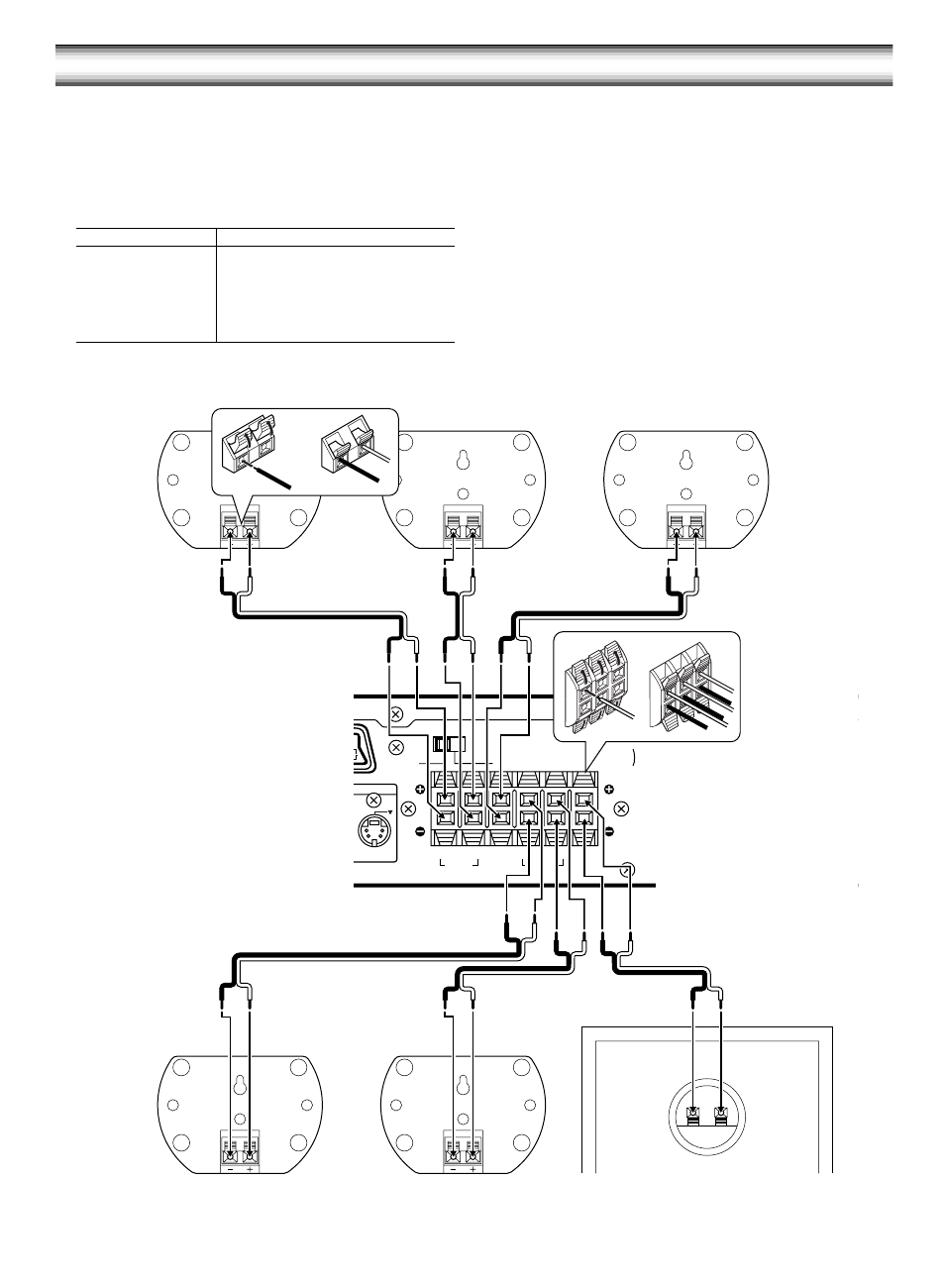

Speaker connections
To achieve proper stereo reproduction, connect the speaker wires without shorting to adjacent wires as shown in figure.
Speaker wire colour Use
Black and Red Front right speaker
Black and Blue Front left speaker
Black and Green Centre speaker
Black and Orange Surround right speaker
Black and Gray Surround left speaker
Black and Brown Subwoofer
VIDEO (AUDIO) IN
EXT.ANT
FM75
Ω
AM
LOOP
ANT
R L VIDEO S-VIDEO
MONITOR OUT
FRONT/CENTER/SURROUND: 8 Ω
SUBWOOFER: 4 Ω
SPEAKERS
R R L L CENTER SUB WOOFER
FRONT SURROUND
AV EURO / TV(AUDIO)IN
(RGB OUT)
VIDEO OUT SELECT
RGB S-VIDEO
INPUT
Front right speaker Front left speaker Centre speaker
Surround right speaker Surround left speaker Subwoofer
Blue Green
Orange Gray Brown
JCX-TS750
Black Red Black Black
Black
Black Red
Black Black
Black Red
Black Red
Black Red Black Red Black Red
Note:
The SPEAKERS sockets are designed for use only with the supplied
speakers. Do not use with other speakers. Connecting other speaker may
damage the speaker and/or the unit.
If using other speakers, check their impedance/input power.
FRONT/CENTER/SURROUND: 8
Ω
or more/40 W or more
SUBWOOFER: 4
Ω
or more/80 W or more
