Instruction Manual

40

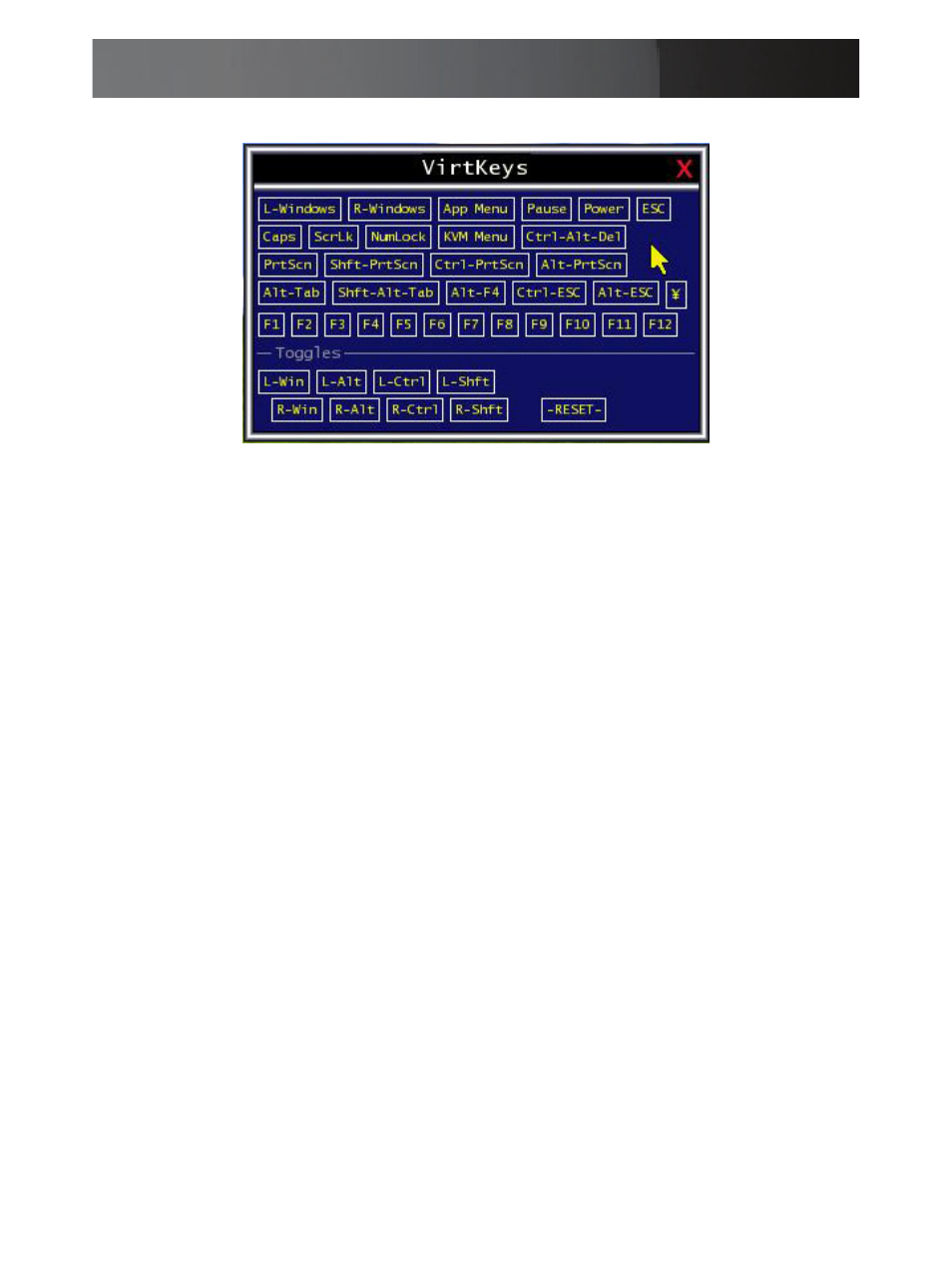

VirtKeys Menu

Clicking any button in the top half of the window simulates pressing and
releasing the indicated key. In the bottom area of the screen, clicking will
simulate the indicated Meta key being pressed. You may then click in the
top part to send another key and release the Meta key at the same time.
Alternatively, you may move the mouse outside this window, press the
regular key, and then choose -RESET- to release all depressed keys. The
VirtKeys menu can be left open while using the host system. You can then
click the required button at the suitable time, and still interact with the host
in a normal fashion.
Examples:

[Ctrl]-[Alt]-[F4]

: Use L-Ctrl then L-Alt in the Toggles area, then click F4.

To bring up the Start menu under Windows: Click the L-Windows button


at the top left of the above window.
