Fog Lamps

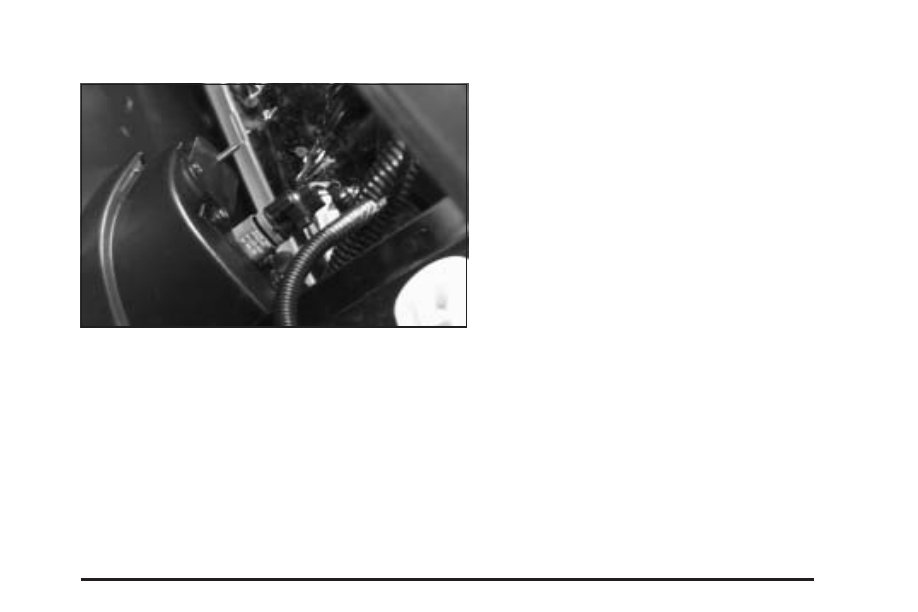

1. Reach through opening in lower front fascia to gain
access to the fog lamp bulb electrical connector.
2. Disconnect bulb electrical connector. Lift locking tab
and pull the electrical connector rearward to remove
the connector.
3. Rotate the bulb socket counterclockwise to
remove it.
4. Remove the bulb and replace it with the
appropriate bulb.
Sidemarker Lamps
1. Follow steps 1 through 3 under Headlamp, or Front
Turn Signal and Parking Lamps procedure.
2. Pull the side marker bulb out of the side marker
bulb socket.
3. Push the new bulb into the bulb socket.
4. Insert the side marker bulb assembly into the side
marker lamp housing.
5. Rotate the side marker bulb assembly clockwise
until seated.
6. Align the lower attachments tabs of the side marker
housing with the front fascia notches. Lower side
marker housing into place.
7. Install the side marker fasteners.
5-57
