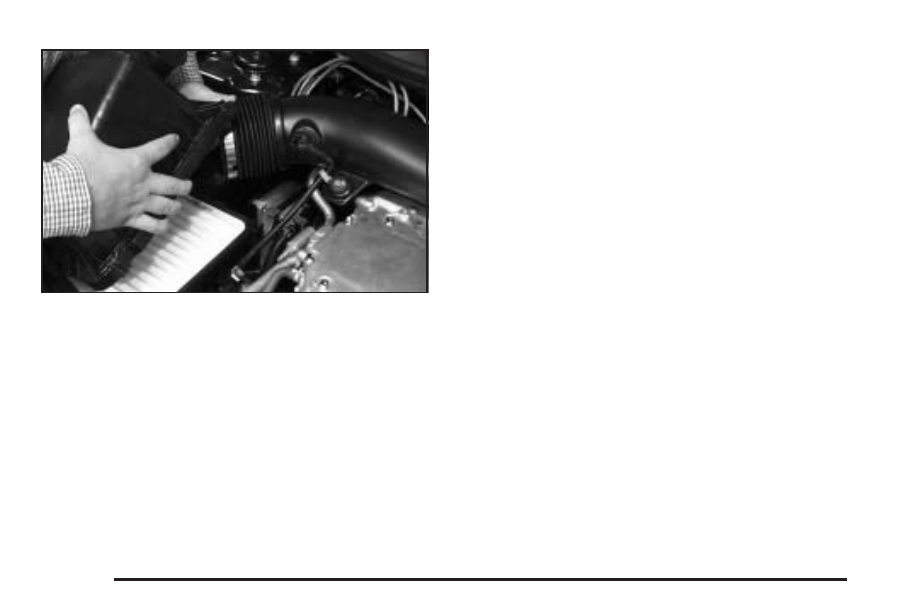

5. Remove air cleaner cover assembly and air filter

element.

If the air filter element is dirty, you should replace it.
If it is only dusty, it may be cleaned by blowing
compressed air through it from the clean side.

Make sure you are away from the engine
compartment when cleaning the air filter with
compressed air.

Wipe all dust from inside of the housing and inspect
the air cleaner and air outlets duct for cracks,
cuts and deterioration. The air outlet duct must be
replaced if damaged.

6. Install the air filter element.

7. Install the air cleaner cover, making sure that the

cover hinges are properly engaged into position.

8. Latch the air cleaner cover into position using the

clips on the side of the air cleaner box.

9. Connect the electrical connection to the mass air

flow sensor, if applicable.

10. Reposition the air cleaner outlet duct assembly.

11. Tighten the air cleaner outlet duct clamp.

5-24
