Installation and usage, Instruction manual – StarTech.com HSB220SAT25B User Manual
Page 5
Instruction Manual
2
Installation and Usage
Hardware Installation
To prepare HSB220SAT25B for installation within the computer:
Connect the 15-pin SATA Power Connector and 4-pin LED connector
1.
(provided by an included LP4-to-4-pin LED/15-pin SATA Power Y-cable)
to the appropriate ports on the rear panel of HSB220SAT25B, as
shown above.
Repeat this connection with the second (included) Y-cable, connecting
to the remaining ports on the rear panel of HSB220SAT25B.
Connect one end of a SATA Data Cable (provided) to each of the SATA
2.
Data ports on the HSB220SAT25B rear panel.

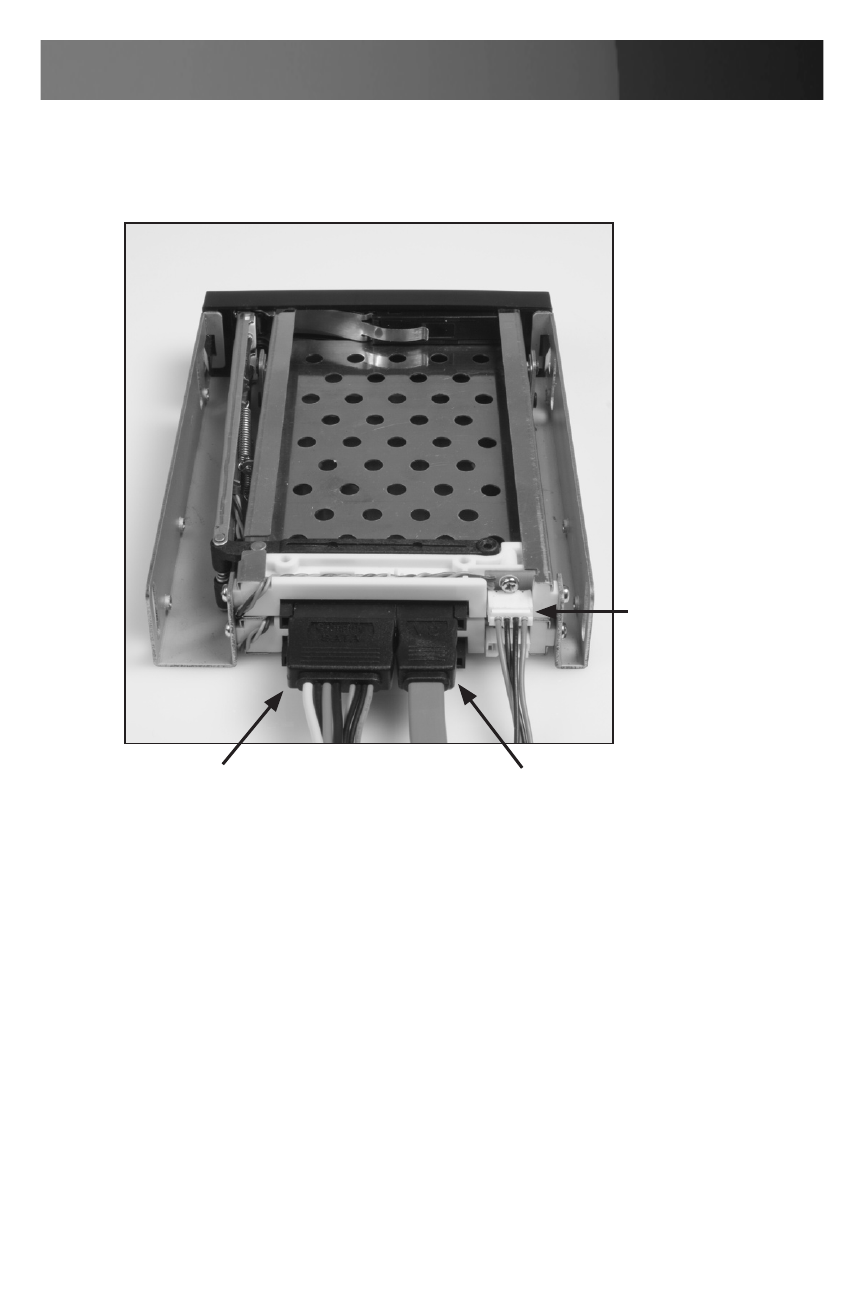

(4-pin) LED
Connector
(7-pin) SATA Data
Connector
(15-pin) SATA
Power Connector
