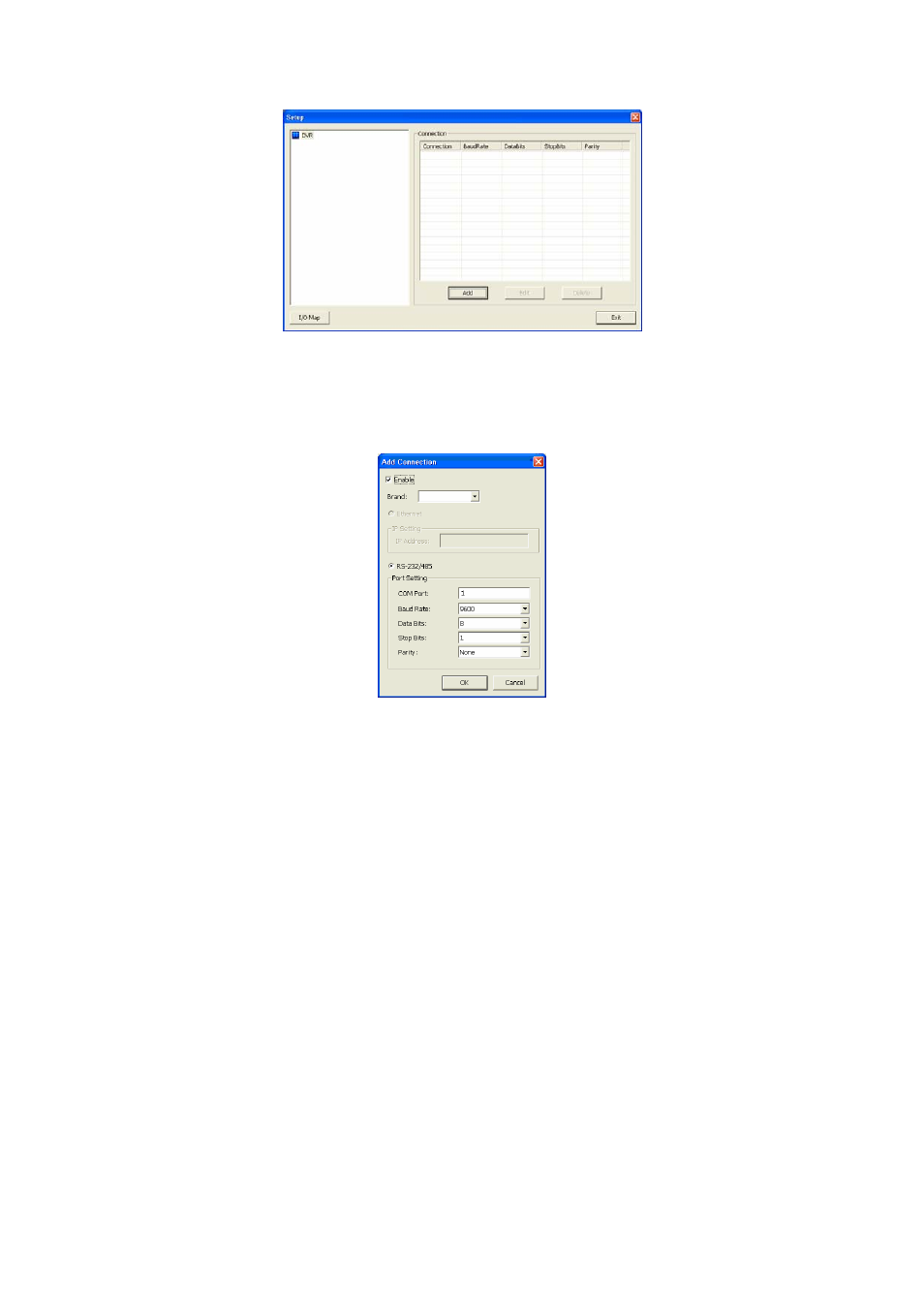

4.7.1 To Setup External I/O Box
The DVR system can connect the external I/O box for more installed of I/O devices.
1. Click Add .
2. Mark Enable box to enable this external I/O box.
3. Select the Brand of external I/O box from drag down list.
4. In Port Setting , different brand of external I/O box may have different port parameters.
Please refer to the external I/O box’s user manual for port setting information. Using the
default value if user uses External I/O box.
5. Click OK to save the setting.
6. To add more than one external I/O box, click Add and follow the above step 2~4.
7. In External I/O box setup dialog, user will see all added External I/O. Click added External I/O
box and click Add to scan the connected relays and sensors.
8. In Add Module windows, click Scan to scan the connected relays and sensors on the
External I/O box.
