121
setup click Detail (see also To Setup Alarm SOP ).
- Send to CMS (Central Management System)
Enable/disable the selected camera to send video to CMS when the alarm is activated
(see also
To Setup CMS Setting )

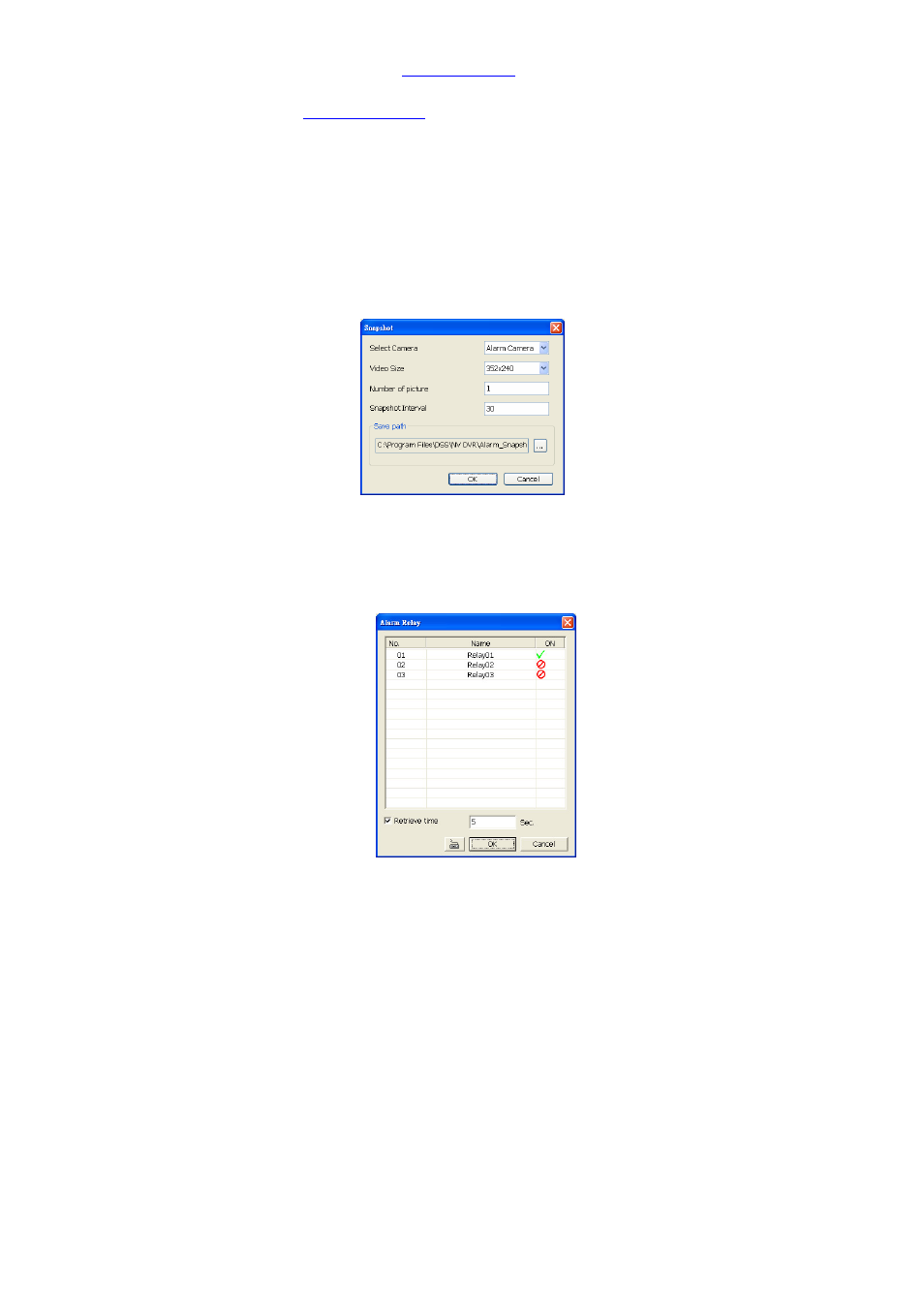

- Snapshot
Take a snapshot when the alarm is activated.
a.
Select Camera: specify which channel video to be snapshot when the alarm is
occurred.
- Alarm Camera: when a channel has an alarm occurred, and then, the DVR
system will snapshot the channel video.
- Camera # (1~32): the selected channel would be snapshot when an alarm is
occurred.
b. Video Size: select the size of snapshot picture.
c. Number of picture: the number of picture that is going to be taken.
d. Snapshot Interval: a time gap for next snapshot
e. Save Path: a storage path for saving snapshot pictures.
To Setup Alarm Relay:
1. Beside the Relay Output check box, click Detail.
2. In the Alarm Relay dialog box, select from the available relay list and in the ON column,
set to enable/disable the relay operation when the alarm is activated. In the Retrieve
time check box, you may enable/disable to extend the relay operation time and set the
duration in second.
3. Click OK to exit and accept the setting and Cancel to exit without saving the setting.
