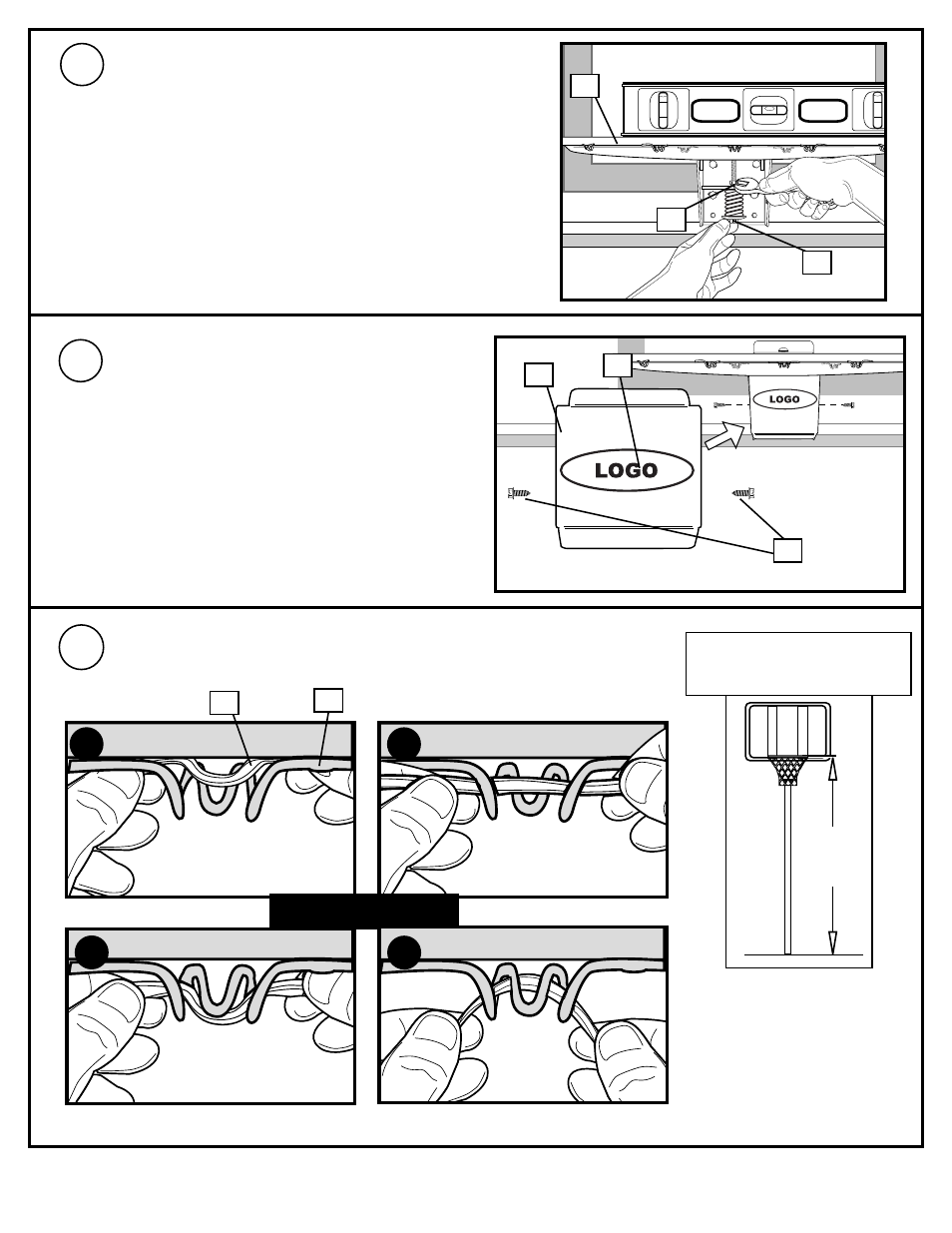

Apply logo label (33) to cover plate (31). Install
cover plate (31) on rim (25) using self tapping
screws (32) as shown.
LEVELING INSTRUCTIONS:
Place level on rim (25) and adjust nut (42) until
level. Tighten nut (30) to set rim tension for
playing.
Secure net (34) to
rim (25).
1 2
3
34 25
NOTE ORIENTATION OF COVER PLATE
OUTSIDE VIEW
4
32
31
33
42
25
30
10 feet
(3.05 m)
NOTE: Official rim height is
10’ (3.05 m) from top of rim
to playing surface.
