15
“Character Off” Button (BKM-16R)
To facilitate parameter adjustments, the On-Screen
Menu indication can be taken off the screen, while the
Menu mode is still active. The On-Screen Menu
indication can be toggled on or off simply by the press
of a button on the BKM-16R front panel.
Color Temperature Selection
The Color Temperature can be selected from D65, D93,
D61, D56, D-Cine*, or User1 to User5. A “Color Temp”
(Color Temperature) button located on the BKM-16R
front panel enables instant access to the “Color Temp
menu” without using the On-Screen menu.
* D-Cine: x=0.314, y=0.351
Aspect Switch
The aspect ratio can be switched
between 4:3, 16:9, 2.39: 1, and 1.869:1
depending on the input signal.
Auto White Balance
The color temperature and white balance of the
BVM-L230 monitor can be automatically adjusted by
the Auto White Balance function using the specified
color temperature probes*, such as the Konica Minolta
CA-210, DK-Technologies PM5639/06, and X-Rite
Eye-One Pro.
* A connector is required for each color analyzer.
Auto Chroma/Phase Adjustment*
An Auto Chroma/Phase/Matrix setup function is
provided on the BVM-L230, which automatically adjusts
the monitor’s chroma, phase, and matrix using external
color bars.
* Only analog signal input is supported.
Internal Test Signal and
SMPTE Color Bars
The BVM-L230 incorporates a built-in test signal
generator for a 100% white signal, 20% gray signal, 0%
black signal, PLUGE (Picture Line Up Generating
Equipment) signal, color-bar signals, 5-step grayscale
signal, and ramp signal.
Easy Setup and Adjustment
4:3 16:9
16:9 2.39:1
2.39:1 1.869:1
Other Features
■ VESA™ Mounting (200 x 100 mm pitch)
■ Blue Only
■ Mono
■ H Delay/V Delay
■ NTSC Setup Level (0%, 7.5%)
■ Component Level (SMPTE/EBU-N10 or Betacam)
■ Aperture
■ Serial Remote (Ethernet)
■ Parallel Remote (D-sub 9-pin)
■ Tally Lamp (Amber)
■ EXT Sync (for RGB/YUV)

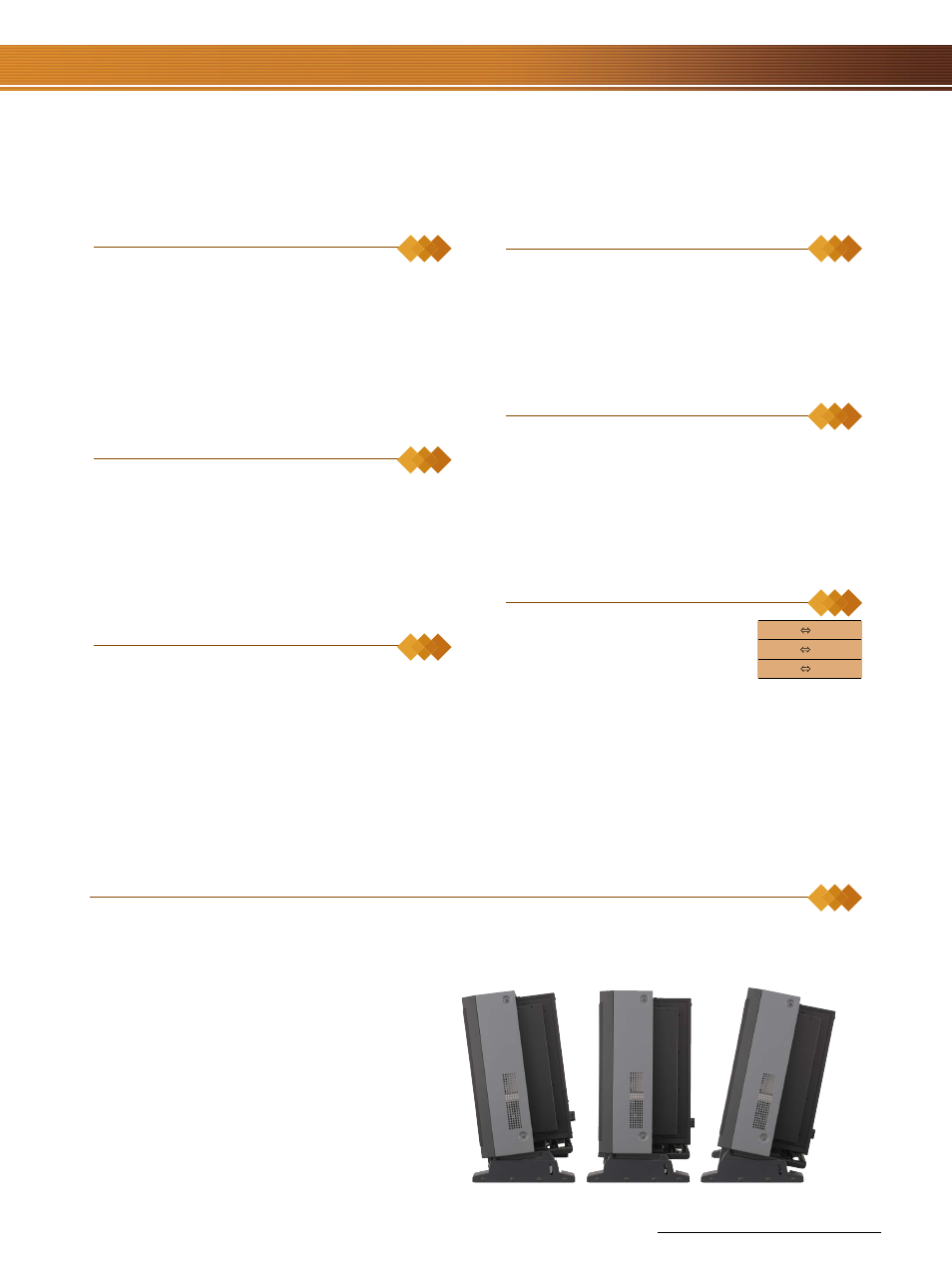

■ Remote Maintenance 5 ° Tilt Forward 10 ° Tilt Backward
