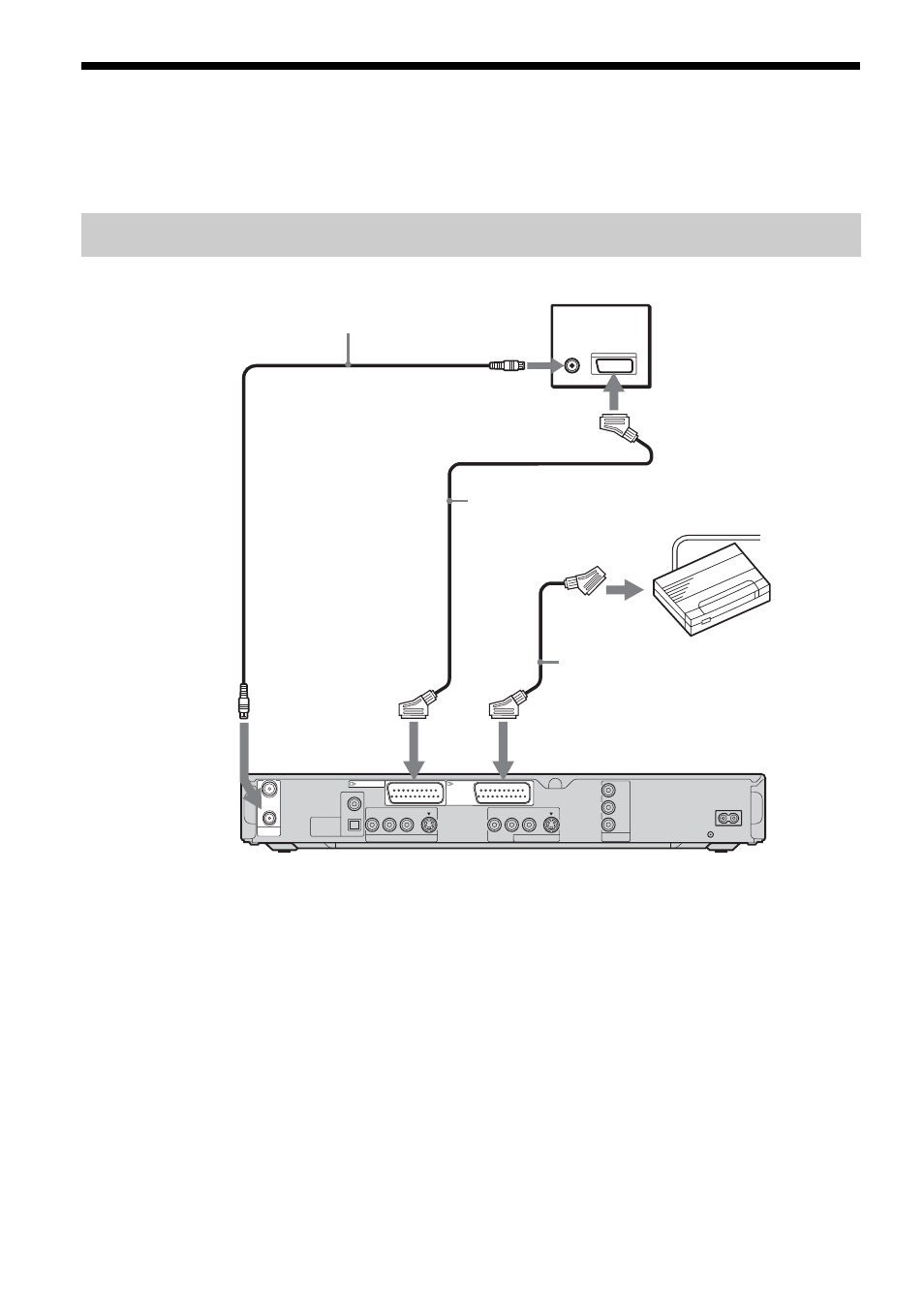

Connecting a PAY-TV/Canal Plus Decoder
You can watch or record PAY-TV/Canal Plus programmes if you connect a decoder (not supplied) to the
recorder. Disconnect the recorder’s mains lead from the mains when connecting the decoder.
Connecting a decoder
AERIAL
IN
LINE 4 IN
DIGITAL OUT
COAXIAL
OPTICAL
PCM/DTS/MPEG/
DOLBY DIGITAL COMPONENT
VIDEO OUT
VIDEO S VIDEO R-AUDIO-L P B / C B
Y
P R / C R ~ AC IN
OUT
LINE 2 OUT
VIDEO S VIDEO R-AUDIO-L
LINE 3
/DECODER
LINE 1 - TV
TV
Aerial cable
(supplied)
SCART cord
(not supplied)
PAY-TV/Canal Plus
decoder
to AERIAL OUT
to i LINE 3/DECODER
DVD recorder
to AERIAL IN
to SCART input
SCART cord (not supplied)
to i LINE 1 – TV
