109
Addi
tion
al
I
n
fo
rm
at
io
n

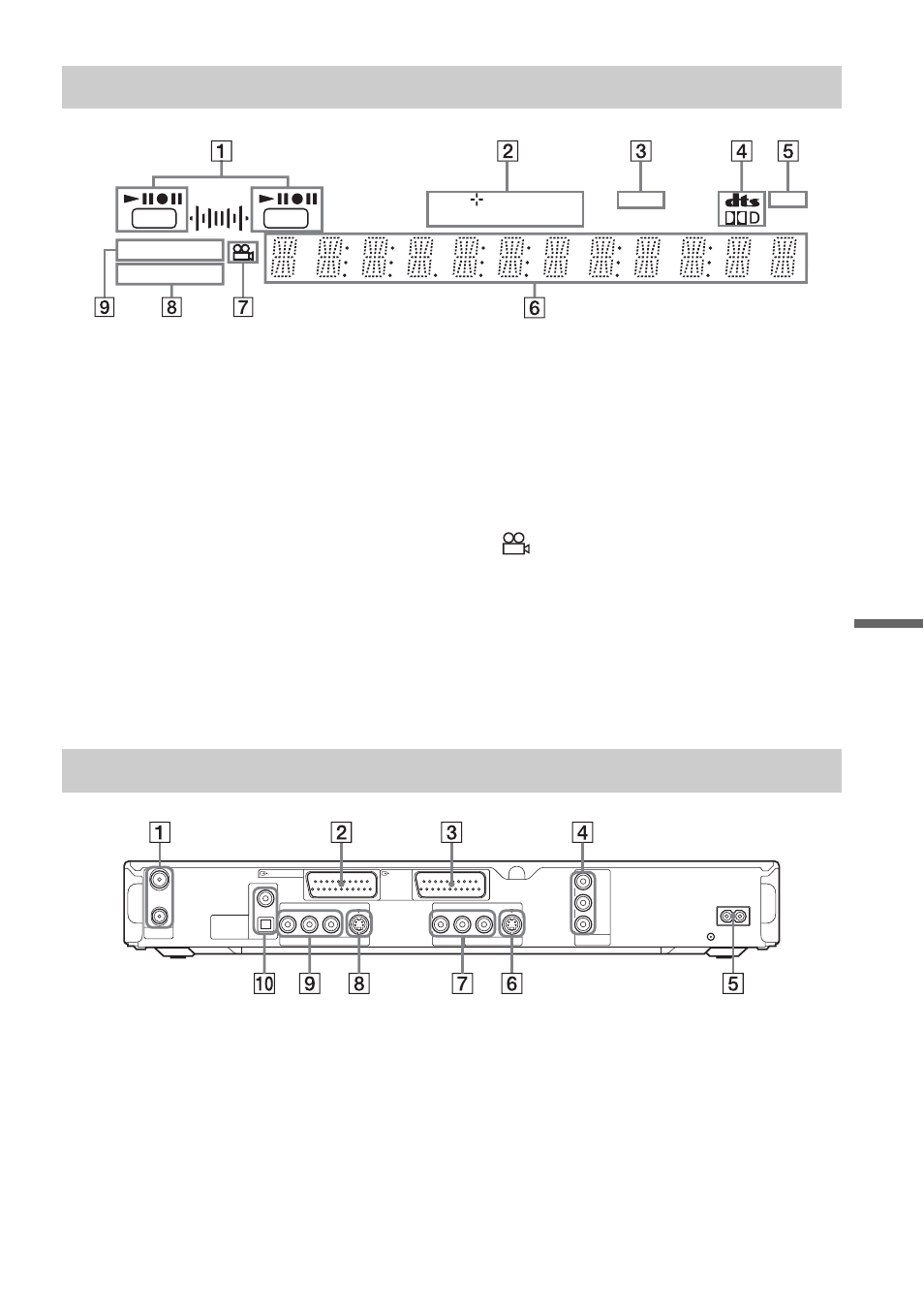

A HDD/DVD indicators
Displays the selected media and the
playing/recording/dubbing status.
B Disc type*/recording format
C NICAM indicator (42)
D Audio signal indicators (34)
E TV indicator (31)
F Displays the following (35):
• Playing time/remaining time
• Current title/chapter/track/index number
• Recording time/recording mode
• Clock
• Programme position
• TV Direct Rec indication
(31) : “TV”
appears in the right most two digits.
G
(angle) indicator (55)
H SMARTLINK indicator (14)
I PROGRESSIVE indicator (16)
* Displays DATA CDs as “CD.”
z Hint
You can turn off the front panel display when the recorder is turned off by setting “Dimmer” to “Power Save” in
“Options” setup (page 94).
A AERIAL IN/OUT jacks (13)
B LINE 1 – TV jack (14)
C LINE 3/DECODER jack (23)
D COMPONENT VIDEO OUT (Y, P
B
/C
B
,
P
R
/C
R
) jacks (14)
E AC IN terminal (18)
F LINE 2 OUT (S VIDEO) jack (14)
G LINE 2 OUT (R-AUDIO-L/VIDEO) jacks
(14, 17)
H LINE 4 IN (S VIDEO) jack (24)
I LINE 4 IN (R-AUDIO-L/VIDEO) jacks
(24)
J DIGITAL OUT (COAXIAL/OPTICAL)
jacks (17)
Front panel display
HDD DVD
DVD RW VCD NICAM TV
VR
PROGRESSIVE
SMARTLINK
Rear panel
AERIAL
IN
LINE 4 IN
DIGITAL OUT
COAXIAL
OPTICAL
PCM/DTS/MPEG/
DOLBY DIGITAL COMPONENT
VIDEO OUT
VIDEO S VIDEO R-AUDIO-L
LINE 2 OUT
VIDEO S VIDEO R-AUDIO-L
P B / C B
Y
P R / C R ~ AC IN
OUT
LINE 1 - TV LINE 3
/DECODER
